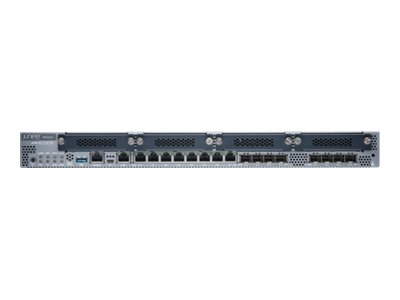

Juniper SRX345-DC-TAA
SRX345 (Hardware Only, require SRX345-JSB or SRX345-JSE to complete the System) with 16GE (w 8x SFP), 4G RAM, 8G Flash and 4x MPIM slots. Includes internal single DC power supply, cable and RMK. TAA Compliant
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
SRX345 (Hardware Only, require SRX345-JSB or SRX345-JSE to complete the System) with 16GE (w 8x SFP), 4G RAM, 8G Flash and 4x MPIM slots. Includes internal single DC power supply, cable and RMK. TAA Compliant
| Airflow Direction: | Front to back airflow |
|---|---|
| Authentication Method: | Secure Shell (SSH), X.509 certificates |
| Capacity: | IPv4 routing table entries: 1000000 ¦ IPv6 routing table entries: 600000 ¦ Concurrent sessions: 375000 ¦ Security policies: 4000 ¦ New connections per second: 15000 ¦ Maximum number of NAT rules: 2000 ¦ MAC addresses: 15000 ¦ IPSec VPN tunnels: 2048 ¦ Max |
| Compliant Standards: | FCC Class A certified, RoHS2 |
| Compliant Standards: | IEEE 802.1p, IEEE 802.1x |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, MLFR |
| Depth: | 37 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | DES, Triple DES, MD5, IKE, SSL, SHA-1, PKI, 256-bit AES, IKEv2, 256-bit SHA |
| Expansion Slots: | 4 (total) / 4 (free) x expansion slot |
| Features: | Firewall protection, NAT support, VPN support, PAT support, IPv6 support, Intrusion Prevention System (IPS), URL filtering, DDos attack prevention, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol |
| Flash Memory: | 8 GB |
| Form Factor: | Rack-mountable |
| Hard Drive: | SSD |
| Height: | 4.36 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | Rack mount kit |
| Installed Qty: | 1 |
| Interfaces: | 8 x 1000Base-T - RJ-45 ¦ 8 x 1000Base-X - SFP (mini-GBIC) ¦ 1 x console - RJ-45 ¦ 1 x mini-USB ¦ 1 x USB 2.0 - Type A ¦ 1 x management - RJ-45 |
| MTBF: | 27.4 years |
| Manufacturer: | Juniper HPE |
| Max Operating Temperature: | 40 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | RSVP, IPSec, PPPoE, DHCP, DNS, DDNS |
| OS Provided: | JUNOS |
| Performance: | Firewall throughput (64-byte packet size): 750 Kpps ¦ Firewall throughput (IMIX): 2.3 Gbps ¦ Firewall throughput (1518-byte packet size): 5.5 Gbps ¦ VPN throughput (IMIX IPSec): 300 Mbps ¦ Firewall throughput (64-byte UDP): 550 Kpps ¦ Firewall throughput |
| Ports Qty: | 16 |
| Power Consumption Operational: | 122 Watt |
| Power Device: | Internal power supply |
| Power Redundancy: | Yes |
| RAM: | 4 GB |
| Remote Management Protocol: | SNMP, Telnet, HTTP, SSH, CLI |
| Routing Protocol: | OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, DVMRP, VRRP, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, MSDP, ECMP, MPLS |
| Software Included: | Junos Software Enhanced |
| TAA Compliant: | Yes |
| Version: | original |
| VoIP Protocols: | SDP |
| Weight: | 4.9 kg |
| Width: | 44.09 cm |
| GPSR - economic actor: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
|---|---|
| GPSR - product manufacturer: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
| GPSR - EU responsible person: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
| Warnings: | Warnings Gateways International.pdf |
| Safety instructions: | Safety instructions Gateways International.pdf |
SRX345 (Hardware Only, require SRX345-JSB or SRX345-JSE to complete the System) with 16GE (w 8x SFP), 4G RAM, 8G Flash and 4x MPIM slots. Includes internal single DC power supply, cable and RMK. TAA Compliant
| Airflow Direction: | Front to back airflow |
|---|---|
| Authentication Method: | Secure Shell (SSH), X.509 certificates |
| Capacity: | IPv4 routing table entries: 1000000 ¦ IPv6 routing table entries: 600000 ¦ Concurrent sessions: 375000 ¦ Security policies: 4000 ¦ New connections per second: 15000 ¦ Maximum number of NAT rules: 2000 ¦ MAC addresses: 15000 ¦ IPSec VPN tunnels: 2048 ¦ Max |
| Compliant Standards: | FCC Class A certified, RoHS2 |
| Compliant Standards: | IEEE 802.1p, IEEE 802.1x |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, MLFR |
| Depth: | 37 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | DES, Triple DES, MD5, IKE, SSL, SHA-1, PKI, 256-bit AES, IKEv2, 256-bit SHA |
| Expansion Slots: | 4 (total) / 4 (free) x expansion slot |
| Features: | Firewall protection, NAT support, VPN support, PAT support, IPv6 support, Intrusion Prevention System (IPS), URL filtering, DDos attack prevention, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol |
| Flash Memory: | 8 GB |
| Form Factor: | Rack-mountable |
| Hard Drive: | SSD |
| Height: | 4.36 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | Rack mount kit |
| Installed Qty: | 1 |
| Interfaces: | 8 x 1000Base-T - RJ-45 ¦ 8 x 1000Base-X - SFP (mini-GBIC) ¦ 1 x console - RJ-45 ¦ 1 x mini-USB ¦ 1 x USB 2.0 - Type A ¦ 1 x management - RJ-45 |
| MTBF: | 27.4 years |
| Manufacturer: | Juniper HPE |
| Max Operating Temperature: | 40 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | RSVP, IPSec, PPPoE, DHCP, DNS, DDNS |
| OS Provided: | JUNOS |
| Performance: | Firewall throughput (64-byte packet size): 750 Kpps ¦ Firewall throughput (IMIX): 2.3 Gbps ¦ Firewall throughput (1518-byte packet size): 5.5 Gbps ¦ VPN throughput (IMIX IPSec): 300 Mbps ¦ Firewall throughput (64-byte UDP): 550 Kpps ¦ Firewall throughput |
| Ports Qty: | 16 |
| Power Consumption Operational: | 122 Watt |
| Power Device: | Internal power supply |
| Power Redundancy: | Yes |
| RAM: | 4 GB |
| Remote Management Protocol: | SNMP, Telnet, HTTP, SSH, CLI |
| Routing Protocol: | OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, DVMRP, VRRP, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, MSDP, ECMP, MPLS |
| Software Included: | Junos Software Enhanced |
| TAA Compliant: | Yes |
| Version: | original |
| VoIP Protocols: | SDP |
| Weight: | 4.9 kg |
| Width: | 44.09 cm |
| GPSR - economic actor: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
|---|---|
| GPSR - product manufacturer: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
| GPSR - EU responsible person: | Juniper Networks GmbH, Deutschland, Oskar-Schlemmer-Str. 15, München, 80807, info @ juniper.net |
