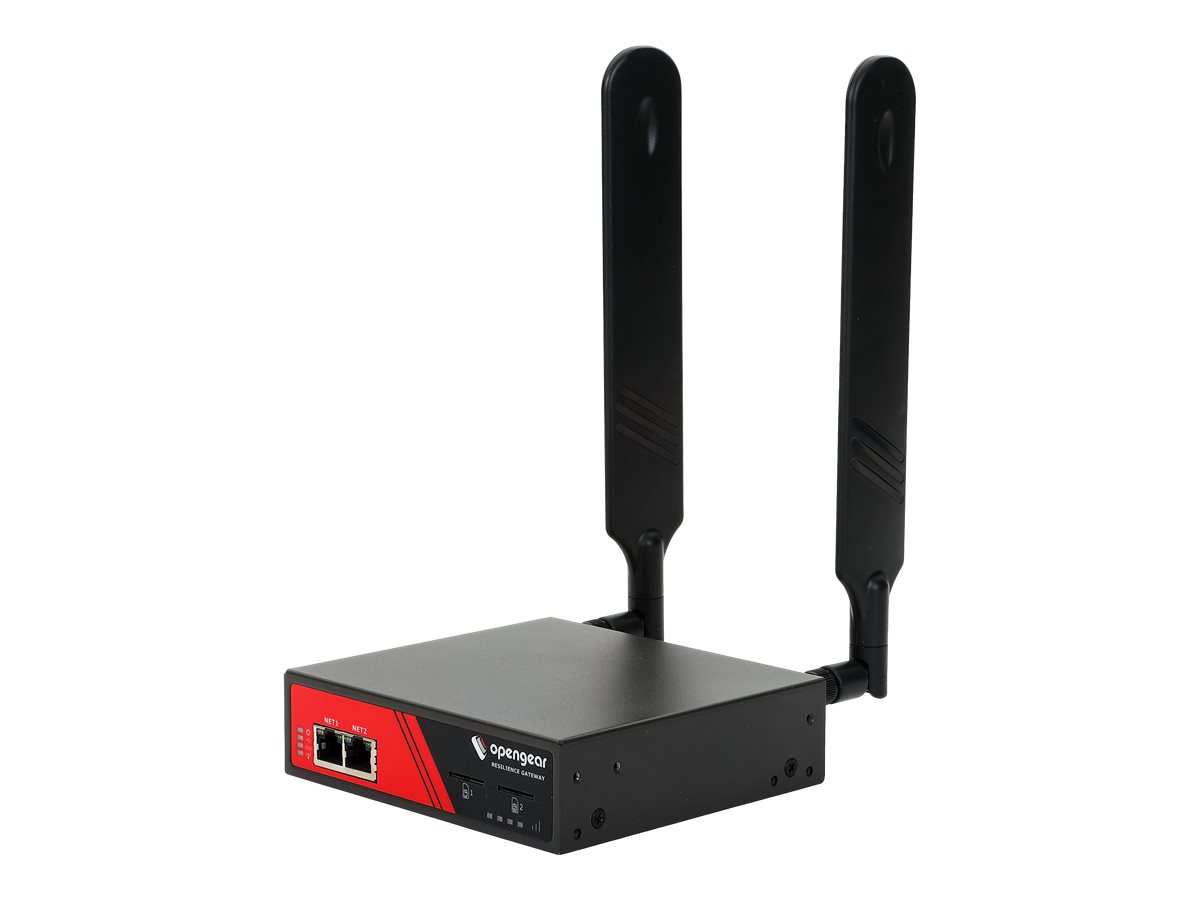

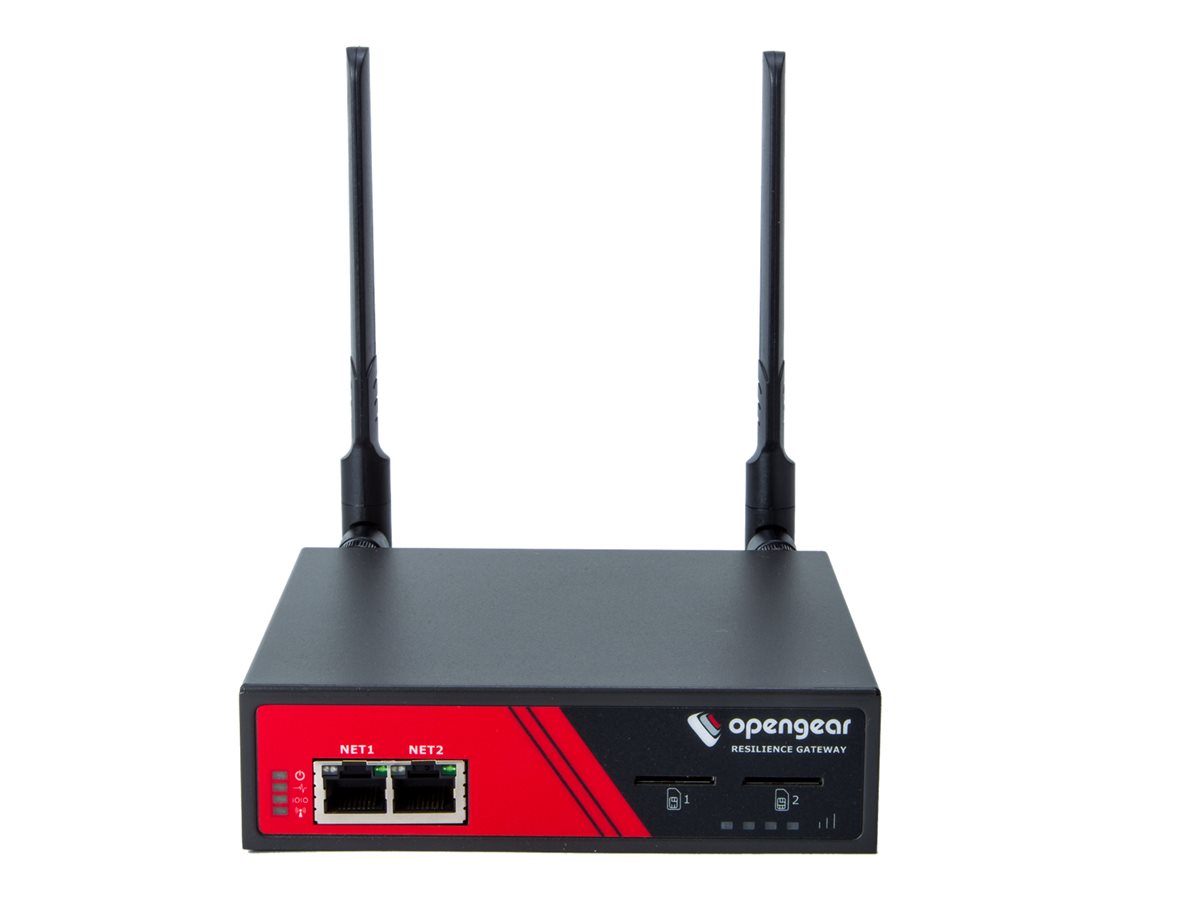

Resilience Gateway ACM7004-2-L - 4 serial Cisco Straight pinout, ext power, Dual 1 GbE Ethernet, Global 4G LTE-A Pro cellular, 2 DIO and 2 output ports
| Aerial: | External detachable |
|---|---|
| Antenna Qty: | 2 |
| Authentication Method: | Kerberos, RADIUS, CHAP, TACACS+, Secure Shell v.2 (SSH2), LDAP, Active Directory |
| Built-in Devices: | Led panel |
| Compliant Standards: | TUV, C-Tick, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, UL 1950, R&TTE, RoHS, FIPS 140-2, FCC Part 15 B Class A, PTCRB, ICES-003 issue 4 Class A, AS/NZS CISPR22:2004 Class A, EN55022:1998 + A1:2000 + A2:2003 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Depth: | 12 cm |
| Device Type: | Console server |
| Encryption Algorithm: | AES, SSL, FIPS 140-2 |
| Features: | VPN support, LDAP support, Syslog support, IP address filtering, DHCPserver, FTP server, temperature sensor, port forwarding, TFTP server, water / smoke / motion sensors support, 4KV ESD Protector, Cisco straight pinout |
| Flash Memory: | 4 GB |
| Form Factor: | External |
| Height: | 3.5 cm |
| Humidity Range Operating: | 5 - 90% |
| Interfaces: | 4 x RS-232 - RJ-45 ¦ 2 x 100Base-TX - RJ-45 ¦ 4 x USB 2.0 - Type A ¦ 3 x aerial - SMA |
| MTBF: | 100,000 years |
| Manufacturer: | Opengear |
| Max Operating Temperature: | 60 °C |
| Max Supported Qty: | 1 |
| Min Operating Temperature: | -25 °C |
| Mobile Broadband Access: | Yes |
| Mobile Communication Protocol: | LTE Advanced Pro |
| Network / Transport Protocol: | NTP, IPSec, FTP, DHCP, DDNS |
| Power Consumption Operational: | 11.5 Watt |
| Power Device: | External power adapter |
| Processors Installed: | 1 x ARM 800 MHz |
| RAM: | 256 MB DDR3 SDRAM |
| Remote Management Protocol: | SNMP, HTTPS, TFTP, SSH |
| Switching Protocol: | Ethernet |
| TAA Compliant: | Yes |
| Version: | original |
| Voltage Required: | AC 120/230 V |
| Weight: | 600 g |
| Width: | 13 cm |
| GPSR - economic actor: | Digi International, Deutschland, Lise-Meitner-Straße 9, Ismaning, 85737, emea@opengear.com |
|---|---|
| GPSR - product manufacturer: | Digi International, Deutschland, Lise-Meitner-Straße 9, Ismaning, 85737, emea@opengear.com |
| GPSR - EU responsible person: | Digi International, Deutschland, Lise-Meitner-Straße 9, Ismaning, 85737, emea@opengear.com |
| EU Data-Act-Url: | https://de.digi.com/legal |
| Warnings: | Warnings Gateways International.pdf |
| Safety instructions: | Safety instructions Gateways International.pdf |
