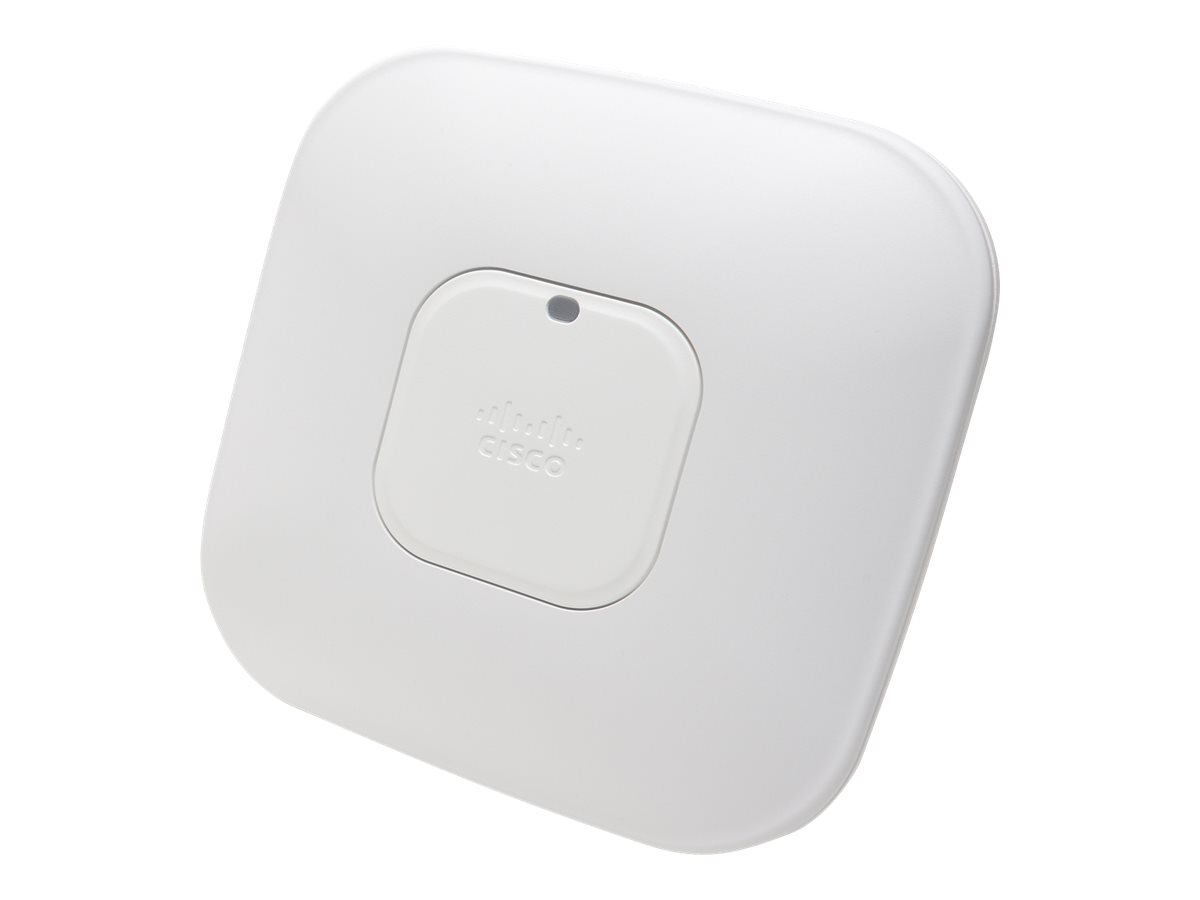

Cisco AIR-CAP3602I-A-K9
802.11n CAP w/CleanAir, 4x4:3SS, Mod, Int Ant, A Reg Domain
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
802.11n CAP w/CleanAir, 4x4:3SS, Mod, Int Ant, A Reg Domain
| Antenna: | Internal |
|---|---|
| Authentication Method: | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST |
| Compliant Standards: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11n |
| Compliant Standards: | VCCI, ICES-003, FCC Part 15.247, RSS-210, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, EN 60601-1-2, ARIB STD-T66, ARIB STD-T71, EN50155, EN 300 328, EN 301 489-1, EN 301 893, CAN/CSA-C22.2 No. |
| Connectivity Technology: | Wireless |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Data Transfer Rate: | 450 Mbps |
| Depth: | 22.1 cm |
| Device Type: | Radio access point |
| Directivity: | Omni-directional |
| Encryption Algorithm: | AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2 |
| Features: | Auto-sensing per device, power over Ethernet (PoE), Wi-Fi Multimedia (WMM) support, CleanAir technology, Maximum Ratio Combining (MRC), 4T4R MIMO technology |
| Flash Memory: | 32 MB |
| Form Factor: | External |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Height: | 4.7 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Important product information: | Controller-based. Requires additional controller for management. A software exchange from CAP to SAP is possible. |
| Interfaces: | 1 x 1000Base-T - RJ-45 ¦ 1 x management - RJ-45 |
| Line Coding Format: | CCK |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Mounting Kit: | Included |
| Power Over Ethernet (PoE) Supported: | PoE |
| RAM: | 128 MB |
| Status Indicators: | Status |
| Version: | original |
| Weight: | 1.04 kg |
| Width: | 22.1 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Accesspoints International.pdf |
| Safety instructions: | Safety instructions Accesspoints International.pdf |
Important product information
Controller-based. Requires additional controller for management. A software exchange from CAP to SAP is possible.
802.11n CAP w/CleanAir, 4x4:3SS, Mod, Int Ant, A Reg Domain
| Antenna: | Internal |
|---|---|
| Authentication Method: | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST |
| Compliant Standards: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11n |
| Compliant Standards: | VCCI, ICES-003, FCC Part 15.247, RSS-210, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, EN 60601-1-2, ARIB STD-T66, ARIB STD-T71, EN50155, EN 300 328, EN 301 489-1, EN 301 893, CAN/CSA-C22.2 No. |
| Connectivity Technology: | Wireless |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Data Transfer Rate: | 450 Mbps |
| Depth: | 22.1 cm |
| Device Type: | Radio access point |
| Directivity: | Omni-directional |
| Encryption Algorithm: | AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2 |
| Features: | Auto-sensing per device, power over Ethernet (PoE), Wi-Fi Multimedia (WMM) support, CleanAir technology, Maximum Ratio Combining (MRC), 4T4R MIMO technology |
| Flash Memory: | 32 MB |
| Form Factor: | External |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Height: | 4.7 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Important product information: | Controller-based. Requires additional controller for management. A software exchange from CAP to SAP is possible. |
| Interfaces: | 1 x 1000Base-T - RJ-45 ¦ 1 x management - RJ-45 |
| Line Coding Format: | CCK |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Mounting Kit: | Included |
| Power Over Ethernet (PoE) Supported: | PoE |
| RAM: | 128 MB |
| Status Indicators: | Status |
| Version: | original |
| Weight: | 1.04 kg |
| Width: | 22.1 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
