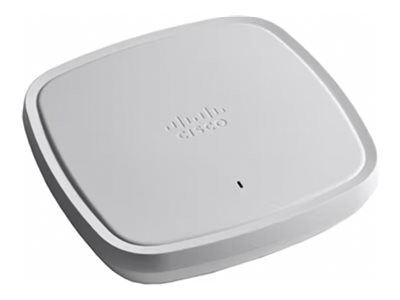

Cisco C9130AXE-B
Cisco Catalyst 9130AXE - Wireless access point - GigE, 5 GigE, 2.5 GigE - Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Cisco Catalyst 9130AXE - Wireless access point - GigE, 5 GigE, 2.5 GigE - Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz
| Antenna: | External |
|---|---|
| Authentication Method: | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM |
| Communications Technology: | Bluetooth Low Energy (LE), Zigbee |
| Compliant Standards: | CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, FCC Part 15.247, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15.407, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, EN 62209-1, SRRC, EN 50385, EN 62209-2 |
| Compliant Standards: | IEEE 802.3, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.15.4, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3b |
| Connectivity Technology: | Wireless |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) |
| Depth: | 23.3 cm |
| Device Type: | Radio access point |
| Encryption Algorithm: | AES, TLS, PEAP, TTLS, WPA2, EAP-SIM, WPA3, EAP-FAST |
| Features: | LLDP support, Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), 802.1x authentication, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Dynamic Frequency Selection (DFS), sec |
| Flash Memory: | 1 GB |
| Form Factor: | External |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Height: | 4 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | Low profile bracket, ceiling grid clip |
| Interfaces: | 1 x 1/2.5/5GBase-T (UPOE) - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB 2.0 ¦ Aerial - RF |
| Internet of Things (IoT) Compatible: | Yes |
| Line Coding Format: | OFDMA |
| Localisation: | United States |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 50 °C |
| Min Operating Temperature: | -20 °C |
| Power Over Ethernet (PoE) Supported: | UPOE |
| RAM: | 2 GB |
| Ruggedized Design: | Indoor |
| Spread Spectrum Method: | OFDMA |
| Status Indicators: | Status |
| Version: | original |
| Weight: | 1.71 kg |
| Width: | 23.3 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Accesspoints International.pdf |
| Safety instructions: | Safety instructions Accesspoints International.pdf |
