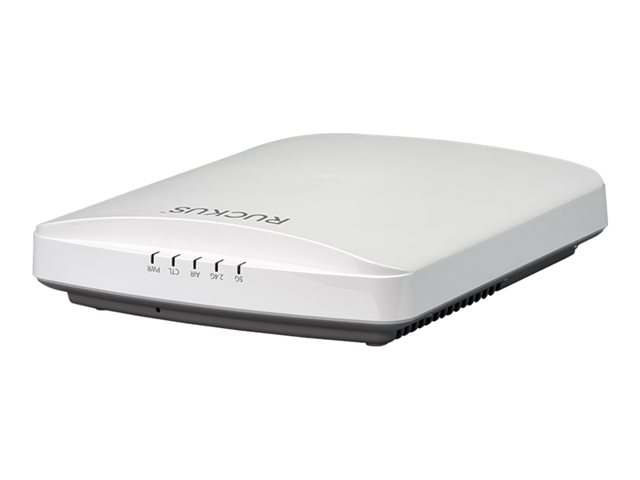

CommScope Ruckus 901-R650-US00
Ruckus R650 - Wireless access point - ZigBee - Wi-Fi 6 - 2.4 GHz, 5 GHz
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Ruckus R650 - Wireless access point - ZigBee - Wi-Fi 6 - 2.4 GHz, 5 GHz
| Antenna: | Internal |
|---|---|
| Authentication Method: | RADIUS |
| Capacity: | Maximum number of configured SSIDs: 31 ¦ Maximum number of clients: 512 |
| Communications Technology: | Bluetooth Low Energy (LE), Zigbee |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax |
| Compliant Standards: | EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, UL 2043, RoHS, EN 60950-1, WEEE, EN 60601-1-2, EN 62311, EN 50121-4, IEC 61373, EN 50121-1, ISTA 2A |
| Connectivity Technology: | Wireless |
| Data Link Protocol: | Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Data Transfer Rate: | 2.5 Gbps |
| Depth: | 22.4 cm |
| Device Type: | Radio access point |
| Encryption Algorithm: | TKIP, WPA, WPA-PSK, WPA3 |
| Features: | VLAN support, WISP mode, Wireless Intrusion Detection System (WIDS), Access Control List (ACL) support, Low Density Parity Check (LDPC), Wireless Intrusion Prevention System (WIPS), Captive Portal, BeamFlex+ Smart Antenna Technology, Smart QoS, Airtime Fa |
| Form Factor: | External |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Gain Level: | 3 dBi |
| Height: | 4.7 cm |
| Humidity Range Operating: | 0 - 95% (non-condensing) |
| Interfaces: | 1 x 2.5 GBase-T (PoE+) - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A |
| Internet of Things (IoT) Compatible: | Yes |
| Manufacturer: | Ruckus CommScope |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Power Consumption Operational: | 21.59 Watt |
| Power Over Ethernet (PoE) Supported: | PoE+ |
| Version: | original |
| Weight: | 854 g |
| Width: | 19.4 cm |
| GPSR - economic actor: | CommScope Technologies Germany GmbH, Deutschland, Centroallee 263, Oberhausen, 46047, NewSuppliers @ commscope.com |
|---|---|
| GPSR - product manufacturer: | CommScope Technologies Germany GmbH, Deutschland, Centroallee 263, Oberhausen, 46047, NewSuppliers @ commscope.com |
| GPSR - EU responsible person: | CommScope Technologies Germany GmbH, Deutschland, Centroallee 263, Oberhausen, 46047, NewSuppliers @ commscope.com |
| Warnings: | Warnings Accesspoints International.pdf |
| Safety instructions: | Safety instructions Accesspoints International.pdf |
