CommScope Ruckus 9U1-T350-WW20
Ruckus T350c Outdoor Access Point
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.

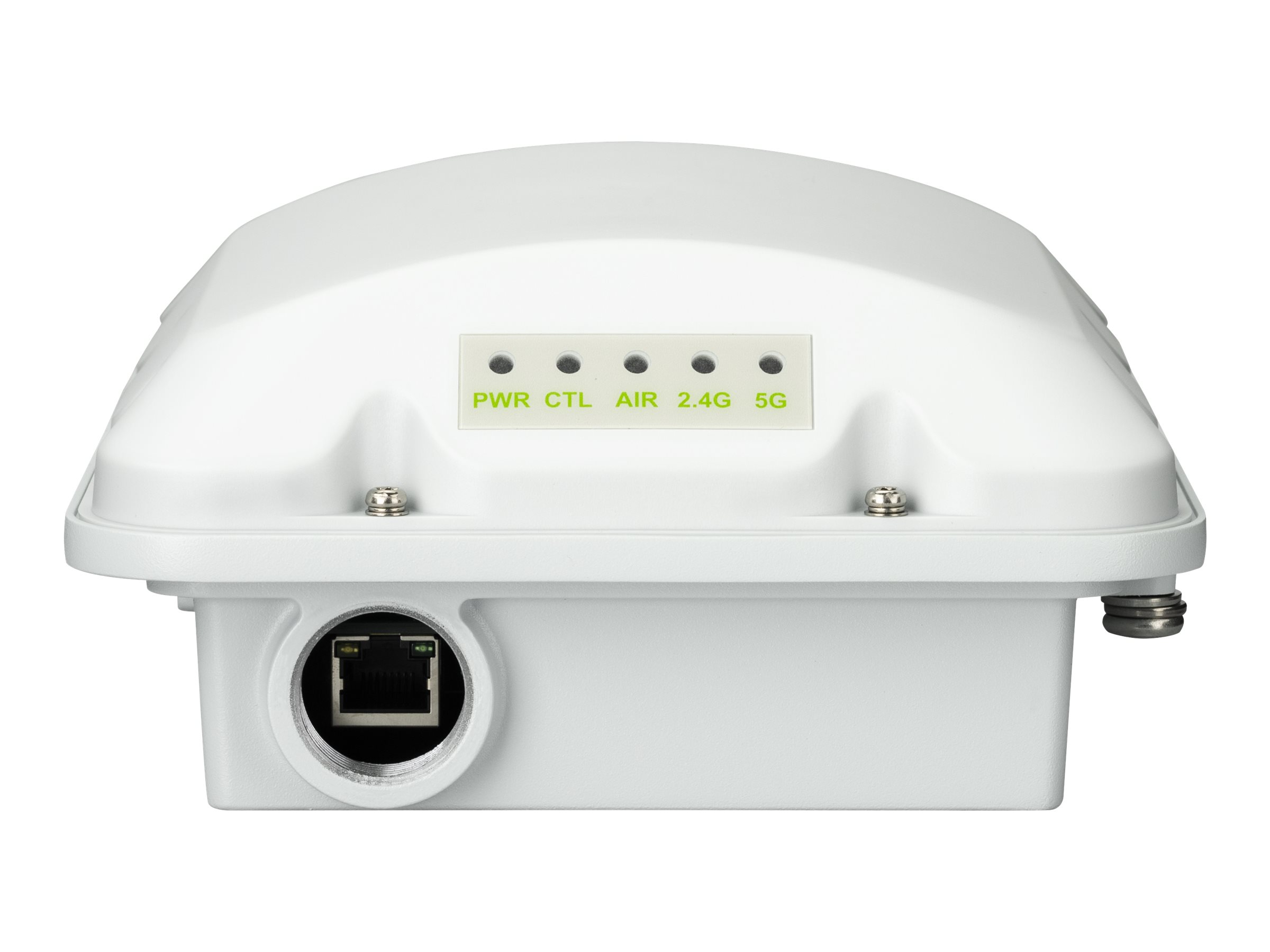

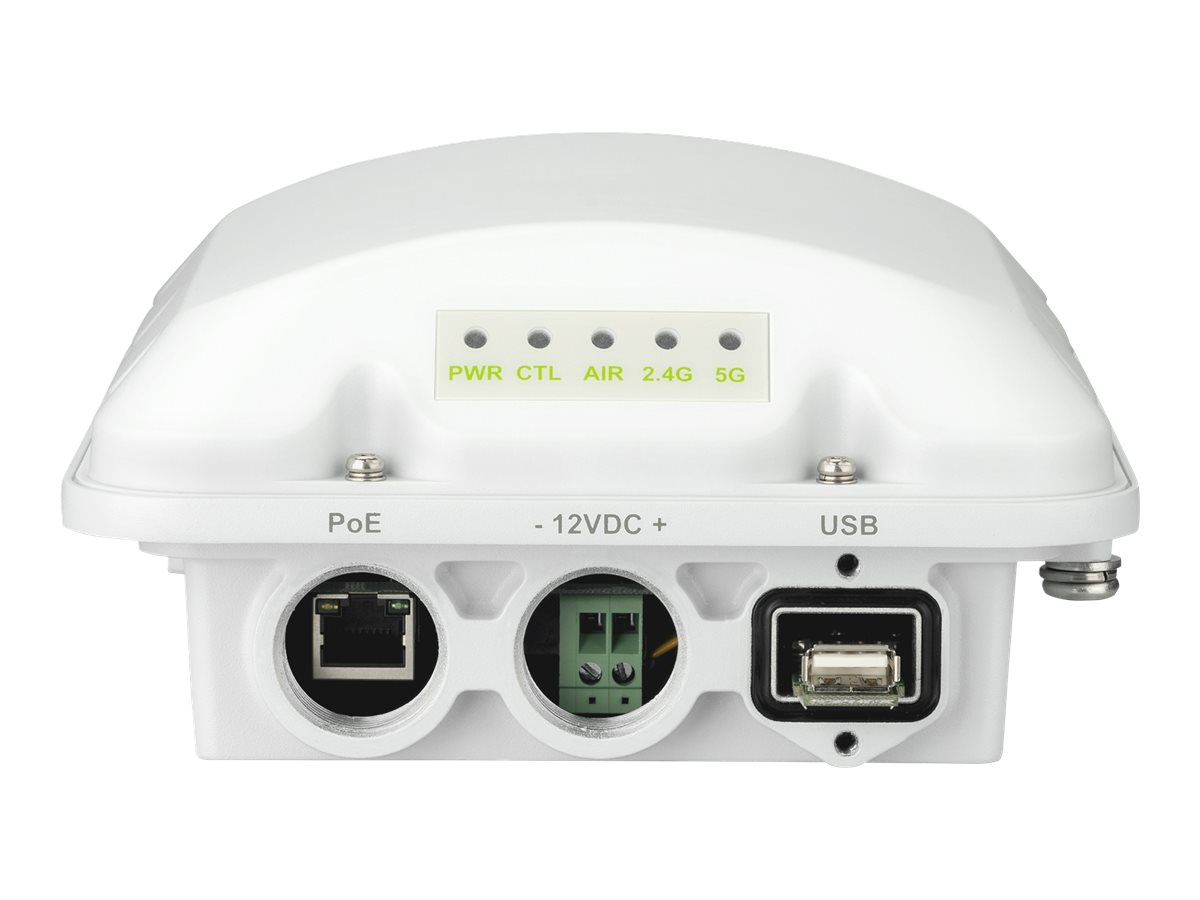

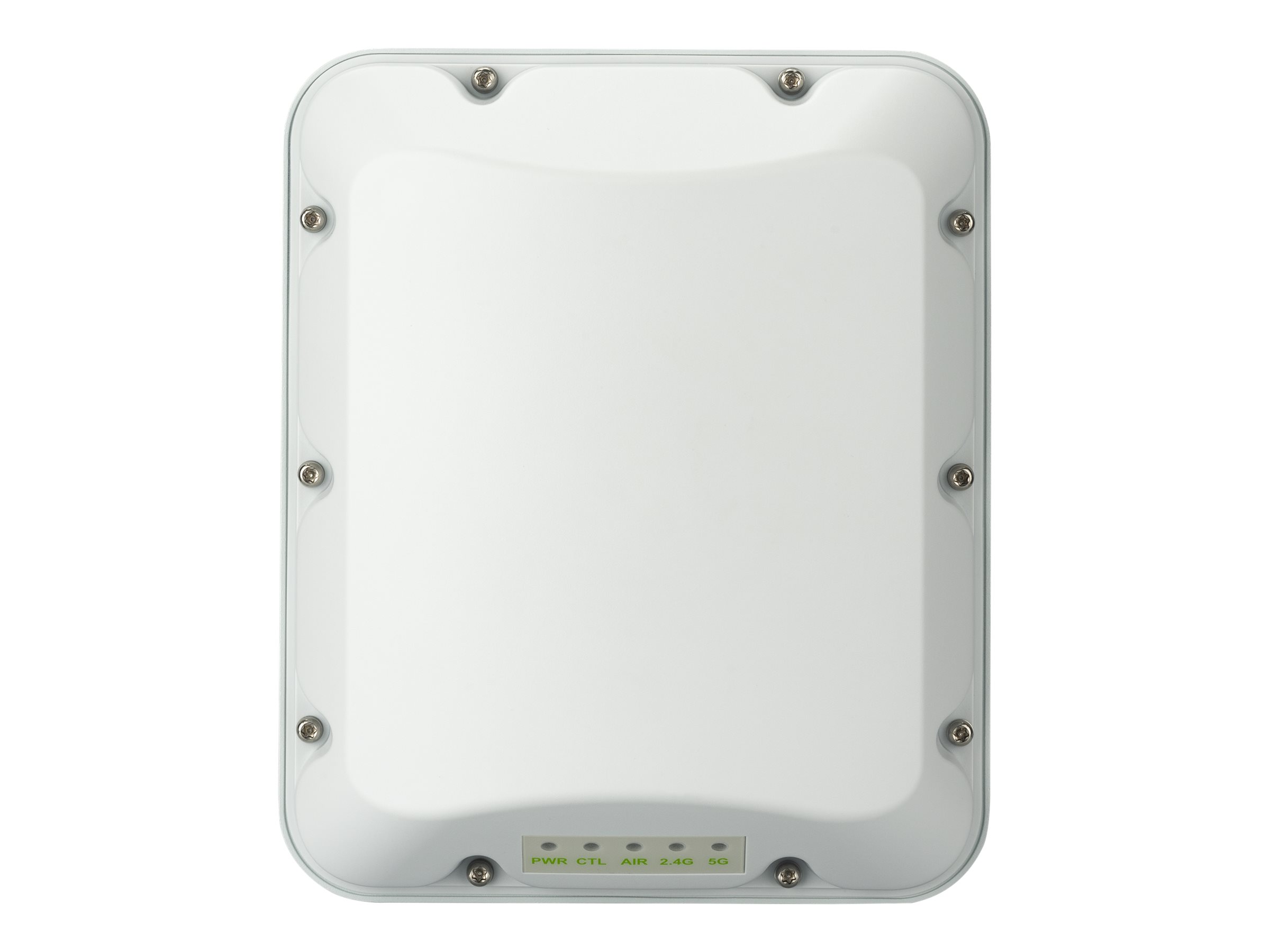

Ruckus T350c Outdoor Access Point
| Antenna: | Internal |
|---|---|
| Authentication Method: | RADIUS, Basic Service Set Identifier (BSSID) |
| Capacity: | Wireless clients: 512 ¦ Maximum number of configured SSIDs: 31 |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax |
| Compliant Standards: | EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, UL 2043, RoHS, EN 60950-1, WEEE, EN 60601-1-2, IP67, EN 62311, EN 50121-4, IEC 61373, EN 50121-1, ISTA 2A |
| Connectivity Technology: | Wireless |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Data Transfer Rate: | 1774 Mbps |
| Depth: | 19.49 cm |
| Device Type: | Radio access point |
| Directivity: | Omni-directional |
| Encryption Algorithm: | AES, TKIP, WPA, WPA-PSK, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, Opportunistic Wireless Encryption (OWE), WPA2-Personal |
| Features: | Load balancing, IPv6 support, wall mountable, Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, IPv4 support, Low Density Parity Check (LDPC), Space Time Blocking Code (STBC), GRE tunneling, Wireless Intrusion Prevention System ( |
| Form Factor: | Wall / pole / surface mountable |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Gain Level: | 3 dBi |
| Height: | 8.09 cm |
| Humidity Range Operating: | 0 - 95% (non-condensing) |
| Included Accessories: | Mounting brackets |
| Interfaces: | 1 x 1000Base-T (PoE) - RJ-45 |
| Localisation: | Worldwide |
| Manufacturer: | Ruckus CommScope |
| Max Operating Temperature: | 65 °C |
| Min Operating Temperature: | -20 °C |
| Network / Transport Protocol: | L2TP, IPv4, IPv6 |
| Performance: | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1200 Mbps |
| Power Consumption Operational: | 13.24 Watt |
| Power Over Ethernet (PoE) Supported: | PoE |
| Routing Protocol: | GRE |
| Ruggedized Design: | Outdoor |
| Version: | original |
| Weight: | 1.01 kg |
| Width: | 16.23 cm |
| GPSR - economic actor: | CommScope Technologies Germany GmbH, Deutschland, Centroallee 263, Oberhausen, 46047, NewSuppliers@commscope.com |
|---|---|
| GPSR - product manufacturer: | CommScope Technologies Germany GmbH, Deutschland, Centroallee 263, Oberhausen, 46047, NewSuppliers@commscope.com |
| GPSR - EU responsible person: | CommScope Technologies Germany GmbH, Deutschland, Centroallee 263, Oberhausen, 46047, NewSuppliers@commscope.com |
| EU Data-Act-Url: | https://www.commscope.com/corporate-responsibility-and-sustainability/supplier-responsibility/ |
| Warnings: | Warnings Accesspoints International.pdf |
| Safety instructions: | Safety instructions Accesspoints International.pdf |
Ruckus T350c Outdoor Access Point
| Antenna: | Internal |
|---|---|
| Authentication Method: | RADIUS, Basic Service Set Identifier (BSSID) |
| Capacity: | Wireless clients: 512 ¦ Maximum number of configured SSIDs: 31 |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax |
| Compliant Standards: | EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, UL 2043, RoHS, EN 60950-1, WEEE, EN 60601-1-2, IP67, EN 62311, EN 50121-4, IEC 61373, EN 50121-1, ISTA 2A |
| Connectivity Technology: | Wireless |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Data Transfer Rate: | 1774 Mbps |
| Depth: | 19.49 cm |
| Device Type: | Radio access point |
| Directivity: | Omni-directional |
| Encryption Algorithm: | AES, TKIP, WPA, WPA-PSK, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, Opportunistic Wireless Encryption (OWE), WPA2-Personal |
| Features: | Load balancing, IPv6 support, wall mountable, Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, IPv4 support, Low Density Parity Check (LDPC), Space Time Blocking Code (STBC), GRE tunneling, Wireless Intrusion Prevention System ( |
| Form Factor: | Wall / pole / surface mountable |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Gain Level: | 3 dBi |
| Height: | 8.09 cm |
| Humidity Range Operating: | 0 - 95% (non-condensing) |
| Included Accessories: | Mounting brackets |
| Interfaces: | 1 x 1000Base-T (PoE) - RJ-45 |
| Localisation: | Worldwide |
| Manufacturer: | Ruckus CommScope |
| Max Operating Temperature: | 65 °C |
| Min Operating Temperature: | -20 °C |
| Network / Transport Protocol: | L2TP, IPv4, IPv6 |
| Performance: | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1200 Mbps |
| Power Consumption Operational: | 13.24 Watt |
| Power Over Ethernet (PoE) Supported: | PoE |
| Routing Protocol: | GRE |
| Ruggedized Design: | Outdoor |
| Version: | original |
| Weight: | 1.01 kg |
| Width: | 16.23 cm |
| GPSR - economic actor: | CommScope Technologies Germany GmbH, Deutschland, Centroallee 263, Oberhausen, 46047, NewSuppliers@commscope.com |
|---|---|
| GPSR - product manufacturer: | CommScope Technologies Germany GmbH, Deutschland, Centroallee 263, Oberhausen, 46047, NewSuppliers@commscope.com |
| GPSR - EU responsible person: | CommScope Technologies Germany GmbH, Deutschland, Centroallee 263, Oberhausen, 46047, NewSuppliers@commscope.com |
| EU Data-Act-Url: | https://www.commscope.com/corporate-responsibility-and-sustainability/supplier-responsibility/ |
