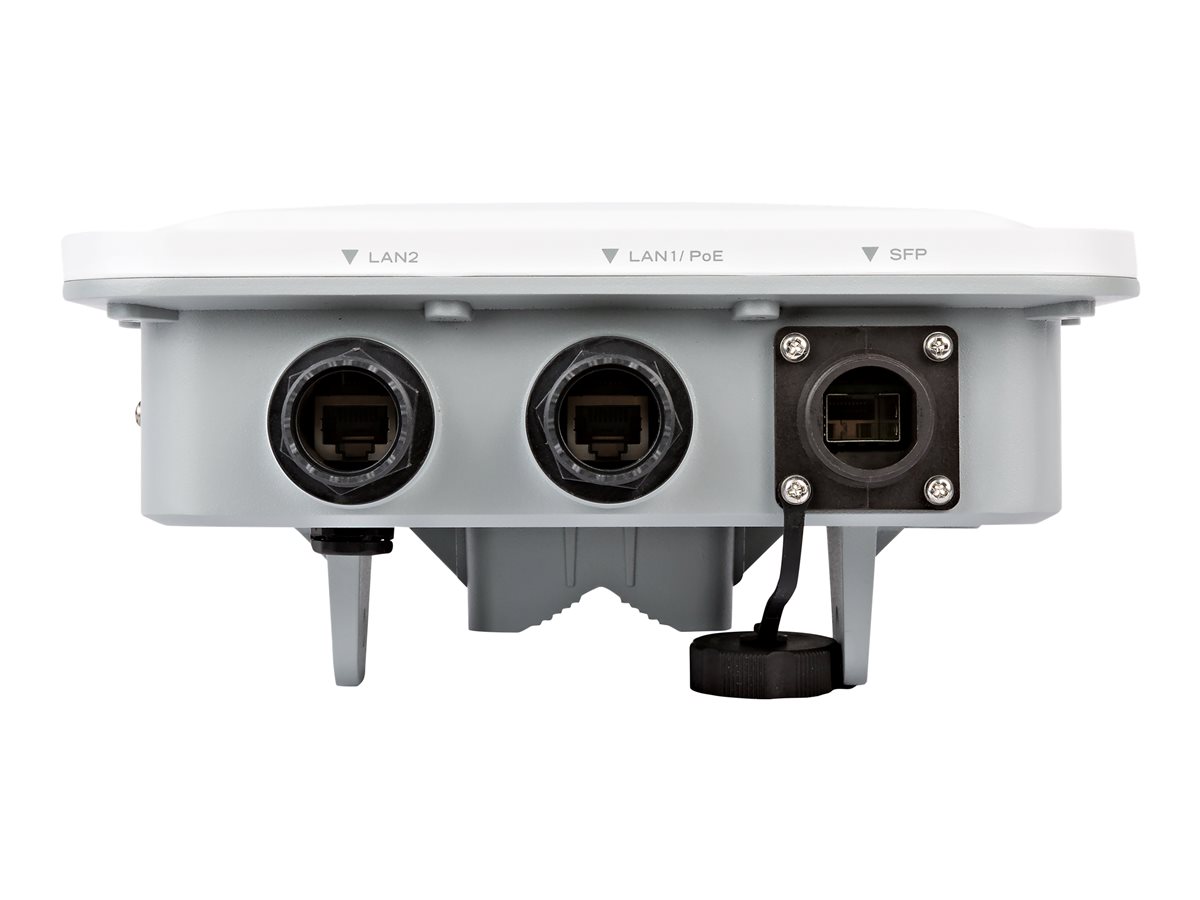

Fortinet FAP-224E
Fortinet FortiAP 224E - Radio access point - Wi-Fi 5 - 2.4 GHz, 5 GHz
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Fortinet FortiAP 224E - Radio access point - Wi-Fi 5 - 2.4 GHz, 5 GHz
| Antenna: | Internal |
|---|---|
| Antenna Qty: | 4 |
| Authentication Method: | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-AKA |
| Capacity: | Maximum number of configured SSIDs: 16 ¦ Wireless clients per Wi-Fi radio: 512 |
| Compliant Standards: | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at, IEEE 802.11j, IEEE 802.3az, IEEE 802.11ac Wave 2 |
| Compliant Standards: | ICES-003, EN55024, FCC Part 15 B, RSS-102, FCC Part 15 C, RoHS, UL 60950-1, IEC 60950-1, FCC Part 15 E, CSA C22.2 No. 60950-1, IP67, LVD, EN 62311, EN 300 328, EMC 2004/108/EC, EN 301 489, RSS-247, EN 301 893, EN 55032, Directive 2014/53/EU |
| Connectivity Technology: | Wireless |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Data Transfer Rate: | 867 Mbps |
| Depth: | 21.4 cm |
| Device Type: | Radio access point |
| Encryption Algorithm: | TLS, PEAP, TTLS, WPA, WPA2, WEP |
| Features: | Mesh networking, WPA2 encryption, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Maximum Likelihood Demodulation (MLD), Captive Portal, WPA encryption, packet aggregation A-MPDU, packet aggregation A-MS |
| Form Factor: | Wall / ceiling mountable |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Height: | 6.75 cm |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Included Accessories: | Grounding kit, wall mounting kit, ceiling mounting kit |
| Interfaces: | 1 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x - SFP (mini-GBIC) ¦ 1 x console |
| MTBF: | >10 years |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 65 °C |
| Min Operating Temperature: | -20 °C |
| Performance: | Maximum throughput (2.4 GHz): 400 Mbps ¦ Maximum throughput (5 GHz): 867 Mbps |
| Power Consumption Operational: | 14.33 Watt |
| Power Over Ethernet (PoE) Supported: | PoE |
| Ruggedized Design: | Outdoor, indoor |
| Shipping Weight: | 2.64 kg |
| Version: | original |
| Weight: | 1.7 kg |
| Width: | 21.4 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Accesspoints International.pdf |
| Safety instructions: | Safety instructions Accesspoints International.pdf |
Fortinet FortiAP 224E - Radio access point - Wi-Fi 5 - 2.4 GHz, 5 GHz
| Antenna: | Internal |
|---|---|
| Antenna Qty: | 4 |
| Authentication Method: | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-AKA |
| Capacity: | Maximum number of configured SSIDs: 16 ¦ Wireless clients per Wi-Fi radio: 512 |
| Compliant Standards: | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at, IEEE 802.11j, IEEE 802.3az, IEEE 802.11ac Wave 2 |
| Compliant Standards: | ICES-003, EN55024, FCC Part 15 B, RSS-102, FCC Part 15 C, RoHS, UL 60950-1, IEC 60950-1, FCC Part 15 E, CSA C22.2 No. 60950-1, IP67, LVD, EN 62311, EN 300 328, EMC 2004/108/EC, EN 301 489, RSS-247, EN 301 893, EN 55032, Directive 2014/53/EU |
| Connectivity Technology: | Wireless |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Data Transfer Rate: | 867 Mbps |
| Depth: | 21.4 cm |
| Device Type: | Radio access point |
| Encryption Algorithm: | TLS, PEAP, TTLS, WPA, WPA2, WEP |
| Features: | Mesh networking, WPA2 encryption, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Maximum Likelihood Demodulation (MLD), Captive Portal, WPA encryption, packet aggregation A-MPDU, packet aggregation A-MS |
| Form Factor: | Wall / ceiling mountable |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Height: | 6.75 cm |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Included Accessories: | Grounding kit, wall mounting kit, ceiling mounting kit |
| Interfaces: | 1 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x - SFP (mini-GBIC) ¦ 1 x console |
| MTBF: | >10 years |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 65 °C |
| Min Operating Temperature: | -20 °C |
| Performance: | Maximum throughput (2.4 GHz): 400 Mbps ¦ Maximum throughput (5 GHz): 867 Mbps |
| Power Consumption Operational: | 14.33 Watt |
| Power Over Ethernet (PoE) Supported: | PoE |
| Ruggedized Design: | Outdoor, indoor |
| Shipping Weight: | 2.64 kg |
| Version: | original |
| Weight: | 1.7 kg |
| Width: | 21.4 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
