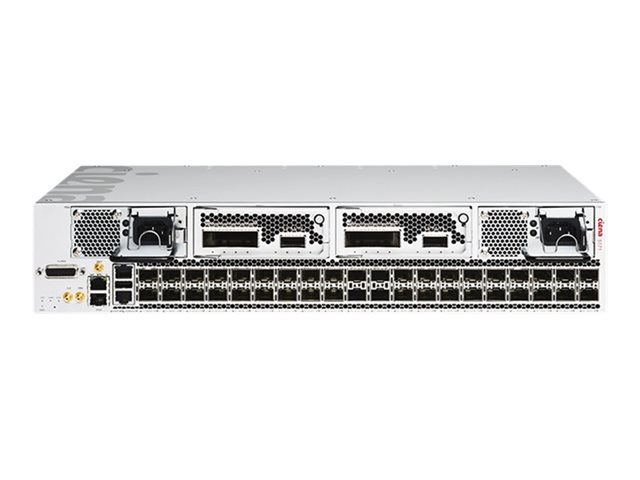

Ciena 170-5171-910
5171,(36)10/1G SFP+
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
5171,(36)10/1G SFP+
| Authentication Method: | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Built-in Devices: | GNSS receiver |
| Compliant Standards: | IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1ab (LLDP), G.703, IEEE 802.3ba, ITU-T Y.1731, ITU-T G.8264, ITU-T G.8262, ITU-T G.8275.1, NEBS level 3, VCCI, CISPR 22 Class A, CISPR 24, NOM, EN55024, ICES-003 Class A, EN 60950-1, FCC Part 15 A, ANATEL, CAN/CSA C22.2 No. 60950-1-07, NRTL, VCCI Class A, RCM, LVD 2006/95/EC, WEEE 2002/96/EC, EMC 2014/30/EU, ANSI/UL 60950-1 Second Edition, EN 3 |
| Depth: | 25.4 cm |
| Device Type: | Switch - 40 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 2U |
| Encryption Algorithm: | TLS |
| Expansion Slots: | 2 (total) / 2 (free) x Expansion Slot |
| Features: | Routing, MPLS support, VLAN support, Syslog support, DoS attack prevention, firmware upgradable, MPLS VPN, LLDP support, LACP, SNMP trap, DHCP client, CoS, VPLS, LDP, Link Aggregation, EVPN, AAA, NTP client, CFM, ZTP, Advanced QoS, OAM support mechanism, |
| Height: | 8.8 cm |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Interfaces: | 4 x 1/10/25Gbit LAN SFP28 ¦ 36 x 10Gbit LAN SFP+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x serial (console) RJ-45 ¦ 1 x USB ¦ 1 x BITS RJ-45 ¦ 1 x PPS ¦ 1 x aerial input |
| Jumbo Frame Support: | 9216 bytes |
| Manufacturer: | Ciena |
| Max Operating Temperature: | 65 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | -40 °C |
| Min Storage Temperature: | -40 °C |
| Ports: | 4 x 1/10/25 Gigabit SFP28 + 36 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Device: | Internal power supply (not installed) |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Remote Management Protocol: | SNMP, TFTP, SSH-2, CLI, NETCONF, SFTP, NTP, IPv4, IPv6, YANG, RADIUS |
| Routing Protocol: | OSPF, BGP-4, IS-IS, BGP, OSPFv2, MPLS |
| Subtype: | 25 Gigabit Ethernet |
| Version: | original |
| Weight: | 15.5 kg |
| Width: | 44.4 cm |
| GPSR - economic actor: | Ciena, Deutschland, Am Flughafen 12, Frankfurt am Main, 60549, legal@ciena.com |
|---|---|
| GPSR - product manufacturer: | Ciena, Deutschland, Am Flughafen 12, Frankfurt am Main, 60549, legal@ciena.com |
| GPSR - EU responsible person: | Ciena, Deutschland, Am Flughafen 12, Frankfurt am Main, 60549, legal@ciena.com |
| EU Data-Act-Url: | https://www.ciena.com/about/corporate-governance/privacy-policy |
| Warnings: | Warnings Adapter Gigabit International.pdf |
| Safety instructions: | Safety instructions Adapter Gigabit International.pdf |
