Lenovo 4XC7A08240

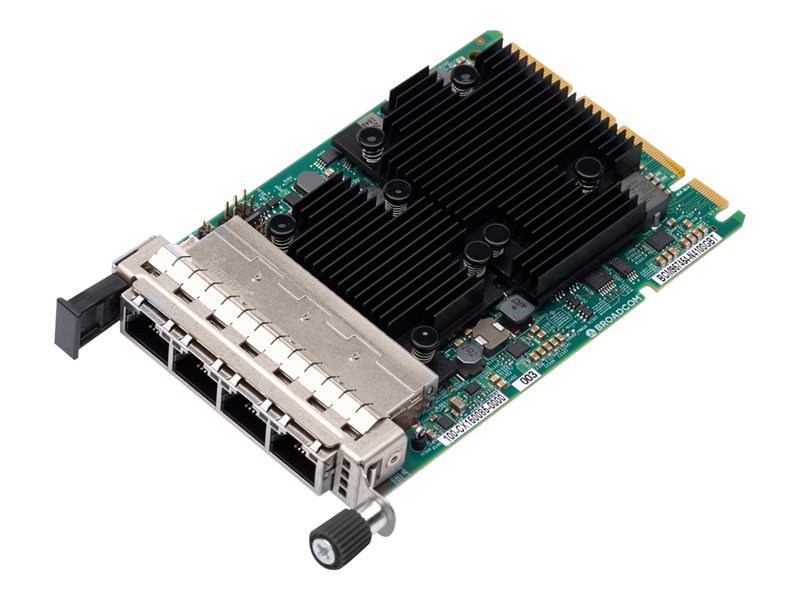

ThinkSystem Broadcom 57454 10GBASE-T 4-port OCP Ethernet Adapter
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
ThinkSystem Broadcom 57454 10GBASE-T 4-port OCP Ethernet Adapter
| Cabling Type: | Ethernet 1000Base-T, Ethernet 10GBase-T |
|---|---|
| Capacity: | Jumbo frame size: 9600 |
| Compliant Standards: | BSMI CNS 13438 Class B, ICES-003, RRL, CSA 22.2 No. 950, ICES-003 Class B, EN55024 Class B, UL 60950-1, EN 60950-1, FCC CFR47 Part 15 B, cTUVus, UL 94, KN22, KN24, EN 55022:2010+AC:2011 Class B, UL 1977, UL 796, CNS 14336 Class B |
| Compliant Standards: | IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588-2008 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet |
| Data Transfer Rate: | 10 Gbps |
| Depth: | 11.5 cm |
| Designed For: | Lenovo ThinkAgile HX5530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX5531 Certified Node 7Z84 ¦ Lenovo ThinkAgile HX7530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX7531 Certified Node 7Z84 ¦ Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance |
| Device Type: | Network adapter |
| Features: | Wake on LAN (WOL), PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), Data Center Bridging (DCB), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), Edge Virtual Bridging (EVB), Accel |
| Height: | 7.6 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Included Accessories: | Low-profile bracket |
| Interface (Bus) Type: | Open Compute Project mezzanine (OCP) 3.0 |
| Interfaces: | 4 x 10GBase-T - RJ-45 |
| Manufacturer: | Lenovo |
| Max Operating Temperature: | 55 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | TCP/IP |
| Ports: | 10Gb Ethernet x 4 |
| Processor: | 1 x Broadcom BCM57454 |
| Version: | original |
| GPSR - economic actor: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE @ lenovo.com |
|---|---|
| GPSR - product manufacturer: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE @ lenovo.com |
| GPSR - EU responsible person: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE @ lenovo.com |
| Warnings: | Warnings Adapter Gigabit International.pdf |
| Safety instructions: | Safety instructions Adapter Gigabit International.pdf |
