Broadcom LPE35002-M2

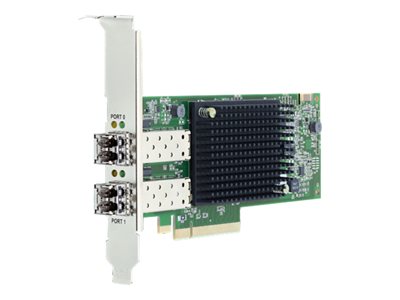

Emulex LPE35002-M2 - Host bus adapter - PCIe 4.0 x8 low profile - 32Gb Fibre Channel Gen 7 (Short Wave) x 2
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Emulex LPE35002-M2 - Host bus adapter - PCIe 4.0 x8 low profile - 32Gb Fibre Channel Gen 7 (Short Wave) x 2
| Cabling Type: | Fibre Channel |
|---|---|
| Compliant Standards: | FCC Class A certified, ICES Class A, UL, CSA, RoHS, RCM, VCCI Class A, KCC Class A, China RoHS, BSMI Class A |
| Connectivity Technology: | Wired |
| Data Link Protocol: | 32Gb Fibre Channel Gen 7 (Short Wave) |
| Data Transfer Rate: | 28.05 Gbps |
| Depth: | 16.764 cm |
| Device Type: | Host bus adapter |
| Fibre Channel: | FC-PI-4, FC-DA, FC-DA-2, FC-FS, FC-FS-3, FC-FS-4, FC-FS-5, FC-GS-2, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-GS-7, FC-LS-2, FC-LS-3, FC-MI, FC-NVMe, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-5, FC-PI-6, FC-PI-7, FC-Tape, FCP-2, FCP-4, FCP-3, S |
| Form Factor: | Plug-in card - low profile |
| Height: | 6.891 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Included Accessories: | Low-profile bracket, full-height bracket |
| Interface (Bus) Type: | PCI Express 4.0 x8 |
| Interfaces: | 2 x 32Gb Fibre Channel Gen 7 (Short Wave) - LC |
| Manufacturer: | Broadcom |
| Max Operating Temperature: | 55 °C |
| Min Operating Temperature: | 0 °C |
| PCI Specification Revision: | PCIe 4.0 |
| Ports: | 32Gb Fibre Channel Gen 7 (Short Wave) x 2 |
| Version: | original |
| GPSR - economic actor: | Broadcom, Deutschland, Willy Brandt Platz 2 Riem Arcaden, München, 81829, press.relations@broadcom.com |
|---|---|
| GPSR - product manufacturer: | Broadcom, Deutschland, Willy Brandt Platz 2 Riem Arcaden, München, 81829, press.relations@broadcom.com |
| GPSR - EU responsible person: | Broadcom, Deutschland, Willy Brandt Platz 2 Riem Arcaden, München, 81829, press.relations@broadcom.com |
| EU Data-Act-Url: | https://www.broadcom.com/support/trust-center/compliance |
| Warnings: | Warnings Adapter PCI International.pdf |
| Safety instructions: | Safety instructions Adapter PCI International.pdf |
Emulex LPE35002-M2 - Host bus adapter - PCIe 4.0 x8 low profile - 32Gb Fibre Channel Gen 7 (Short Wave) x 2
| Cabling Type: | Fibre Channel |
|---|---|
| Compliant Standards: | FCC Class A certified, ICES Class A, UL, CSA, RoHS, RCM, VCCI Class A, KCC Class A, China RoHS, BSMI Class A |
| Connectivity Technology: | Wired |
| Data Link Protocol: | 32Gb Fibre Channel Gen 7 (Short Wave) |
| Data Transfer Rate: | 28.05 Gbps |
| Depth: | 16.764 cm |
| Device Type: | Host bus adapter |
| Fibre Channel: | FC-PI-4, FC-DA, FC-DA-2, FC-FS, FC-FS-3, FC-FS-4, FC-FS-5, FC-GS-2, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-GS-7, FC-LS-2, FC-LS-3, FC-MI, FC-NVMe, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-5, FC-PI-6, FC-PI-7, FC-Tape, FCP-2, FCP-4, FCP-3, S |
| Form Factor: | Plug-in card - low profile |
| Height: | 6.891 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Included Accessories: | Low-profile bracket, full-height bracket |
| Interface (Bus) Type: | PCI Express 4.0 x8 |
| Interfaces: | 2 x 32Gb Fibre Channel Gen 7 (Short Wave) - LC |
| Manufacturer: | Broadcom |
| Max Operating Temperature: | 55 °C |
| Min Operating Temperature: | 0 °C |
| PCI Specification Revision: | PCIe 4.0 |
| Ports: | 32Gb Fibre Channel Gen 7 (Short Wave) x 2 |
| Version: | original |
| GPSR - economic actor: | Broadcom, Deutschland, Willy Brandt Platz 2 Riem Arcaden, München, 81829, press.relations@broadcom.com |
|---|---|
| GPSR - product manufacturer: | Broadcom, Deutschland, Willy Brandt Platz 2 Riem Arcaden, München, 81829, press.relations@broadcom.com |
| GPSR - EU responsible person: | Broadcom, Deutschland, Willy Brandt Platz 2 Riem Arcaden, München, 81829, press.relations@broadcom.com |
| EU Data-Act-Url: | https://www.broadcom.com/support/trust-center/compliance |
