Cisco N2XX-AQPCI01

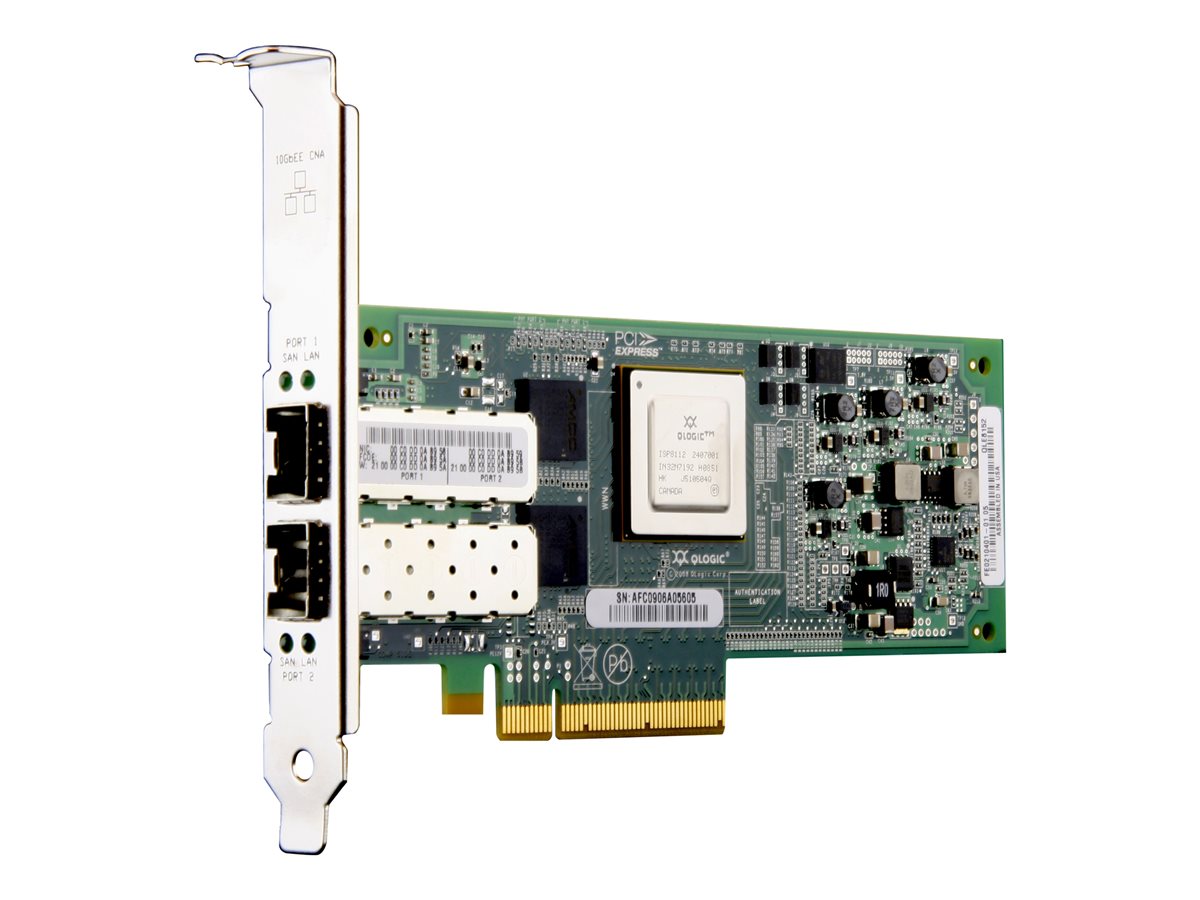

Qlogic QLE 8152-Converged Network Adapter/2port 10Gb-Copper
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Qlogic QLE 8152-Converged Network Adapter/2port 10Gb-Copper
| Compatible Slots: | 1 x PCI Express 2.0 x4 / PCI Express x8 |
|---|---|
| Compliant Standards: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3ap |
| Compliant Standards: | FCC Class A certified, CISPR 22 Class A, BSMI CNS 13438 Class A, EN 61000-3-2, RRL, VCCI Class A ITE, EN 61000-3-3, EN55024, CSA 22.2 No. 60950, MIC, ICES-003 Class A, IEC 825-1, IEC 825-2, UL 60950-1, EN 60950-1, FCC CFR47 Part 15 B, EN 55022 Class A |
| Connectivity Technology: | Wired |
| Data Link Protocol: | 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE) |
| Data Transfer Rate: | 10 Gbps |
| Depth: | 16.8 cm |
| Designed For: | Cisco UCS C200 M1 High-Density Rack-Mount Server, C200 M2 High-Density Rack-Mount Server, C200 M2 High-Performance Large Form Factor Drive Rack-Mount Server, C200 M2 Server for Cisco DMS Applications, C200 M2 Server with Cisco Network Registrar Software a |
| Device Type: | Network adapter - 2 ports |
| Expansion Slots: | 2 (total) / 2 (free) x SFP+ |
| Features: | Flow control, full duplex capability, IPv6 support, Data Center Bridging Exchange (DCBX) support, enhanced transmission selection, Jumbo Frames support |
| Fibre Channel: | FC-GS-2, FC-GS-3, FC-Tape, FCP, FCP-2 |
| Form Factor: | Plug-in card - low profile |
| Height: | 6.5 cm |
| Humidity Range Operating: | 10 - 90% |
| Interface (Bus) Type: | PCI Express 2.0 x4 / PCI Express x8 |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 55 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | TCP/IP, UDP/IP, iSCSI, ARP |
| OS Required: | Microsoft Windows Server 2003, SunSoft Solaris 10, Microsoft Windows Server 2008 R2, VMware ESXi 4.0, Microsoft Windows Server 2008, Red Hat Enterprise Linux Advanced Platform 5, VMware ESX Server 3.5 |
| Remote Management Protocol: | SMI-S |
| Version: | original |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| Warnings: | Warnings Adapter PCI International.pdf |
| Safety instructions: | Safety instructions Adapter PCI International.pdf |
