Cisco UCSC-PCIE-QD32GF

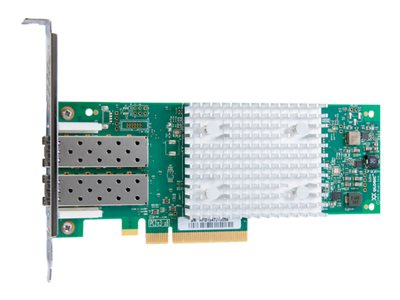

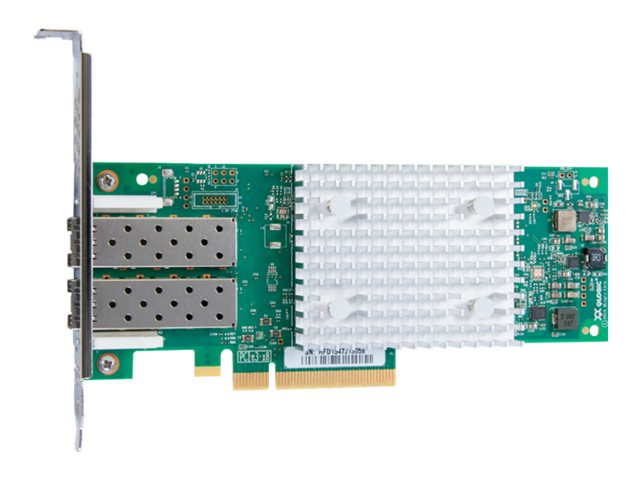

Marvell QLogic QLE2742-CSC - Host bus adapter - PCIe 3.0 x8 low profile - 16Gb Fibre Channel x 2 - for UCS C240 M5, SmartPlay Select C220 M5SX, SmartPlay Select C240 M5SX
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Marvell QLogic QLE2742-CSC - Host bus adapter - PCIe 3.0 x8 low profile - 16Gb Fibre Channel x 2 - for UCS C240 M5, SmartPlay Select C220 M5SX, SmartPlay Select C240 M5SX
| Capacity: | Concurrent logins: 2048 |
|---|---|
| Compliant Standards: | EN 61000-3-2, EN 61000-3-3, EN55024, CB, ICES-003 Class A, CSA C22.2, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, VCCI Class A, FCC CFR47 Part 15 A, EN 55032, AS/NZS Class A, KC-RRA Class A |
| Connectivity Technology: | Wired |
| Data Link Protocol: | 32Gb Fibre Channel |
| Data Transfer Rate: | 32 Gbps |
| Depth: | 16.8 cm |
| Designed For: | Cisco UCS C220 M4S (Not sold Standalone), C220 M5 Server (Large Form Factor Disk Drive Model), C220 M5SN SFF, C240 M5 LFF Rack Server, C240 M5 LFF Rack Server (Tracer), C240 M5 Rack Server for Microsoft Azure Stack, C240 M5 SFF Rack Server, C480 M5 Standa |
| Device Type: | Host bus adapter |
| Features: | UEFI support, BIOS support, FEC, Transparent (N_Port ID Virtualization - NPIV) mode support, QLogic StorFusion, LCB, RDP |
| Fibre Channel: | FC-Tape, FCP-4, FC-PI-5, FC-FS-4, FC-PI-6, FC-GS-8, FC-NVMe, FC-LS-4 |
| Form Factor: | Plug-in card - low profile |
| Humidity Range Operating: | 10 - 90% |
| Interface (Bus) Type: | PCI Express 3.0 x8 |
| Interfaces: | 2 x 16Gb Fibre Channel - FC |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 55 °C |
| Max Transfer Distance: | 100 m |
| Min Operating Temperature: | 0 °C |
| PCI Specification Revision: | PCIe 3.0 |
| Ports: | 16Gb Fibre Channel x 2 |
| Remote Management Protocol: | SMI-S |
| Version: | original |
| Width: | 6.94 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| Warnings: | Warnings Adapter PCI International.pdf |
| Safety instructions: | Safety instructions Adapter PCI International.pdf |
Marvell QLogic QLE2742-CSC - Host bus adapter - PCIe 3.0 x8 low profile - 16Gb Fibre Channel x 2 - for UCS C240 M5, SmartPlay Select C220 M5SX, SmartPlay Select C240 M5SX
| Capacity: | Concurrent logins: 2048 |
|---|---|
| Compliant Standards: | EN 61000-3-2, EN 61000-3-3, EN55024, CB, ICES-003 Class A, CSA C22.2, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, VCCI Class A, FCC CFR47 Part 15 A, EN 55032, AS/NZS Class A, KC-RRA Class A |
| Connectivity Technology: | Wired |
| Data Link Protocol: | 32Gb Fibre Channel |
| Data Transfer Rate: | 32 Gbps |
| Depth: | 16.8 cm |
| Designed For: | Cisco UCS C220 M4S (Not sold Standalone), C220 M5 Server (Large Form Factor Disk Drive Model), C220 M5SN SFF, C240 M5 LFF Rack Server, C240 M5 LFF Rack Server (Tracer), C240 M5 Rack Server for Microsoft Azure Stack, C240 M5 SFF Rack Server, C480 M5 Standa |
| Device Type: | Host bus adapter |
| Features: | UEFI support, BIOS support, FEC, Transparent (N_Port ID Virtualization - NPIV) mode support, QLogic StorFusion, LCB, RDP |
| Fibre Channel: | FC-Tape, FCP-4, FC-PI-5, FC-FS-4, FC-PI-6, FC-GS-8, FC-NVMe, FC-LS-4 |
| Form Factor: | Plug-in card - low profile |
| Humidity Range Operating: | 10 - 90% |
| Interface (Bus) Type: | PCI Express 3.0 x8 |
| Interfaces: | 2 x 16Gb Fibre Channel - FC |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 55 °C |
| Max Transfer Distance: | 100 m |
| Min Operating Temperature: | 0 °C |
| PCI Specification Revision: | PCIe 3.0 |
| Ports: | 16Gb Fibre Channel x 2 |
| Remote Management Protocol: | SMI-S |
| Version: | original |
| Width: | 6.94 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
