IBM 42C1782

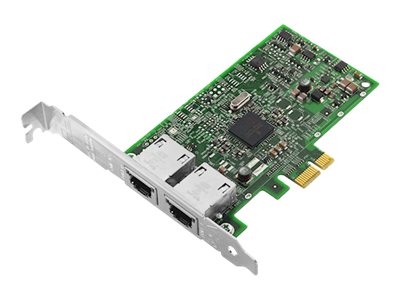

IBM NetXtreme II Dual Port Adapter
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
IBM NetXtreme II Dual Port Adapter
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
|---|---|
| Compliant Standards: | UL, TUV, C-Tick, CISPR 22 Class A, cUL, VCCI Class A ITE, EN55024, CSA 22.2 No. 60950, CB, FCC Part 15 B, ICES-003 Class A |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate: | 1 Gbps |
| Depth: | 11.8 cm |
| Designed For: | Lenovo System x3100 M4 2582 ¦ Lenovo System x3200 ¦ Lenovo System x3250 M3 4252 ¦ Lenovo System x3250 M4 ¦ Lenovo System x3300 M4 ¦ Lenovo System x3400 ¦ Lenovo System x3455 ¦ Lenovo System x3500 ¦ Lenovo System x3530 M4 ¦ Lenovo System x3550 ¦ Lenovo Sys |
| Device Type: | Network adapter |
| Features: | TCP/IP offloading |
| Form Factor: | Plug-in card - low profile |
| Height: | 6.4 cm |
| Humidity Range Operating: | 10 - 90% |
| Included Accessories: | Low-profile bracket |
| Interface (Bus) Type: | PCI Express 2.0 x4 |
| Interfaces: | 2 x 1000Base-T - RJ-45 |
| Manufacturer: | IBM |
| Max Operating Temperature: | 55 °C |
| Min Operating Temperature: | 0 °C |
| PCI Specification Revision: | PCIe 2.0 |
| Ports: | Gigabit Ethernet x 2 |
| Pricing Type: | Field Replaceable Unit (FRU) |
| Version: | original |
| Width: | 1.9 cm |
| GPSR - economic actor: | IBM, Deutschland, Schönaicher Str. 220, Böblingen, 71032, halloibm@de.ibm.com |
|---|---|
| GPSR - product manufacturer: | IBM, Deutschland, Schönaicher Str. 220, Böblingen, 71032, halloibm@de.ibm.com |
| GPSR - EU responsible person: | IBM, Deutschland, Schönaicher Str. 220, Böblingen, 71032, halloibm@de.ibm.com |
| Warnings: | Warnings Adapter PCI International.pdf |
| Safety instructions: | Safety instructions Adapter PCI International.pdf |
IBM NetXtreme II Dual Port Adapter
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
|---|---|
| Compliant Standards: | UL, TUV, C-Tick, CISPR 22 Class A, cUL, VCCI Class A ITE, EN55024, CSA 22.2 No. 60950, CB, FCC Part 15 B, ICES-003 Class A |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate: | 1 Gbps |
| Depth: | 11.8 cm |
| Designed For: | Lenovo System x3100 M4 2582 ¦ Lenovo System x3200 ¦ Lenovo System x3250 M3 4252 ¦ Lenovo System x3250 M4 ¦ Lenovo System x3300 M4 ¦ Lenovo System x3400 ¦ Lenovo System x3455 ¦ Lenovo System x3500 ¦ Lenovo System x3530 M4 ¦ Lenovo System x3550 ¦ Lenovo Sys |
| Device Type: | Network adapter |
| Features: | TCP/IP offloading |
| Form Factor: | Plug-in card - low profile |
| Height: | 6.4 cm |
| Humidity Range Operating: | 10 - 90% |
| Included Accessories: | Low-profile bracket |
| Interface (Bus) Type: | PCI Express 2.0 x4 |
| Interfaces: | 2 x 1000Base-T - RJ-45 |
| Manufacturer: | IBM |
| Max Operating Temperature: | 55 °C |
| Min Operating Temperature: | 0 °C |
| PCI Specification Revision: | PCIe 2.0 |
| Ports: | Gigabit Ethernet x 2 |
| Pricing Type: | Field Replaceable Unit (FRU) |
| Version: | original |
| Width: | 1.9 cm |
| GPSR - economic actor: | IBM, Deutschland, Schönaicher Str. 220, Böblingen, 71032, halloibm@de.ibm.com |
|---|---|
| GPSR - product manufacturer: | IBM, Deutschland, Schönaicher Str. 220, Böblingen, 71032, halloibm@de.ibm.com |
| GPSR - EU responsible person: | IBM, Deutschland, Schönaicher Str. 220, Böblingen, 71032, halloibm@de.ibm.com |
