Lenovo 01CV830

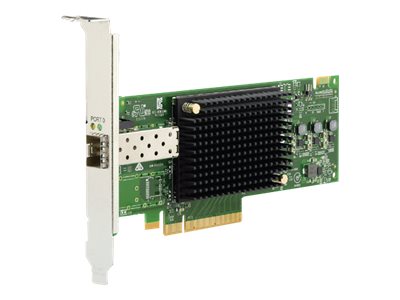

Lenovo Emulex 16Gb (Gen 6) FC Single-port HBA - Hostbus-Adapter - PCIe 3.0 x8 Low Profile
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Lenovo Emulex 16Gb (Gen 6) FC Single-port HBA - Hostbus-Adapter - PCIe 3.0 x8 Low Profile
| Compliant Standards: | ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07, FCC Part 15 A, BSMI Class A, VCCI Class A, MSIP Class A, China RoHS, RCM, RoHS 2011/65/EU, EN55022:2010 Class A, AS/NZS CISPR22:2009+A1 Class A, EN 55024:2010, EN 55032:2012, EN60950-1 |
|---|---|
| Connectivity Technology: | Wired |
| Data Link Protocol: | 4Gb Fibre Channel, 8Gb Fibre Channel, 16Gb Fibre Channel |
| Data Transfer Rate: | 14.025 Gbps |
| Depth: | 16.8 cm |
| Designed For: | Lenovo NeXtScale nx360 M5 5465 ¦ Lenovo System x3500 M5 5464 ¦ Lenovo System x3550 M5 5463, 8869 ¦ Lenovo System x3650 M5 5462, 8871 ¦ Lenovo System x3750 M4 8753 ¦ Lenovo System x3850 X6 6241 ¦ Lenovo System x3950 X6 6241 ¦ Lenovo ThinkSystem SR250 ¦ Len |
| Device Type: | Host bus adapter |
| Features: | Quality of Service (QoS), Single Root I/O Virtualization (SR-IOV), Forward Error Correction (FEC), Extended Message-Signaled Interrupts (MSI-X) |
| Fibre Channel: | FC-DA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-Tape, FCP-4, FCP-2, FC-PI-2, FC-GS-5, FCP-3, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-HBA, FC-PI-5, FC-LS-2, FC-DA-2, SSC-2, SBC-2, SPC-3, FC-PI-6, SBC-3, SPC-4, SSC-4 |
| Form Factor: | Plug-in card - low profile |
| Height: | 6.9 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Included Accessories: | Low-profile bracket, full-height bracket, 16 Gb shortwave Fibre Channel SFP+ LC transceiver |
| Interface (Bus) Type: | PCI Express 3.0 x8 |
| Interfaces: | 1 x 16Gb Fibre Channel - SFP+ |
| MTBF: | 10,000,000 hour(s) |
| Manufacturer: | Lenovo |
| Max Operating Temperature: | 55 °C |
| Min Operating Temperature: | 0 °C |
| OS Required: | Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 12, VMware vSphere 5.5 update 2, SuSE Linux Enterprise Server 12 SP1, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, SuSE Linux Enterprise Server 11 SP3 fo |
| Performance: | Maximum IOPS: 1600000 |
| Ports: | 16Gb Fibre Channel |
| Processor: | 1 x Emulex |
| Version: | original |
| GPSR - economic actor: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
|---|---|
| GPSR - product manufacturer: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
| GPSR - EU responsible person: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
| Warnings: | Warnings Adapter PCI International.pdf |
| Safety instructions: | Safety instructions Adapter PCI International.pdf |
