Lenovo 4XC7A08276

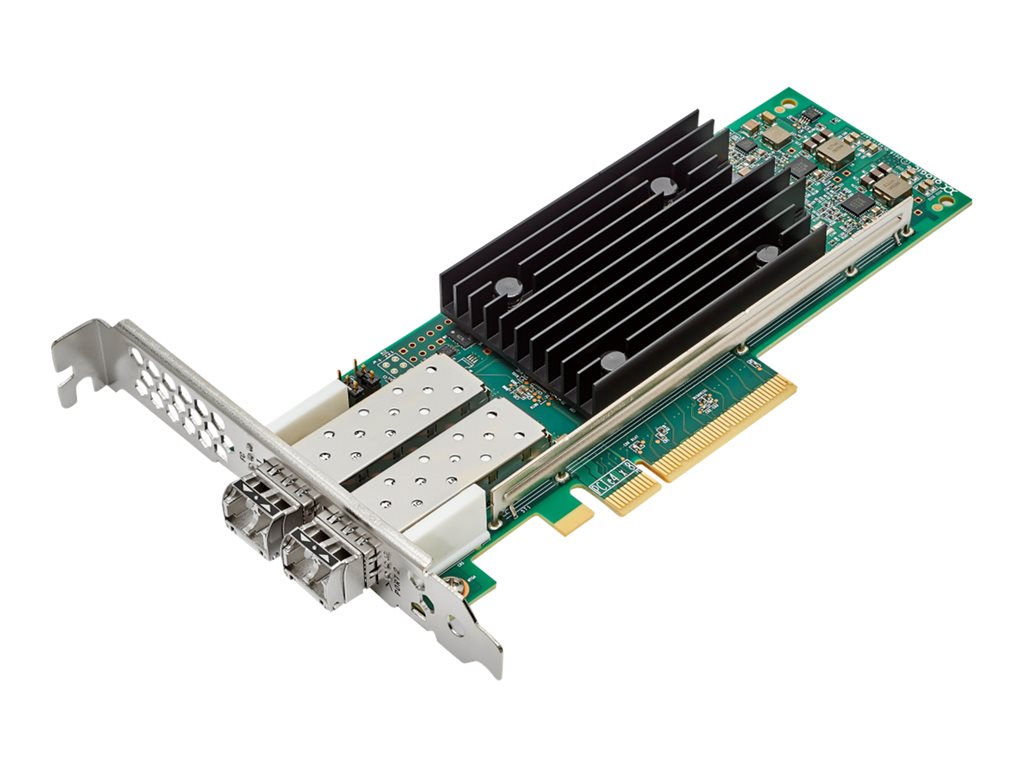

ThinkSystem QLogic QLE2772 32Gb 2-Port PCIe Fibre Channel Adapter
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
ThinkSystem QLogic QLE2772 32Gb 2-Port PCIe Fibre Channel Adapter
| Cabling Type: | Fibre Channel |
|---|---|
| Compliant Standards: | TUV, EN 61000-3-2, EN 61000-3-3, EN55024, CB, ICES-003 Class A, CSA C22.2, UL 60950-1, IEC 60950-1, BSMI CNS 13438, EMC Class A, EMI, VCCI Class A, FCC CFR47 Part 15 B Class A, EN 55032, AS/NZS Class A, KC-RRA Class A |
| Connectivity Technology: | Wired |
| Data Link Protocol: | 8Gb Fibre Channel, 16Gb Fibre Channel, 32Gb Fibre Channel |
| Data Transfer Rate: | 28.05 Gbps |
| Depth: | 16.8 cm |
| Designed For: | Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR635 7Y98, 7Y99 ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR655 7Y00, 7Z01 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR850 V2 |
| Device Type: | Host bus adapter |
| Features: | Auto-negotiation, Forward Error Correction (FEC), Transparent (N_Port ID Virtualization - NPIV) mode support, Extended Message-Signaled Interrupts (MSI-X), Fabric-Assigned port WorldWide Name (FA-WWN), Fabric-ased Boot LUN Discovery (F-BLD), Link cable be |
| Fibre Channel: | FC-Tape, FCP-4, FC-PI-5, FC-FS-4, FC-PI-6, FC-GS-8, FC-NVMe, FC-LS-4 |
| Form Factor: | Plug-in card - low profile |
| Height: | 6.9 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | Low-profile bracket, full-height bracket, 2 x 32 Gb shortwave Fibre Channel SFP+ LC transceivers |
| Interface (Bus) Type: | PCI Express 4.0 x8 |
| Interfaces: | 2 x 32Gb Fibre Channel Gen 6 (Short Wave) - LC |
| Manufacturer: | Lenovo |
| Max Operating Temperature: | 55 °C |
| Min Operating Temperature: | 0 °C |
| PCI Specification Revision: | PCIe 4.0 |
| Ports: | 32Gb Fibre Channel SFP+ x 2 |
| Version: | original |
| GPSR - economic actor: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
|---|---|
| GPSR - product manufacturer: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
| GPSR - EU responsible person: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
| Warnings: | Warnings Adapter PCI International.pdf |
| Safety instructions: | Safety instructions Adapter PCI International.pdf |
ThinkSystem QLogic QLE2772 32Gb 2-Port PCIe Fibre Channel Adapter
| Cabling Type: | Fibre Channel |
|---|---|
| Compliant Standards: | TUV, EN 61000-3-2, EN 61000-3-3, EN55024, CB, ICES-003 Class A, CSA C22.2, UL 60950-1, IEC 60950-1, BSMI CNS 13438, EMC Class A, EMI, VCCI Class A, FCC CFR47 Part 15 B Class A, EN 55032, AS/NZS Class A, KC-RRA Class A |
| Connectivity Technology: | Wired |
| Data Link Protocol: | 8Gb Fibre Channel, 16Gb Fibre Channel, 32Gb Fibre Channel |
| Data Transfer Rate: | 28.05 Gbps |
| Depth: | 16.8 cm |
| Designed For: | Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR635 7Y98, 7Y99 ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR655 7Y00, 7Z01 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR850 V2 |
| Device Type: | Host bus adapter |
| Features: | Auto-negotiation, Forward Error Correction (FEC), Transparent (N_Port ID Virtualization - NPIV) mode support, Extended Message-Signaled Interrupts (MSI-X), Fabric-Assigned port WorldWide Name (FA-WWN), Fabric-ased Boot LUN Discovery (F-BLD), Link cable be |
| Fibre Channel: | FC-Tape, FCP-4, FC-PI-5, FC-FS-4, FC-PI-6, FC-GS-8, FC-NVMe, FC-LS-4 |
| Form Factor: | Plug-in card - low profile |
| Height: | 6.9 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | Low-profile bracket, full-height bracket, 2 x 32 Gb shortwave Fibre Channel SFP+ LC transceivers |
| Interface (Bus) Type: | PCI Express 4.0 x8 |
| Interfaces: | 2 x 32Gb Fibre Channel Gen 6 (Short Wave) - LC |
| Manufacturer: | Lenovo |
| Max Operating Temperature: | 55 °C |
| Min Operating Temperature: | 0 °C |
| PCI Specification Revision: | PCIe 4.0 |
| Ports: | 32Gb Fibre Channel SFP+ x 2 |
| Version: | original |
| GPSR - economic actor: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
|---|---|
| GPSR - product manufacturer: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
| GPSR - EU responsible person: | Lenovo, Deutschland, Meitnerstr.9, Stuttgart, 70563, Fragen_DE@lenovo.com |
