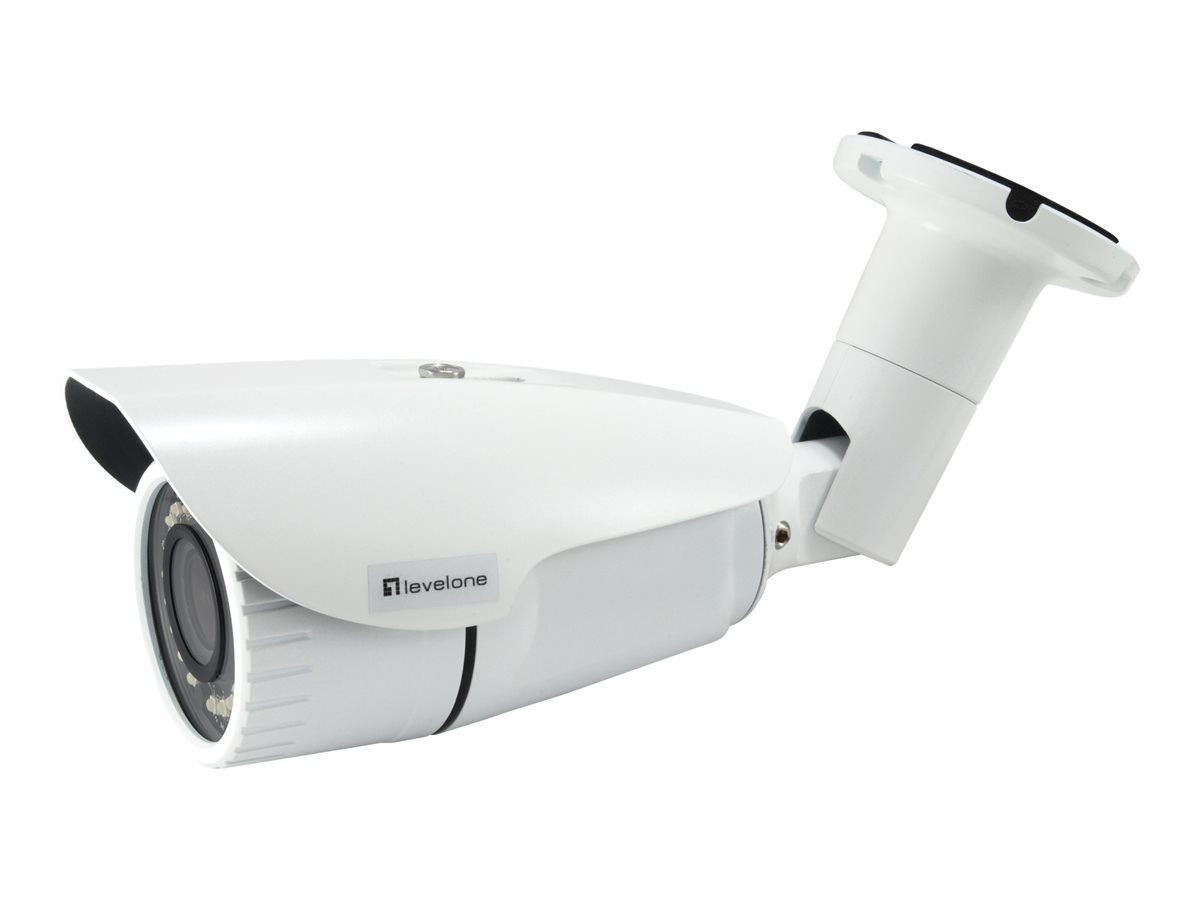

LevelOne FCS-5103 Fixed IP Network Camera, H.265/264, 5-Megapixel, 2.8X Optical Zoom, 802.3af PoE, IR LEDs, Indoor/Outdoor, Vandalproof, two-way audio
| Audio Support: | Yes: two-way audio capability |
|---|---|
| Compliant Standards: | FCC, IK10, IP66, IEEE 802.3af |
| Connectivity Technology: | Wired |
| Connectors: | LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out ¦ Composite video - BNC |
| Depth: | 25.83 cm |
| Device Type: | Network surveillance camera |
| Digital Video Format: | MJPEG, H.264, RAW, H.265 |
| Enclosure Colour: | White |
| Exposure Range: | 1/5 sec - 1/16000 sec |
| Features: | White balance, brightness control, Power over Ethernet, contrast control, ONVIF support, Motion Detection Technology, infrared cut filter, defogger, Digital Image Stabilization (DIS), tamper-detection, notification picture to E-mail, notification picture |
| Focal Length: | 3.6 mm - 10 mm |
| Horizontal Field of View (degree): | 79.5 |
| Included Accessories: | Screw kit |
| Infrared Distance: | 30 m |
| Infrared LEDs: | Yes |
| Lens Iris: | F/1.5-2.8 auto iris (P-Iris) |
| Manufacturer: | LevelOne |
| Max Digital Video Resolution: | 2592 x 1944 |
| Max Operating Temperature: | 50 °C |
| Min Operating Temperature: | -20 °C |
| Motion Detection: | Yes |
| Network Interface: | Ethernet 10Base-T/100Base-TX |
| Network Protocols: | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, QOS, 3GPP/ISMA, CoS |
| Optical Zoom: | 2.8 x |
| Power Device: | 10 watt |
| Relative Humidity (operating): | 20 - 80% (non-condensing) |
| Software Included: | Drivers & Utilities |
| Type: | 5 MP CMOS 1/1.8", Colour - Day&Night - fixed - outdoor - vandal / weatherproof |
| Version: | original |
| Vertical Field of View (degree): | 38.1 |
| Video Capture: | 2592 x 1944 @ 30 fps ¦ 2048 x 1536 @ 30 fps ¦ 1920 x 1080 @ 30 fps ¦ 1280 x 960 @ 30 fps ¦ 1280 x 720 @ 30 fps ¦ 800 x 600 @ 30 fps ¦ 640 x 480 @ 30 fps ¦ 320 x 240 @ 30 fps |
| Voltage Required: | DC 12 V / PoE Class 3 |
| Weight: | 800 g |
| Width: | 8 cm |
| GPSR - economic actor: | Digital Data Communications, Deutschland, Im Defdahl 10 F, Dortmund, 44141, info@digital-data.de |
|---|---|
| GPSR - product manufacturer: | Digital Data Communications, Deutschland, Im Defdahl 10 F, Dortmund, 44141, info@digital-data.de |
| GPSR - EU responsible person: | Digital Data Communications, Deutschland, Im Defdahl 10 F, Dortmund, 44141, info@digital-data.de |
| EU Data-Act-Url: | https://digital-data.de/datenschutz.html |
| Warnings: | Warnings Accessoires International.pdf |
| Safety instructions: | Safety instructions Accessoires International.pdf |
