Intel RMS25PB080

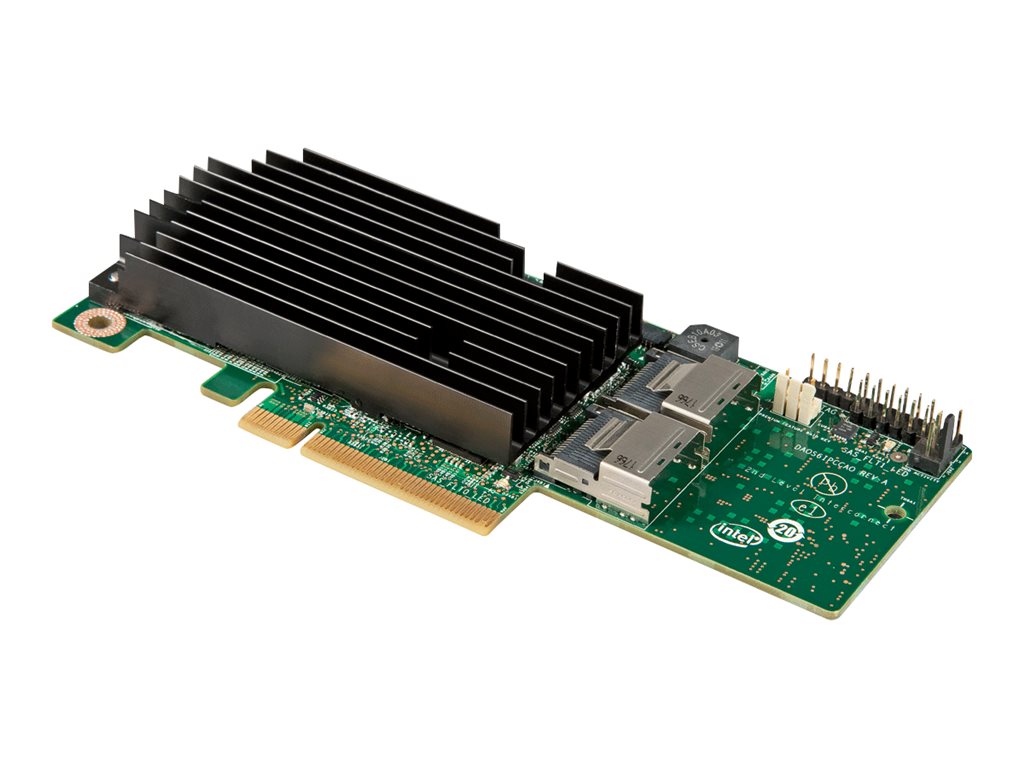

Intel Integrated RAID Module RMS25PB080 - storage controller (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 3.0 x8
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Intel Integrated RAID Module RMS25PB080 - storage controller (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 3.0 x8
| Buffer Size: | 1 GB |
|---|---|
| Channel Qty: | 8 |
| Compatible Slots: | 1 x PCI Express 3.0 x8 |
| Data Transfer Rate: | 6 Gbit/s |
| Depth: | 16.8 cm |
| Designed For: | Intel Compute Module HNS2600WP, HNS2600WPQ ¦ Intel Server Board DBS2600COEIOC, S2600CO4, S2600COE, S2600CP2, S2600CP4, S2600GL, S2600GZ, S2600IP4, S2600JF, S2600JFF, S2600JFQ, S2600WP, S2600WPQ ¦ Intel Server System H2216JFJR, H2216JFQJR, H2216WPJR, H2216 |
| Device Type: | Storage controller (RAID) - plug-in card - low profile |
| Features: | LED indicator, firmware upgradable |
| Height: | 6.9 cm |
| Host Bus: | PCIe 3.0 x8 |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
| Included Accessories: | Full-height bracket |
| Interface: | SATA 6Gb/s / SAS 6Gb/s |
| Interfaces: | 2 x SATA 6Gb/s / SAS 6Gb/s - 36 pin 4i Mini MultiLane (internal) |
| MTBF: | 300,000 hours |
| Manufacturer: | Intel |
| Max Storage Devices Qty: | 128 |
| OS Required: | SUSE Linux Enterprise Server, Microsoft Windows Server 2003, Red Hat Enterprise Linux, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008, VMware ESX Server 4.0 |
| Processor: | LSI LSISAS2208 800 MHz |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Supported Devices: | Hard drive, disk array (RAID) |
| Version: | original |
| Width: | 3.4 cm |
| GPSR - economic actor: | Intel, Deutschland, Am Campeon 10, Neubiberg, 85579, info.de@intel.com |
|---|---|
| GPSR - product manufacturer: | Intel, Deutschland, Am Campeon 10, Neubiberg, 85579, info.de@intel.com |
| GPSR - EU responsible person: | Intel, Deutschland, Am Campeon 10, Neubiberg, 85579, info.de@intel.com |
| EU Data-Act-Url: | https://www.intel.de/content/www/de/de/privacy/intel-privacy-notice.html |
| Warnings: | Warnings Controller Cards International.pdf |
| Safety instructions: | Safety instructions Controller Cards International.pdf |
Intel Integrated RAID Module RMS25PB080 - storage controller (RAID) - SATA 6Gb/s / SAS 6Gb/s - PCIe 3.0 x8
| Buffer Size: | 1 GB |
|---|---|
| Channel Qty: | 8 |
| Compatible Slots: | 1 x PCI Express 3.0 x8 |
| Data Transfer Rate: | 6 Gbit/s |
| Depth: | 16.8 cm |
| Designed For: | Intel Compute Module HNS2600WP, HNS2600WPQ ¦ Intel Server Board DBS2600COEIOC, S2600CO4, S2600COE, S2600CP2, S2600CP4, S2600GL, S2600GZ, S2600IP4, S2600JF, S2600JFF, S2600JFQ, S2600WP, S2600WPQ ¦ Intel Server System H2216JFJR, H2216JFQJR, H2216WPJR, H2216 |
| Device Type: | Storage controller (RAID) - plug-in card - low profile |
| Features: | LED indicator, firmware upgradable |
| Height: | 6.9 cm |
| Host Bus: | PCIe 3.0 x8 |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
| Included Accessories: | Full-height bracket |
| Interface: | SATA 6Gb/s / SAS 6Gb/s |
| Interfaces: | 2 x SATA 6Gb/s / SAS 6Gb/s - 36 pin 4i Mini MultiLane (internal) |
| MTBF: | 300,000 hours |
| Manufacturer: | Intel |
| Max Storage Devices Qty: | 128 |
| OS Required: | SUSE Linux Enterprise Server, Microsoft Windows Server 2003, Red Hat Enterprise Linux, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008, VMware ESX Server 4.0 |
| Processor: | LSI LSISAS2208 800 MHz |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Supported Devices: | Hard drive, disk array (RAID) |
| Version: | original |
| Width: | 3.4 cm |
| GPSR - economic actor: | Intel, Deutschland, Am Campeon 10, Neubiberg, 85579, info.de@intel.com |
|---|---|
| GPSR - product manufacturer: | Intel, Deutschland, Am Campeon 10, Neubiberg, 85579, info.de@intel.com |
| GPSR - EU responsible person: | Intel, Deutschland, Am Campeon 10, Neubiberg, 85579, info.de@intel.com |
| EU Data-Act-Url: | https://www.intel.de/content/www/de/de/privacy/intel-privacy-notice.html |
