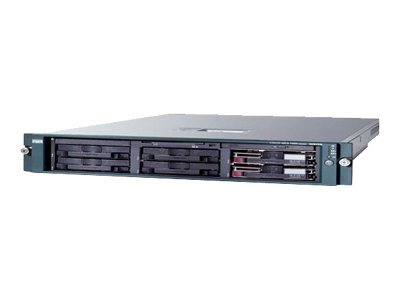

Cisco MCS7835H2-DMM51K9
HW Only MCS-7835-H2 with 2GB RAM and Two 146GB SAS HD
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
HW Only MCS-7835-H2 with 2GB RAM and Two 146GB SAS HD
| Compliant Standards: | ACPI 2.0 |
|---|---|
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 66.1 cm |
| Device Type: | Voice/video/data server |
| Expansion Bays: | 8 (total) / 6 (free) x hot-swap |
| Expansion Slots: | 8 (total) / 6 (free) x FB-DIMM 240-pin ¦ 2 (total) / 1 (free) x ¦ 1 PCI Express ¦ 2 PCI-X / 133 MHz |
| Features: | Wake on LAN (WOL) |
| Form Factor: | Rack-mountable |
| Hard Drive: | HDD hot-swap 146 GB x 2 - SAS |
| Height: | 8.6 cm |
| Height (Rack Units): | 2U |
| Humidity Range Operating: | 10 - 90% |
| Installed Qty: | 2 |
| Interfaces: | 2 x 1000Base-T - RJ-45 ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x management ¦ 1 x serial ¦ 4 x USB 2.0 - Type A ¦ 2 x video |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 35 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 10 °C |
| Ports Qty: | 2 |
| Power Device: | Internal power supply - hot-plug |
| Power Provided: | 800 Watt |
| Processors Installed: | 1 x Intel Xeon 2.33 GHz |
| RAID Level: | RAID 1 |
| RAM: | 2 GB (32 GB max) DDR2 SDRAM FB-DIMM 240-pin |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 27.2 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Modules International.pdf |
| Safety instructions: | Safety instructions Modules International.pdf |
HW Only MCS-7835-H2 with 2GB RAM and Two 146GB SAS HD
| Compliant Standards: | ACPI 2.0 |
|---|---|
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 66.1 cm |
| Device Type: | Voice/video/data server |
| Expansion Bays: | 8 (total) / 6 (free) x hot-swap |
| Expansion Slots: | 8 (total) / 6 (free) x FB-DIMM 240-pin ¦ 2 (total) / 1 (free) x ¦ 1 PCI Express ¦ 2 PCI-X / 133 MHz |
| Features: | Wake on LAN (WOL) |
| Form Factor: | Rack-mountable |
| Hard Drive: | HDD hot-swap 146 GB x 2 - SAS |
| Height: | 8.6 cm |
| Height (Rack Units): | 2U |
| Humidity Range Operating: | 10 - 90% |
| Installed Qty: | 2 |
| Interfaces: | 2 x 1000Base-T - RJ-45 ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x management ¦ 1 x serial ¦ 4 x USB 2.0 - Type A ¦ 2 x video |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 35 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 10 °C |
| Ports Qty: | 2 |
| Power Device: | Internal power supply - hot-plug |
| Power Provided: | 800 Watt |
| Processors Installed: | 1 x Intel Xeon 2.33 GHz |
| RAID Level: | RAID 1 |
| RAM: | 2 GB (32 GB max) DDR2 SDRAM FB-DIMM 240-pin |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 27.2 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
