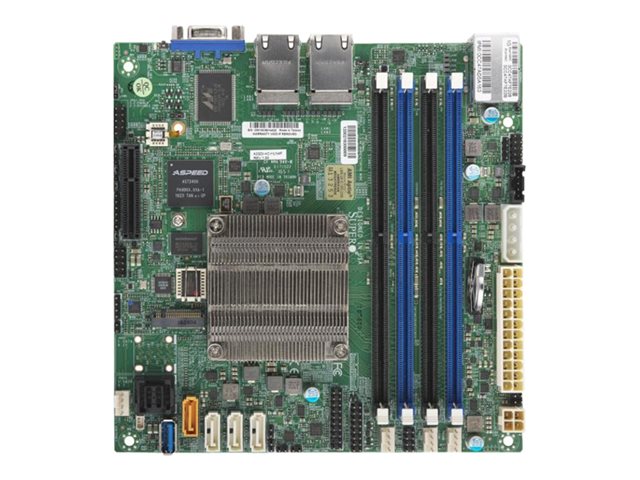

Supermicro MBD-A2SDI-4C-HLN4F-O
A2SDI-4C-HLN4F Atom C3558 mITX VGA 4xGbE SATA3 DDR3 IPMI Retail
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
A2SDI-4C-HLN4F Atom C3558 mITX VGA 4xGbE SATA3 DDR3 IPMI Retail
| BIOS Features: | Power failure recovery (AC loss resume), UEFI BIOS, SMBIOS 2.7.1 support, IPMI 2.0 support |
|---|---|
| BIOS Type: | AMI |
| Bus Clock: | 1600 MHz, 1866 MHz, 2133 MHz |
| Cables Included: | 1 x mini SAS HD to 4 x SATAHDD cable ¦ 4 x Serial ATA cable |
| Cache: | 8 MB |
| Compliant Standards: | RoHS |
| Depth: | 17.02 cm |
| Details: | 256 GB - registered - ECC ¦ 64 GB - unbuffered - ECC ¦ 64 GB - unbuffered - non-ECC |
| Expansion Slots: | 4 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 3.0 x4 |
| Graphics Controller: | ASPEED AST2400 |
| Hardware Features: | Chassis intrusion detection, WatchDog Timer |
| Hardware Monitoring: | Chassis temperature, chassis fan tachometer, system voltage, CPUoverheating protection, CPU core voltage |
| Included Accessories: | I/O back plate |
| Interfaces: | 4 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x USB 3.0 ¦ 2 x USB 2.0 |
| Internal Interfaces: | 1 x USB 3.0 - Type A ¦ 1 x serial - header ¦ 2 x USB 2.0 - header |
| Manufacturer: | Supermicro |
| Max Size: | 256 GB |
| Network Interfaces: | 4 x Gigabit Ethernet |
| Power Connectors: | 24-pin main power connector, DC-in power connector |
| Processor: | Intel Atom C3558 (Quad-Core) |
| Product Type: | Motherboard - mini ITX |
| Registered or Buffered: | Registered, unbuffered |
| Sleep / Wake Up: | Wake on LAN (WOL) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin SATA, 1 x mini-SAS HD - 8 devices ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Supported RAM Integrity Check: | Non-ECC, ECC |
| Technology: | DDR4 |
| Version: | original |
| Width: | 17.02 cm |
| GPSR - economic actor: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
|---|---|
| GPSR - product manufacturer: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
| GPSR - EU responsible person: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
| EU Data-Act-Url: | https://www.supermicro.com/en/support/compliance_lot_9 |
| Warnings: | Warnings Modules International.pdf |
| Safety instructions: | Safety instructions Modules International.pdf |
