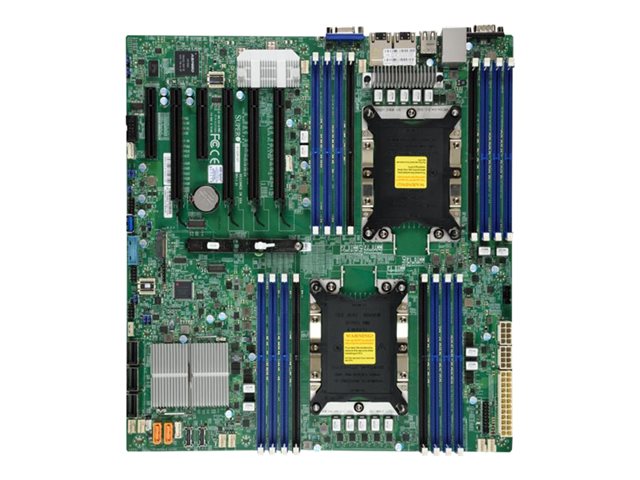

Supermicro MBD-X11DPI-N-O
X11DPI-N C621 DDR4 M2 EATX VGA 2xGbE 14xSATA NVME retail
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
X11DPI-N C621 DDR4 M2 EATX VGA 2xGbE 14xSATA NVME retail
| BIOS Features: | UEFI BIOS, IPMI 2.0 support |
|---|---|
| BIOS Type: | AMI |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz |
| Cables Included: | 2 x Serial ATA cable |
| Chipset Type: | Intel C621 |
| Compatible Processors: | Xeon (supports CPUs with up to 28 cores, Maximum TDP 205 Watt) |
| Compliant Standards: | RoHS |
| Depth: | 33.02 cm |
| Details: | 2 TB - 3DS Load-Reduced - ECC ¦ 2 TB - 3DS registered - ECC |
| Expansion Slots: | 2 x CPU ¦ 16 x DIMM 288-pin (1.2 V) ¦ 4 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x8 |
| Graphics Controller: | ASPEED AST2500 |
| Hardware Features: | Chassis intrusion detection, WatchDog Timer |
| Hardware Monitoring: | Chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Included Accessories: | I/O back plate |
| Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 2 x USB 2.0 ¦ 2 x USB 3.0 ¦ 1 x serial |
| Internal Interfaces: | 1 x serial - header ¦ 1 x USB 3.0 - Type A ¦ 2 x USB 3.0 - header |
| Manufacturer: | Supermicro |
| Max Processors Qty: | 2 |
| Max Size: | 2 TB |
| Network Interfaces: | 2 x Gigabit Ethernet |
| Processor Socket: | Socket P |
| Product Type: | Motherboard - extended ATX |
| Registered or Buffered: | Registered, Load-Reduced, 3DS Load-Reduced, 3DS registered |
| Storage Interfaces: | Intel C621: SATA-600 -connectors: 14 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 3.0 -connectors: 1 x M.2 - 1 devices ¦ PCIe 3.0 -connectors: 2 x NVMe port |
| Supported RAM Integrity Check: | ECC |
| Technology: | DDR4 |
| Version: | original |
| Width: | 30.48 cm |
| GPSR - economic actor: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
|---|---|
| GPSR - product manufacturer: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
| GPSR - EU responsible person: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
| EU Data-Act-Url: | https://www.supermicro.com/en/support/compliance_lot_9 |
| Warnings: | Warnings Modules International.pdf |
| Safety instructions: | Safety instructions Modules International.pdf |
X11DPI-N C621 DDR4 M2 EATX VGA 2xGbE 14xSATA NVME retail
| BIOS Features: | UEFI BIOS, IPMI 2.0 support |
|---|---|
| BIOS Type: | AMI |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz |
| Cables Included: | 2 x Serial ATA cable |
| Chipset Type: | Intel C621 |
| Compatible Processors: | Xeon (supports CPUs with up to 28 cores, Maximum TDP 205 Watt) |
| Compliant Standards: | RoHS |
| Depth: | 33.02 cm |
| Details: | 2 TB - 3DS Load-Reduced - ECC ¦ 2 TB - 3DS registered - ECC |
| Expansion Slots: | 2 x CPU ¦ 16 x DIMM 288-pin (1.2 V) ¦ 4 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x8 |
| Graphics Controller: | ASPEED AST2500 |
| Hardware Features: | Chassis intrusion detection, WatchDog Timer |
| Hardware Monitoring: | Chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Included Accessories: | I/O back plate |
| Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 2 x USB 2.0 ¦ 2 x USB 3.0 ¦ 1 x serial |
| Internal Interfaces: | 1 x serial - header ¦ 1 x USB 3.0 - Type A ¦ 2 x USB 3.0 - header |
| Manufacturer: | Supermicro |
| Max Processors Qty: | 2 |
| Max Size: | 2 TB |
| Network Interfaces: | 2 x Gigabit Ethernet |
| Processor Socket: | Socket P |
| Product Type: | Motherboard - extended ATX |
| Registered or Buffered: | Registered, Load-Reduced, 3DS Load-Reduced, 3DS registered |
| Storage Interfaces: | Intel C621: SATA-600 -connectors: 14 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 3.0 -connectors: 1 x M.2 - 1 devices ¦ PCIe 3.0 -connectors: 2 x NVMe port |
| Supported RAM Integrity Check: | ECC |
| Technology: | DDR4 |
| Version: | original |
| Width: | 30.48 cm |
| GPSR - economic actor: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
|---|---|
| GPSR - product manufacturer: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
| GPSR - EU responsible person: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
| EU Data-Act-Url: | https://www.supermicro.com/en/support/compliance_lot_9 |
