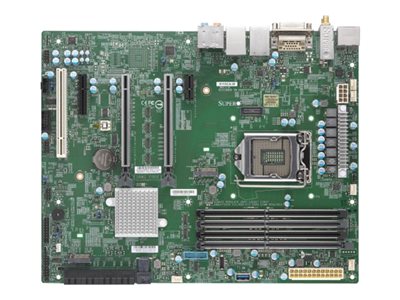

Supermicro MBD-X11SCA-W-O
X11SCA-W LGA1151 C246 DDR4 ATX WIFI M2 DP 2x1GbE 8xSATA retail
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
X11SCA-W LGA1151 C246 DDR4 ATX WIFI M2 DP 2x1GbE 8xSATA retail
| Audio Codec: | Realtek ALC888S |
|---|---|
| BIOS Features: | ACPI support, power failure recovery (AC loss resume), UEFI BIOS, IPMI 2.0 support |
| Bus Clock: | 2400 MHz, 1600 MHz, 1866 MHz, 2133 MHz, 2666 MHz |
| Cables Included: | 6 x Serial ATA cable |
| Chipset Type: | Intel C246 |
| Compatible Processors: | Pentium, Celeron, Core i5, Core i3, Core i7, Core i9, Xeon E (supports 9th and 8th Generation Intel Core i3 / i5 / i7 / i9 / Pentium / Celeron / Xeron E, Maximum TDP 95 Watt) |
| Compliant Standards: | RoHS |
| Compliant Standards: | High Definition Audio |
| Depth: | 24.38 cm |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin (1.2 V) ¦ 2 x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x4 ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCI (5 V) |
| Hardware Features: | WatchDog Timer |
| Hardware Monitoring: | Chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Included Accessories: | I/O back plate, 2 aerials, 2 x M.2 brackets |
| Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 1 x USB-C Gen2 ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB 3.1 Gen 2 |
| Internal Interfaces: | 1 x serial - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x USB 3.1 Gen 2 - header ¦ 1 x USB 3.1 Gen 2 - Type A |
| Manufacturer: | Supermicro |
| Max Processors Qty: | 1 |
| Max Size: | 64 GB |
| Network Controller: | Intel I210-AT / I219LM |
| Network Interfaces: | Bluetooth, 2 x Gigabit Ethernet, 802.11ac |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Processor Socket: | LGA1151 Socket |
| Product Type: | Motherboard - ATX |
| Registered or Buffered: | Unbuffered |
| Sleep / Wake Up: | Keyboard wake up, wake on LAN (WOL) |
| Software Included: | SuperDoctor 5 |
| Storage Interfaces: | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 3.0 -connectors: 1 x M.2 - 1 devices ¦ PCIe 3.0 -connectors: 1 x M.2, 1 x U.2 - 1 devices |
| Supported RAM Integrity Check: | Non-ECC, ECC |
| Technology: | DDR4 |
| Type: | HD Audio |
| Version: | original |
| Width: | 30.48 cm |
| GPSR - economic actor: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
|---|---|
| GPSR - product manufacturer: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
| GPSR - EU responsible person: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
| EU Data-Act-Url: | https://www.supermicro.com/en/support/compliance_lot_9 |
| Warnings: | Warnings Modules International.pdf |
| Safety instructions: | Safety instructions Modules International.pdf |
