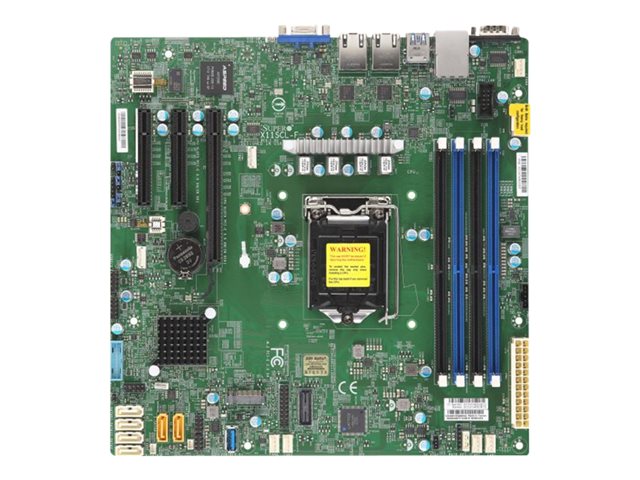

Supermicro MBD-X11SCL-F-O
X11SCL-F 1151 C242 DDR4 MATX VGA 2xGbE 6xSATA3 M.2 retail
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
X11SCL-F 1151 C242 DDR4 MATX VGA 2xGbE 6xSATA3 M.2 retail
| BIOS Features: | Power failure recovery (AC loss resume), UEFI BIOS, SMBIOS 2.7 support, IPMI 2.0 support, ACPI 6.0 support |
|---|---|
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz |
| Cables Included: | 6 x Serial ATA cable |
| Chipset Type: | Intel C242 |
| Compatible Processors: | Pentium, Celeron, Core i3, Xeon E (Maximum TDP 95 Watt) |
| Compliant Standards: | Plug and Play |
| Depth: | 24.38 cm |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 3.0 x16 (x8 mode) ¦ 2 x PCIe 3.0 x8 (x4 mode) |
| Graphics Controller: | ASPEED AST2500 |
| Hardware Monitoring: | Chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Included Accessories: | I/O back plate |
| Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x serial ¦ 1 x VGA |
| Internal Interfaces: | 1 x serial - header ¦ 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x USB 3.1 Gen 1 - Type A |
| Manufacturer: | Supermicro |
| Max Processors Qty: | 1 |
| Max Size: | 128 GB |
| Network Controller: | Intel I210 |
| Network Interfaces: | 2 x Gigabit Ethernet |
| Package Type: | Retail |
| Processor Socket: | LGA1151 Socket |
| Product Type: | Motherboard - micro ATX |
| Registered or Buffered: | Unbuffered |
| Sleep / Wake Up: | RTC (real-time clock) wake up, wake on LAN (WOL) |
| Software Included: | SuperDoctor 5 |
| Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 3.0 -connectors: 1 x M.2 |
| Supported RAM Integrity Check: | ECC |
| Technology: | DDR4 |
| Version: | original |
| Width: | 24.38 cm |
| GPSR - economic actor: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
|---|---|
| GPSR - product manufacturer: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
| GPSR - EU responsible person: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
| EU Data-Act-Url: | https://www.supermicro.com/en/support/compliance_lot_9 |
| Warnings: | Warnings Modules International.pdf |
| Safety instructions: | Safety instructions Modules International.pdf |
