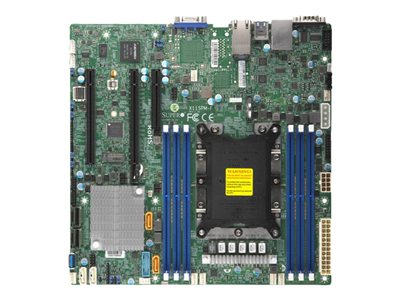

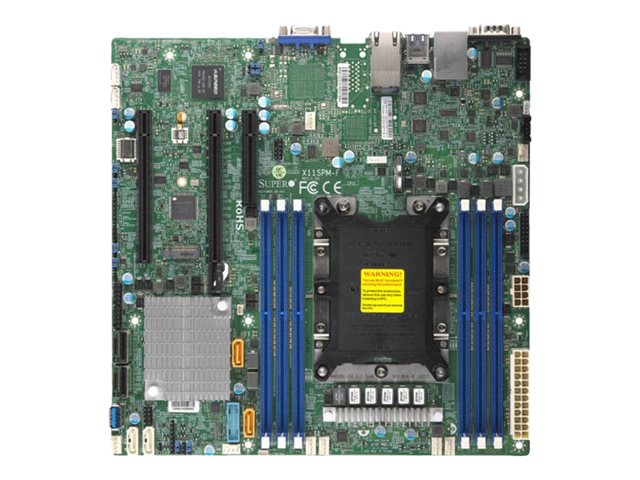

Supermicro MBD-X11SPM-F-O
X11SPM-F C621 DDR4 M.2 MATX VGA 2xGbE 16xSATA retail
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
X11SPM-F C621 DDR4 M.2 MATX VGA 2xGbE 16xSATA retail
| BIOS Features: | Power failure recovery (AC loss resume), UEFI BIOS, IPMI 2.0 support, SMBIOS 3.0 support, ACPI 6.0 support |
|---|---|
| BIOS Type: | AMI |
| Bus Clock: | 2400 MHz, 1600 MHz, 1866 MHz, 2133 MHz, 2666 MHz |
| Cables Included: | 2 x Serial ATA cable |
| Chipset Type: | Intel C621 |
| Compatible Processors: | Xeon (supports CPUs with up to 28 cores, Maximum TDP 165 Watt) |
| Compliant Standards: | RoHS |
| Depth: | 24.38 cm |
| Details: | 768 GB - 3DS Load-Reduced - ECC ¦ 384 GB - Load-Reduced - ECC ¦ 192 GB - registered - ECC |
| Expansion Slots: | 1 x CPU ¦ 6 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 3.0 x8 ¦ 2 x PCIe 3.0 x16 |
| Graphics Controller: | ASPEED AST2500 |
| Hardware Features: | Diagnostic LEDs, WatchDog Timer |
| Hardware Monitoring: | Chassis fan tachometer, system voltage, CPUoverheating protection, CPU core voltage |
| Included Accessories: | I/O back plate |
| Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.0 ¦ 2 x USB 2.0 ¦ 1 x VGA ¦ 1 x serial ¦ 1 x management |
| Internal Interfaces: | 1 x serial - header ¦ 1 x USB 3.0 - Type A ¦ 4 x USB 2.0 - header ¦ 2 x USB 3.0 - header |
| Manufacturer: | Supermicro |
| Max Processors Qty: | 1 |
| Max Size: | 768 GB |
| Network Interfaces: | 2 x Gigabit Ethernet |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector, 4-pin auxiliary power connector, DC-in power connector |
| Processor Socket: | Socket P |
| Product Type: | Motherboard - micro ATX |
| Registered or Buffered: | Registered, Load-Reduced, 3DS Load-Reduced |
| Sleep / Wake Up: | RTC (real-time clock) wake up, wake on LAN (WOL) |
| Storage Interfaces: | Intel C621: SATA-600 -connectors: 12 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 3.0 -connectors: 1 x M.2 |
| Supported RAM Integrity Check: | ECC |
| Technology: | DDR4 |
| Version: | original |
| Width: | 24.38 cm |
| GPSR - economic actor: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
|---|---|
| GPSR - product manufacturer: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
| GPSR - EU responsible person: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
| EU Data-Act-Url: | https://www.supermicro.com/en/support/compliance_lot_9 |
| Warnings: | Warnings Modules International.pdf |
| Safety instructions: | Safety instructions Modules International.pdf |
