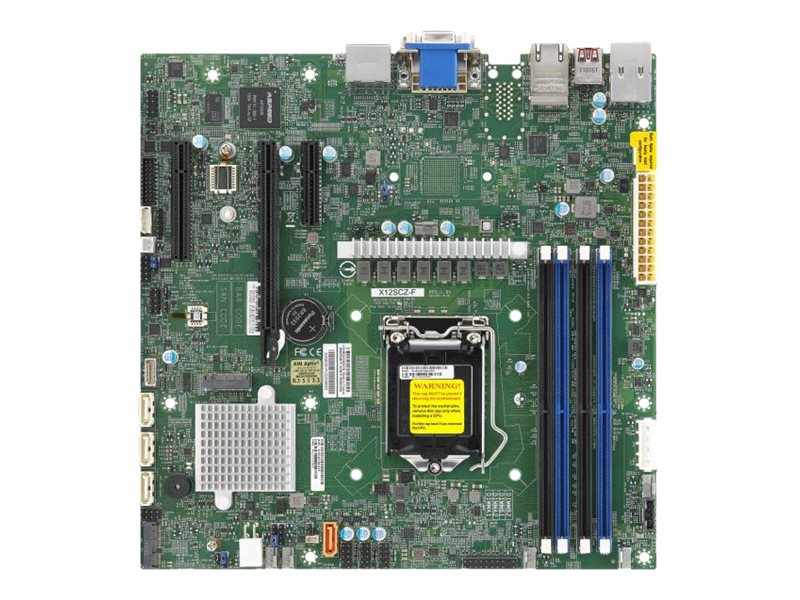

Supermicro MBD-X12SCZ-F-B
X12SCZ-F W480 DDR4 IPMI mATX M.2 VGA/DP 2xGbE 4xSATA3 1pack
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
X12SCZ-F W480 DDR4 IPMI mATX M.2 VGA/DP 2xGbE 4xSATA3 1pack
| Audio Codec: | Realtek ALC888S |
|---|---|
| BIOS Features: | UEFI BIOS, IPMI 2.0 support, ACPI 6.1 support, SMBIOS 3.1 support |
| BIOS Type: | AMI |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz |
| Cables Included: | 2 x Serial ATA cable |
| Chipset Type: | Intel W480 |
| Compatibility: | High Definition Audio |
| Compatible Processors: | Pentium, Celeron, Core i5, Core i3, Core i7, Core i9, Xeon W (supports CPUs with up to 10 cores, Maximum TDP 125 Watt) |
| Depth: | 24.38 cm |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x8 (x4 mode) ¦ 1 x PCIe 3.0 x4 ¦ 1 x M.2 socket (2230 M.2 Key E slot) |
| Graphics Controller: | ASPEED AST2500 |
| Hardware Features: | Chassis intrusion detection, WatchDog Timer, Trusted Platform Module (TPM), Intel Active Management Technology (Intel AMT) |
| Hardware Monitoring: | CPU core temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Included Accessories: | I/O back plate |
| Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 1 x serial ¦ 1 x VGA ¦ 2 x DisplayPort ¦ 1 x DVI-D ¦ 4 x USB 3.2 Gen 2 |
| Internal Interfaces: | 2 x USB 3.2 Gen 2 - header ¦ 1 x serial - header ¦ 6 x USB 2.0 - header |
| Manufacturer: | Supermicro |
| Max Processors Qty: | 1 |
| Max Size: | 128 GB |
| Network Controller: | Intel I210-AT / I219LM |
| Network Interfaces: | 2 x Gigabit Ethernet |
| Package Type: | Bulk |
| Power Connectors: | 24-pin main power connector, DC-in power connector |
| Processor Socket: | LGA1200 Socket |
| Product Type: | Motherboard - micro ATX |
| Registered or Buffered: | Unbuffered |
| Sleep / Wake Up: | RTC (real-time clock) wake up |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Supported RAM Integrity Check: | Non-ECC, ECC |
| Technology: | DDR4 |
| Type: | HD Audio |
| Version: | original |
| Width: | 24.38 cm |
| GPSR - economic actor: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe @ supermicro.com |
|---|---|
| GPSR - product manufacturer: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe @ supermicro.com |
| GPSR - EU responsible person: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe @ supermicro.com |
| Warnings: | Warnings Modules International.pdf |
| Safety instructions: | Safety instructions Modules International.pdf |
