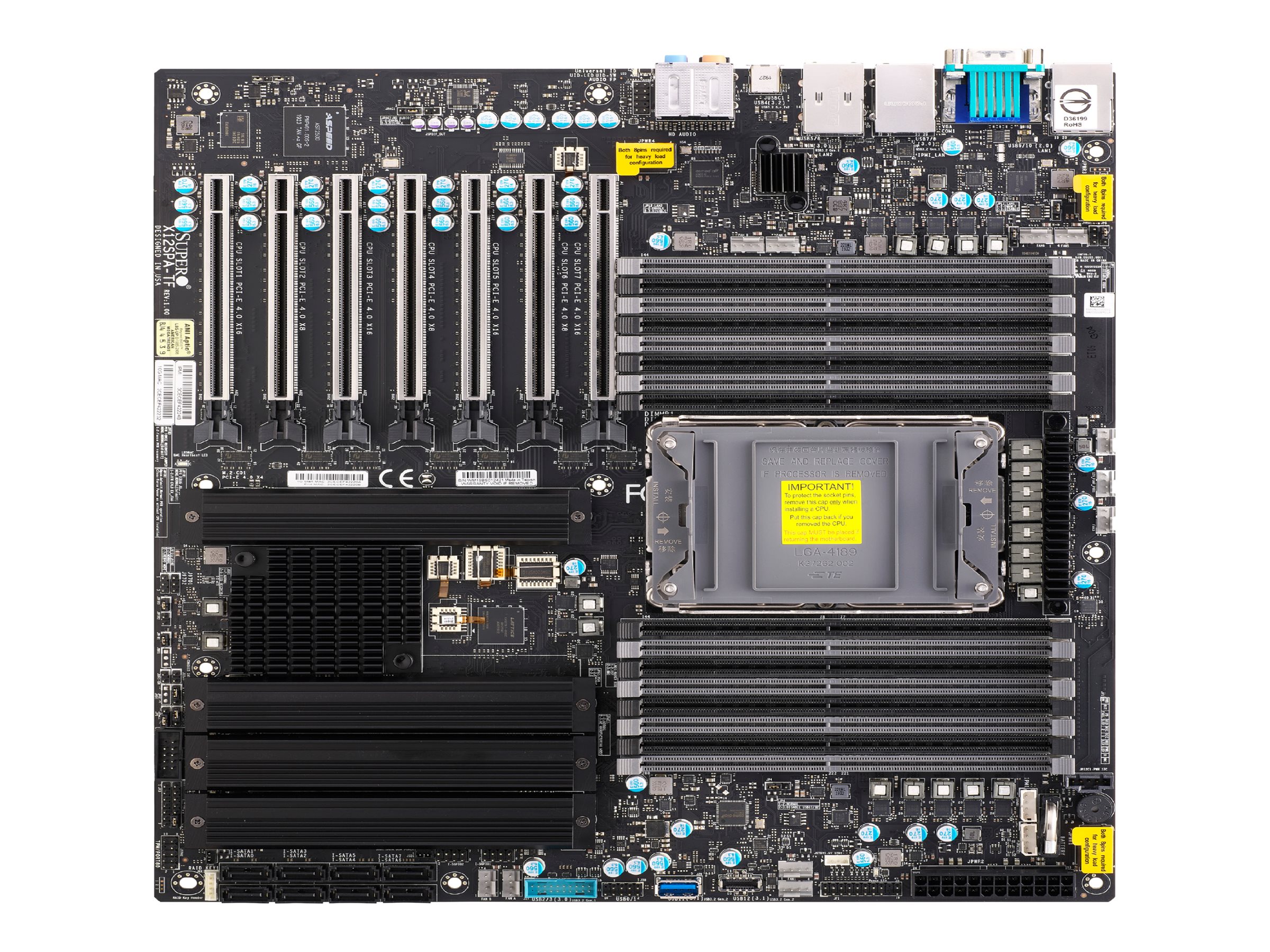

Supermicro MBD-X12SPA-TF-B
X12SPA-TF W3300L C621A 4189 E-A
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
X12SPA-TF W3300L C621A 4189 E-A
| Audio Codec: | Realtek ALC888S |
|---|---|
| BIOS Features: | Power failure recovery (AC loss resume), ACPI 3.0 support, ACPI 4.0 support, SMBIOS 2.7 support, IPMI 2.0 support |
| BIOS Type: | AMI |
| Bus Clock: | 3200 MHz |
| Cables Included: | 2 x Serial ATA cable |
| Chipset Type: | Intel C621A |
| Compatibility: | High Definition Audio |
| Compatible Processors: | Xeon (Maximum TDP 270 Watt, supports CPUs with up to 40 cores) |
| Depth: | 30.48 cm |
| Designed For: | Supermicro SC743 AC-1K26B-SQ ¦ Supermicro SC747 BTQ-R2K04B |
| Expansion Slots: | 1 x CPU ¦ 16 x DIMM 288-pin (1.2 V) ¦ 4 x PCIe 4.0 x16 ¦ 3 x PCIe 4.0 x8 |
| Graphics Controller: | ASPEED AST2500 |
| Hardware Monitoring: | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Included Accessories: | I/O back plate |
| Interfaces: | 1 x LAN (Gigabit Ethernet) ¦ 1 x management ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x USB-C Gen2x2 ¦ 1 x VGA ¦ 2 x USB 2.0 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x serial |
| Internal Interfaces: | 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x serial - header |
| Manufacturer: | Supermicro |
| Max Processors Qty: | 1 |
| Max Size: | 4 TB |
| Network Controller: | Marvell AQC113C / Intel I210-AT |
| Network Interfaces: | 10 Gigabit Ethernet, Gigabit Ethernet |
| Package Type: | Bulk |
| Processor Socket: | LGA4189 Socket |
| Product Type: | Motherboard - extended ATX |
| Registered or Buffered: | 3DS Load-Reduced, 3DS registered, Optane DC Persistent |
| Sleep / Wake Up: | RTC (real-time clock) wake up |
| Storage Interfaces: | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 4 x M.2 |
| Supported RAM Integrity Check: | ECC |
| Technology: | DDR4 |
| Type: | HD Audio |
| Version: | original |
| Width: | 33.02 cm |
| GPSR - economic actor: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe @ supermicro.com |
|---|---|
| GPSR - product manufacturer: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe @ supermicro.com |
| GPSR - EU responsible person: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe @ supermicro.com |
| Warnings: | Warnings Modules International.pdf |
| Safety instructions: | Safety instructions Modules International.pdf |
