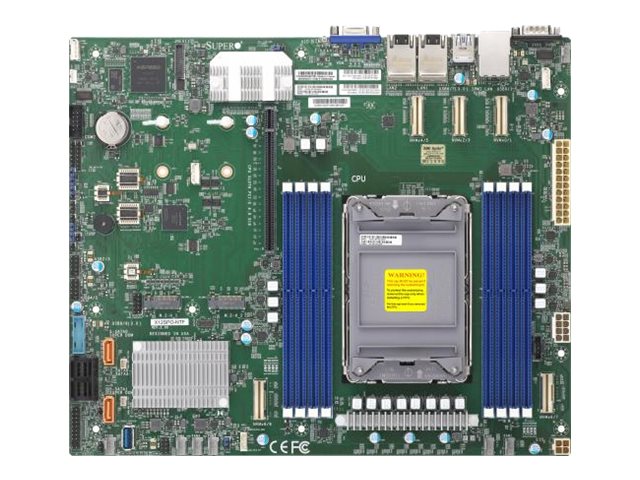

Supermicro MBD-X12SPO-NTF-O
X12SPO-NTF C621 DDR4 M.2 ATX VGA 2xGbE 10xSATA 1 pack
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
X12SPO-NTF C621 DDR4 M.2 ATX VGA 2xGbE 10xSATA 1 pack
| BIOS Features: | Power failure recovery (AC loss resume), UEFI BIOS, IPMI 2.0 support, SMBIOS 3.0 support, ACPI 6.2 support |
|---|---|
| BIOS Type: | AMI |
| Bus Clock: | 2666 MHz, 2933 MHz, 3200 MHz |
| Cables Included: | 2 x Serial ATA cable |
| Chipset Type: | Intel C621A |
| Compatible Processors: | Xeon (Maximum TDP 270 Watt, supports CPUs with up to 40 cores) |
| Compliant Standards: | RoHS |
| Depth: | 25.4 cm |
| Expansion Slots: | 1 x CPU ¦ 8 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 4.0 x16 |
| Graphics Controller: | ASPEED AST2600 |
| Hardware Monitoring: | CPU core temperature, system voltage, CPU core voltage |
| Included Accessories: | I/O back plate |
| Interfaces: | 2 x LAN (10Gigabit Ethernet) ¦ 1 x VGA ¦ 2 x USB 2.0 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x serial |
| Internal Interfaces: | 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x USB 3.2 Gen 1 - Type A |
| Manufacturer: | Supermicro |
| Max Processors Qty: | 1 |
| Max Size: | 2 TB |
| Network Controller: | Intel X550 |
| Network Interfaces: | 2 x 10 Gigabit Ethernet |
| Package Type: | Retail |
| Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Processor Socket: | LGA4189 Socket |
| Product Type: | Motherboard - ATX |
| Registered or Buffered: | Registered, Load-Reduced, 3DS Load-Reduced, 3DS registered, Optane DC Persistent |
| Sleep / Wake Up: | Wake on LAN (WOL) |
| Storage Interfaces: | SATA-600 - 10 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 |
| Supported RAM Integrity Check: | ECC |
| Technology: | DDR4 |
| Version: | original |
| Width: | 30.48 cm |
| GPSR - economic actor: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe @ supermicro.com |
|---|---|
| GPSR - product manufacturer: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe @ supermicro.com |
| GPSR - EU responsible person: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe @ supermicro.com |
| Warnings: | Warnings Modules International.pdf |
| Safety instructions: | Safety instructions Modules International.pdf |
X12SPO-NTF C621 DDR4 M.2 ATX VGA 2xGbE 10xSATA 1 pack
| BIOS Features: | Power failure recovery (AC loss resume), UEFI BIOS, IPMI 2.0 support, SMBIOS 3.0 support, ACPI 6.2 support |
|---|---|
| BIOS Type: | AMI |
| Bus Clock: | 2666 MHz, 2933 MHz, 3200 MHz |
| Cables Included: | 2 x Serial ATA cable |
| Chipset Type: | Intel C621A |
| Compatible Processors: | Xeon (Maximum TDP 270 Watt, supports CPUs with up to 40 cores) |
| Compliant Standards: | RoHS |
| Depth: | 25.4 cm |
| Expansion Slots: | 1 x CPU ¦ 8 x DIMM 288-pin (1.2 V) ¦ 1 x PCIe 4.0 x16 |
| Graphics Controller: | ASPEED AST2600 |
| Hardware Monitoring: | CPU core temperature, system voltage, CPU core voltage |
| Included Accessories: | I/O back plate |
| Interfaces: | 2 x LAN (10Gigabit Ethernet) ¦ 1 x VGA ¦ 2 x USB 2.0 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x serial |
| Internal Interfaces: | 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x USB 3.2 Gen 1 - Type A |
| Manufacturer: | Supermicro |
| Max Processors Qty: | 1 |
| Max Size: | 2 TB |
| Network Controller: | Intel X550 |
| Network Interfaces: | 2 x 10 Gigabit Ethernet |
| Package Type: | Retail |
| Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Processor Socket: | LGA4189 Socket |
| Product Type: | Motherboard - ATX |
| Registered or Buffered: | Registered, Load-Reduced, 3DS Load-Reduced, 3DS registered, Optane DC Persistent |
| Sleep / Wake Up: | Wake on LAN (WOL) |
| Storage Interfaces: | SATA-600 - 10 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 |
| Supported RAM Integrity Check: | ECC |
| Technology: | DDR4 |
| Version: | original |
| Width: | 30.48 cm |
| GPSR - economic actor: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe @ supermicro.com |
|---|---|
| GPSR - product manufacturer: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe @ supermicro.com |
| GPSR - EU responsible person: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe @ supermicro.com |
