Supermicro MBD-X13SAQ-B

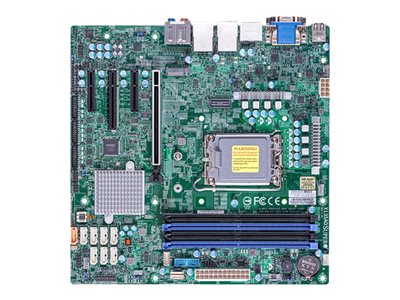

Supermicro Motherboard MBD-X13SAQ Q670E LGA1700 Maximum 128GB DDR5 Micro-ATX
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Supermicro Motherboard MBD-X13SAQ Q670E LGA1700 Maximum 128GB DDR5 Micro-ATX
| Audio Codec: | Realtek ALC888S |
|---|---|
| BIOS Features: | UEFI BIOS, SMBIOS 3.0 support, ACPI 6.1 support, PCI FW 3.0 support, UEFI 2.7 support |
| BIOS Type: | AMI |
| Bus Clock: | 4000 MHz, 3600 MHz, 4400 MHz |
| Cables Included: | 8 x Serial ATA cable |
| Chipset Type: | Intel Q670E |
| Compatibility: | High Definition Audio, Intel vPro |
| Compatible Processors: | Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (supports 12th and 13th Generation Intel Core / Pentium / Celeron, supports CPUs with up to 16 cores, Maximum TDP 125 Watt) |
| Compliant Standards: | RoHS, DisplayPort 1.4a |
| Depth: | 24.38 cm |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin (1.1 V) ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x8 (x4 mode) ¦ 1 x PCIe 3.0 x4 ¦ 1 x PCIe 3.0 x4 (x2 mode) ¦ 1 x PCIe 4.0 x4 (SlimSAS) ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) |
| Hardware Features: | Chassis intrusion detection, WatchDog Timer, Intel Active Management Technology (Intel AMT), Trusted Platform Module (TPM) 2.0 |
| Hardware Monitoring: | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Included Accessories: | IO shield |
| Interfaces: | 2 x LAN (2.5Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 2 x USB 3.1 Gen 2 ¦ 2 x USB-C 3.2 Gen2x2 ¦ 1 x VGA ¦ 1 x DVI-D ¦ 1 x DisplayPort ¦ 1 x HDMI |
| Internal Interfaces: | 2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 2 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 6 x serial - header |
| Manufacturer: | Supermicro |
| Max Processors Qty: | 1 |
| Max Size: | 128 GB |
| Network Controller: | 2 x Intel I225LM |
| Network Interfaces: | 2 x 2.5 Gigabit Ethernet |
| Package Type: | Bulk |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Processor Socket: | LGA1700 Socket |
| Product Type: | Motherboard - micro ATX |
| Registered or Buffered: | Unbuffered |
| Sleep / Wake Up: | RTC (real-time clock) wake up, wake on LAN (WOL) |
| Software Included: | SuperDoctor 5 |
| Storage Interfaces: | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 |
| Supported RAM Integrity Check: | Non-ECC |
| Technology: | DDR5 |
| Type: | HD Audio |
| Version: | original |
| Width: | 24.38 cm |
| GPSR - economic actor: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
|---|---|
| GPSR - product manufacturer: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
| GPSR - EU responsible person: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
| EU Data-Act-Url: | https://www.supermicro.com/en/support/compliance_lot_9 |
| Warnings: | Warnings Modules International.pdf |
| Safety instructions: | Safety instructions Modules International.pdf |
