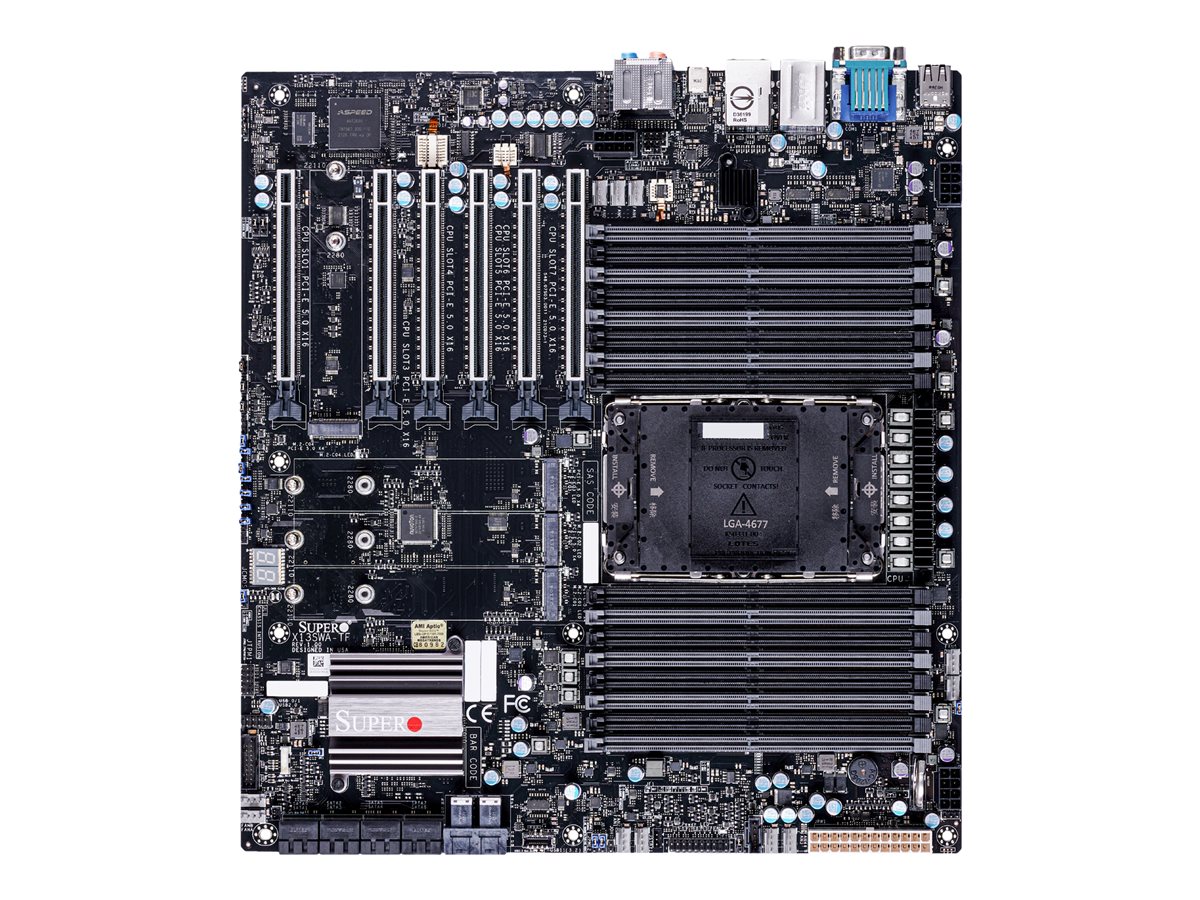

Supermicro MBD-X13SWA-TF-O
Motherboard MBD-X13SWA-TF Intel W790 Socket LGA-4677 Max.4TB DDR5 E-ATX
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Motherboard MBD-X13SWA-TF Intel W790 Socket LGA-4677 Max.4TB DDR5 E-ATX
| Audio Codec: | Realtek ALC888S |
|---|---|
| BIOS Features: | Power failure recovery (AC loss resume), SMBIOS 3.0 support, ACPI 6.0 support, PnP support |
| BIOS Type: | AMI |
| Bus Clock: | 4800 MHz, 4400 MHz |
| Cables Included: | 6 x Serial ATA cable ¦ 1 x GPU to CPU power cable |
| Chipset Type: | Intel W790 |
| Compatibility: | High Definition Audio |
| Compatible Processors: | Xeon Scalable (supports 4th Generation Intel Xeon Scalable, supports CPUs with up to 56 cores, Maximum TDP 350 Watt) |
| Compliant Standards: | RoHS |
| Depth: | 33.02 cm |
| Expansion Slots: | 1 x CPU ¦ 16 x DIMM 288-pin (1.1 V) ¦ 6 x PCIe 5.0 x16 ¦ 4 x M.2 socket (2280/22110 M.2 Key M slot) |
| Graphics Controller: | ASPEED AST2600 |
| Hardware Features: | Chassis intrusion detection, Intel VROC support |
| Hardware Monitoring: | CPU core temperature, chassis temperature, system voltage, fan control |
| Included Accessories: | IO shield, CPU carrier (MCC), CPU carrier (XCC) |
| Interfaces: | 1 x serial ¦ 1 x IPMI ¦ 4 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x USB 2.0 |
| Internal Interfaces: | 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x SPI - header ¦ 2 x USB 2.0 - header ¦ 1 x USB 3.2 Gen 1 - header |
| Manufacturer: | Supermicro |
| Max Processors Qty: | 1 |
| Max Size: | 4 TB |
| Network Controller: | Marvell AQC113C / Intel I210-AT |
| Network Interfaces: | 10 Gigabit Ethernet, Gigabit Ethernet |
| Package Type: | Retail |
| Power Connectors: | 24-pin main power connector, 3 x 8-pin ATX12V connectors |
| Processor Socket: | LGA4677 Socket-E |
| Product Type: | Motherboard - extended ATX |
| Registered or Buffered: | Registered, 3DS registered |
| Software Included: | SuperDoctor 5 |
| Storage Interfaces: | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 3.0 -connectors: 2 x U.2 |
| Supported RAM Integrity Check: | ECC |
| Technology: | DDR5 |
| Type: | 8-channel audio |
| Version: | original |
| Width: | 30.48 cm |
| GPSR - economic actor: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
|---|---|
| GPSR - product manufacturer: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
| GPSR - EU responsible person: | Super Micro , Niederlande, Het Sterrenbeeld 28, s-Hertogenbosch, 5215 ML, Sales_Europe@supermicro.com |
| EU Data-Act-Url: | https://www.supermicro.com/en/support/compliance_lot_9 |
| Warnings: | Warnings Modules International.pdf |
| Safety instructions: | Safety instructions Modules International.pdf |
