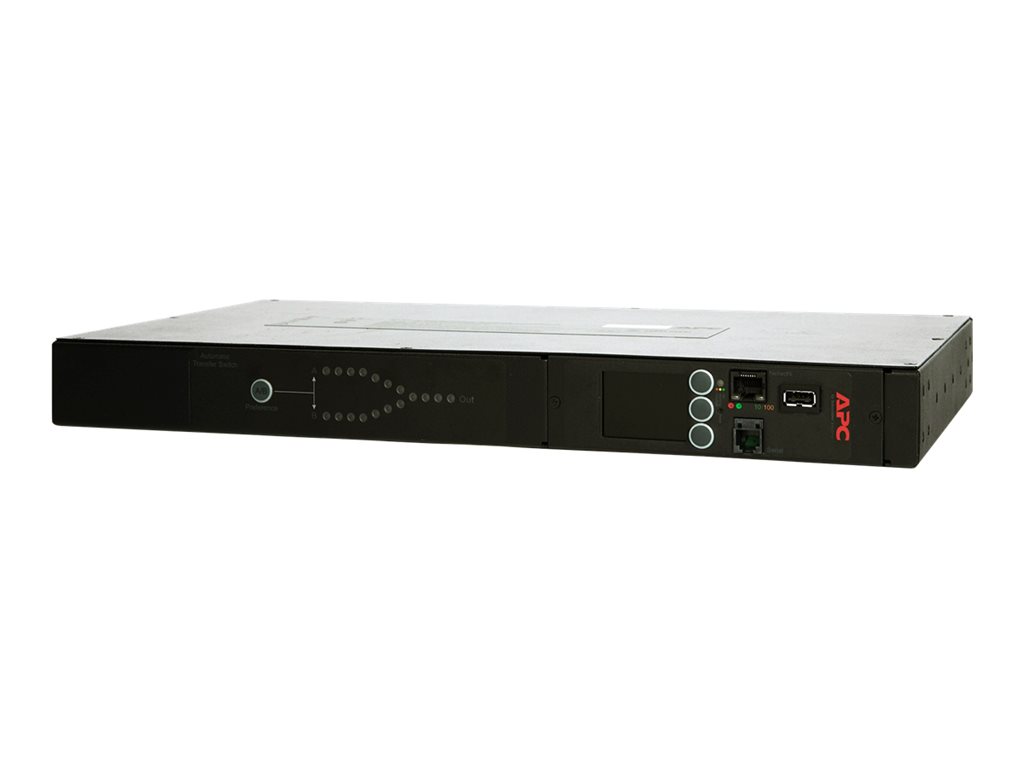

APC AP4434
Rack ATS, 208V, 20A, C20 in, (8) C13 (1) C19 out
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Rack ATS, 208V, 20A, C20 in, (8) C13 (1) C19 out
| Cables Included: | Serial cable - external |
|---|---|
| Compliant Standards: | RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EMC 2004/108/EC, LVD 2006/95/EC, EMC 2014/30/EU, LVD 2014/35/EU |
| Depth: | 23.62 cm |
| Designed For: | P/N: AP6221CH, AP7950B, AR106, AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR2487G, AR3003, AR3003SP, AR3006, AR3006SP, AR3100W, AR3103, AR3103SP, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, A |
| Device Type: | Redundant switch - rack-mountable |
| Enclosure Colour: | Black |
| Features: | Current meter, LED indicators, short-circuit protection |
| Frequency Required: | 50/60 Hz |
| Height: | 4.37 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Included Accessories: | Mounting kit, rack mounting brackets |
| Input Connectors: | 2 x power IEC 60320 C20 |
| Input Voltage: | AC 208 V |
| Input Voltage Range: | ± 10% |
| Interfaces: | 1 x management (RS-232) ¦ 1 x management (Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A |
| Manufacturer: | APC Schneider |
| Max Electric Current: | 20 A |
| Max Operating Temperature: | 45 °C |
| Min Operating Temperature: | -5 °C |
| Power Output Connectors Details: | 8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19 |
| Rack Mounting Kit: | Included |
| Remote Management Interface: | Ethernet 10/100, RS-232, USB |
| Remote Management Protocol: | SNMP, Telnet, HTTP, SSH |
| Shipping Depth: | 35.56 cm |
| Shipping Height: | 11.43 cm |
| Shipping Weight: | 5.51 kg |
| Shipping Width: | 60.02 cm |
| Version: | original |
| Weight: | 3.74 kg |
| Width: | 43.18 cm |
| GPSR - economic actor: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
|---|---|
| GPSR - product manufacturer: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
| GPSR - EU responsible person: | Schneider Electric GmbH, Deutschland, Gothaer Str. 29, Ratingen, 40880, esupport.emeade @ schneider-electric.com |
| Warnings: | Warnings Power Supplies International.pdf |
| Safety instructions: | Safety instructions Power Supplies International.pdf |
