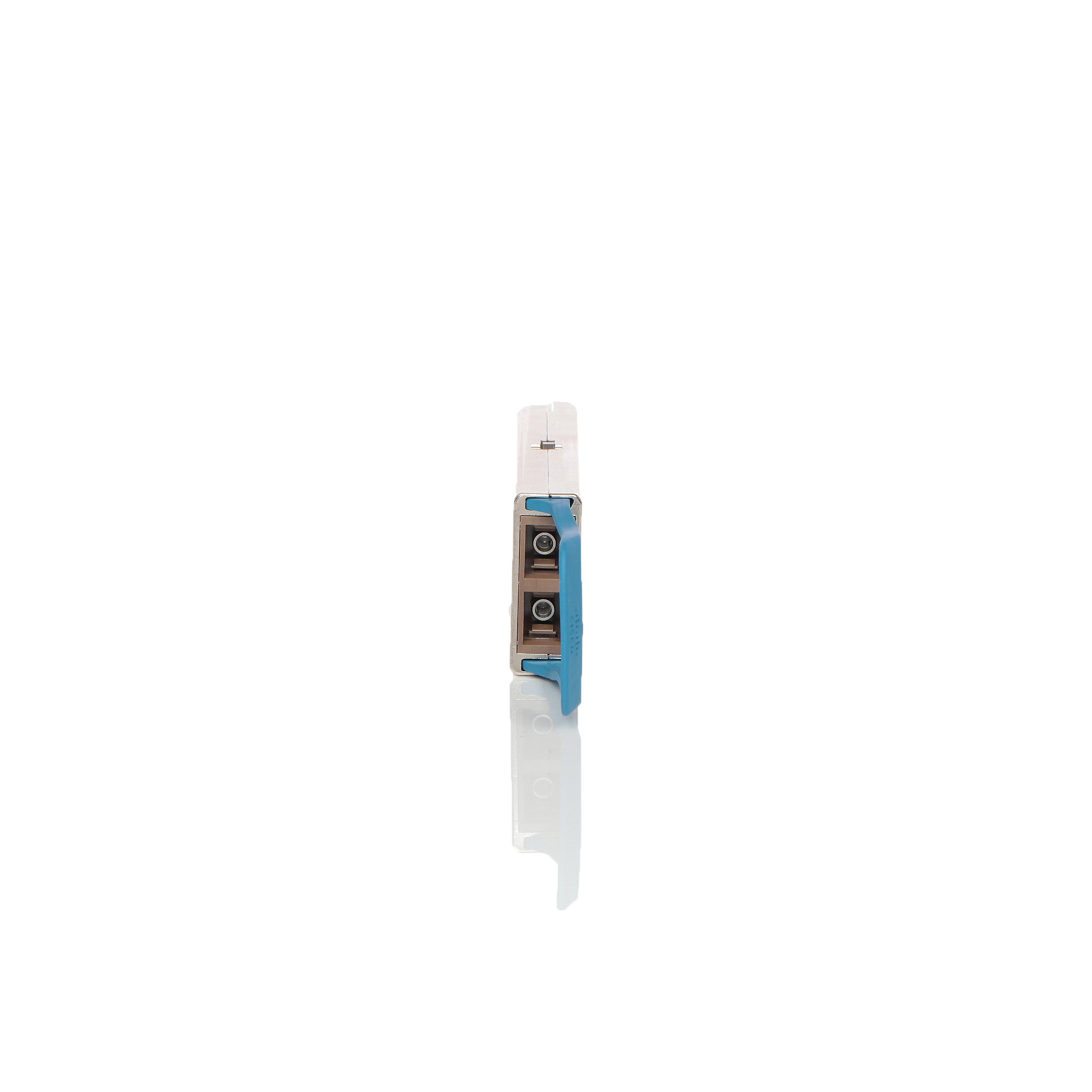

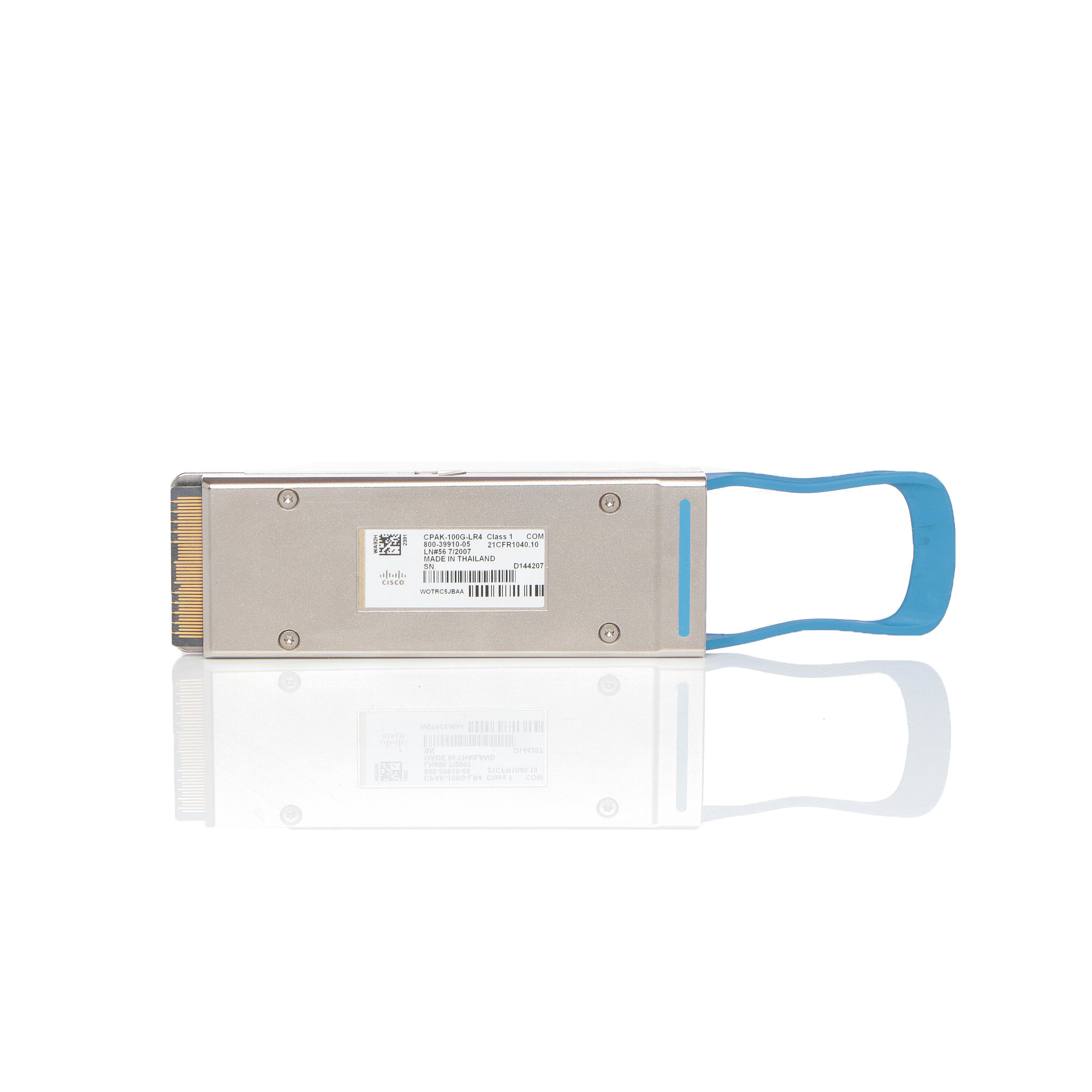

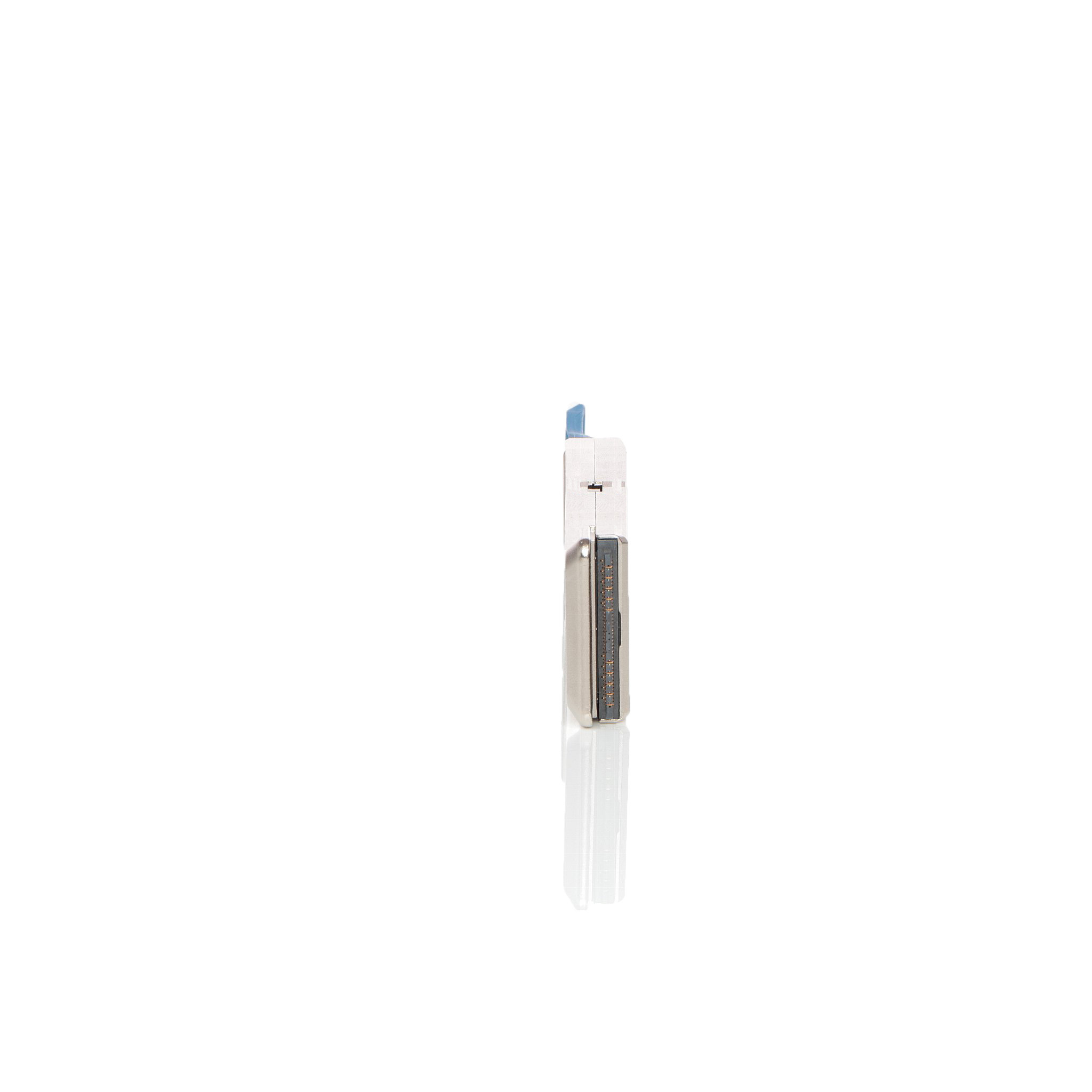

Cisco CPAK-100G-LR4
CPAK-100G-LR4 Transceiver module, 10km SMF
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
CPAK-100G-LR4 Transceiver module, 10km SMF
| Cabling Type: | 100GBase-LR4 |
|---|---|
| Compliant Standards: | RoHS, Laser Class 1, FCC CFR21 Part 1040, IEC 60825-1, GR-326-CORE, GR-20-CORE, GR-1435-CORE |
| Compliant Standards: | IEEE 802.3ba |
| Connectivity Technology: | Wired |
| Data Link Protocol: | 100 Gigabit Ethernet |
| Data Transfer Rate: | 100 Gbps |
| Depth: | 10.12 cm |
| Designed For: | Cisco CRS LAN/OTN Flexible Interface Module, CRS-X LAN/OTN, Service Edge Optimized Line Card ¦ Cisco Network Convergence System 4000 Series CP-DQPSK - Full C Band Tunable Line Card, 4000 Series Optical Transport Network Line Card, 4000 Series Optical Tran |
| Device Type: | CPAK transceivermodule |
| Features: | Digital Optical Monitoring (DOM) support |
| Form Factor: | Plug-in module |
| Height: | 1.16 cm |
| Interfaces: | 1 x Ethernet 100GBase-LR4 - SC/PC single-mode female x 2 |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 70 °C |
| Max Transfer Distance: | 10 km |
| Min Operating Temperature: | 0 °C |
| Optical Wave Length: | 1310 nm |
| Version: | original |
| Weight: | 127 g |
| Width: | 3.48 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Transceiver International.pdf |
| Safety instructions: | Safety instructions Transceiver International.pdf |
CPAK-100G-LR4 Transceiver module, 10km SMF
| Cabling Type: | 100GBase-LR4 |
|---|---|
| Compliant Standards: | RoHS, Laser Class 1, FCC CFR21 Part 1040, IEC 60825-1, GR-326-CORE, GR-20-CORE, GR-1435-CORE |
| Compliant Standards: | IEEE 802.3ba |
| Connectivity Technology: | Wired |
| Data Link Protocol: | 100 Gigabit Ethernet |
| Data Transfer Rate: | 100 Gbps |
| Depth: | 10.12 cm |
| Designed For: | Cisco CRS LAN/OTN Flexible Interface Module, CRS-X LAN/OTN, Service Edge Optimized Line Card ¦ Cisco Network Convergence System 4000 Series CP-DQPSK - Full C Band Tunable Line Card, 4000 Series Optical Transport Network Line Card, 4000 Series Optical Tran |
| Device Type: | CPAK transceivermodule |
| Features: | Digital Optical Monitoring (DOM) support |
| Form Factor: | Plug-in module |
| Height: | 1.16 cm |
| Interfaces: | 1 x Ethernet 100GBase-LR4 - SC/PC single-mode female x 2 |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 70 °C |
| Max Transfer Distance: | 10 km |
| Min Operating Temperature: | 0 °C |
| Optical Wave Length: | 1310 nm |
| Version: | original |
| Weight: | 127 g |
| Width: | 3.48 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
