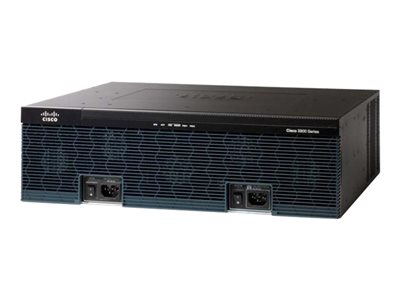

Cisco C3945E-VSEC-CUBEK9
C3945E UC SEC CUBE Bundle, PVDM3-64, UC SEC Lic, FL-CUBEE-25
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
C3945E UC SEC CUBE Bundle, PVDM3-64, UC SEC Lic, FL-CUBEE-25
| Authentication Method: | RADIUS |
|---|---|
| Capacity: | Cisco Unified Communications Manager Express sessions: 250 ¦ Cisco Unified SRST sessions: 1500 |
| Compliant Standards: | IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22. |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 43.8 cm |
| Device Type: | Router |
| Digital Ports Qty: | 64 |
| Enclosure Type: | Desktop - modular - 3U |
| Encryption Algorithm: | SSL, TLS |
| Expansion Slots: | 3 (total) / 3 (free) x EHWIC ¦ 3 (total) / 2 (free) x PVDM ¦ 2 (total) / 1 (free) x CompactFlash |
| Features: | Firewall protection, NAT support, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN) |
| Flash Memory: | 256 MB (installed) / 8 GB (max) |
| Height: | 13.3 cm |
| Humidity Range Operating: | 5 - 85% |
| IP Telephony Features: | Call forwarding, automatic fax/modem detection and pass-through, call hold, call transfer, DTMF generation/detection |
| Interfaces: | 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ Management: 1 x console - mini-USB Type B ¦ Serial: 1 x auxiliary - RJ-45 ¦ USB: 2 x 4 pin USB Type A ¦ 2 x SFP (mini-GBIC) |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | TCP/IP, UDP/IP, RSVP, IPSec, PPPoE, L2TPv3 |
| Power Device: | Internal power supply |
| Protocols & Specifications: | ITU T.38 |
| RAM: | 1 GB (installed) / 2 GB (max) |
| Remote Management Protocol: | SNMP, RMON |
| Routing Protocol: | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
| Software Included: | Cisco IOS Unified Communications, Cisco IOS Security, Cisco Unified Border Element Enterprise Edition (25 sessions) |
| Status Indicators: | Power, link/activity |
| Type: | Voice / fax module |
| Version: | original |
| VoIP Protocols: | H.323, SIP |
| Voice Codecs: | G.711, G.722, G.723, G.728, G.729, G.729a, G.729ab, G.711u, G.711a, G.726, iLBC |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 17.7 kg |
| Width: | 47.6 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Routers International.pdf |
| Safety instructions: | Safety instructions Routers International.pdf |
