Fortinet FG-40F
5 x GE RJ45 ports (including , 1 x WAN Port, 4 x Internal Ports)
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
5 x GE RJ45 ports (including , 1 x WAN Port, 4 x Internal Ports)
| Capacity: | Latency: 4 µs ¦ Concurrent sessions: 700000 ¦ New sessions: 35000 ¦ Firewall policies: 5000 ¦ Gateway to gateway IPSec VPN Tunnels: 200 ¦ Client to gateway IPSec VPN tunnels: 250 ¦ Virtual domains: 10 ¦ Number of FortiSwitches: 8 ¦ Number of FortiAP devic |
|---|---|
| Compliant Standards: | UL, VCCI, C-Tick, cUL, CB, FCC Part 15 Class B |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 14 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL, TLS 1.3 |
| Features: | Firewall protection, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), fanless, web threat protection, FortiLink Mode |
| Form Factor: | Desktop |
| Height: | 3.65 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Installed Qty: | 1 |

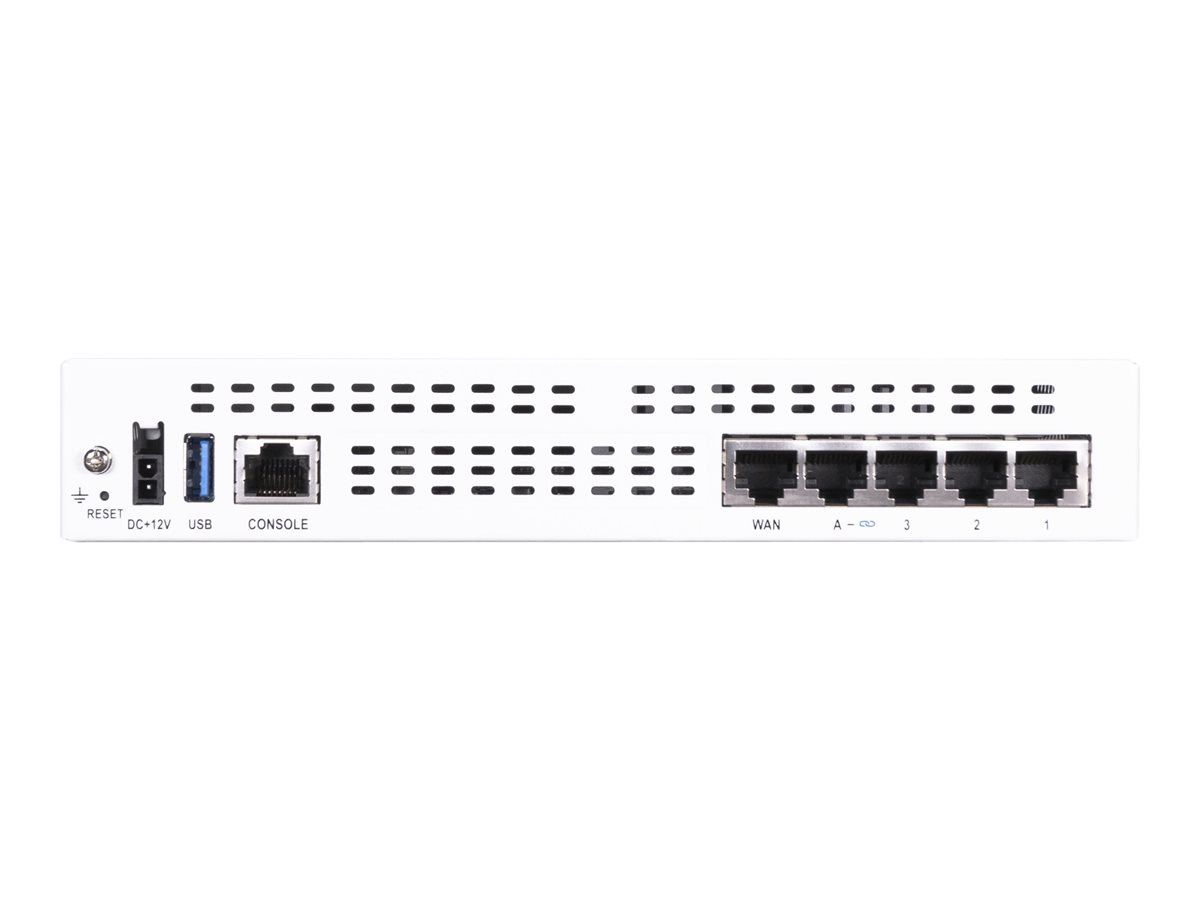

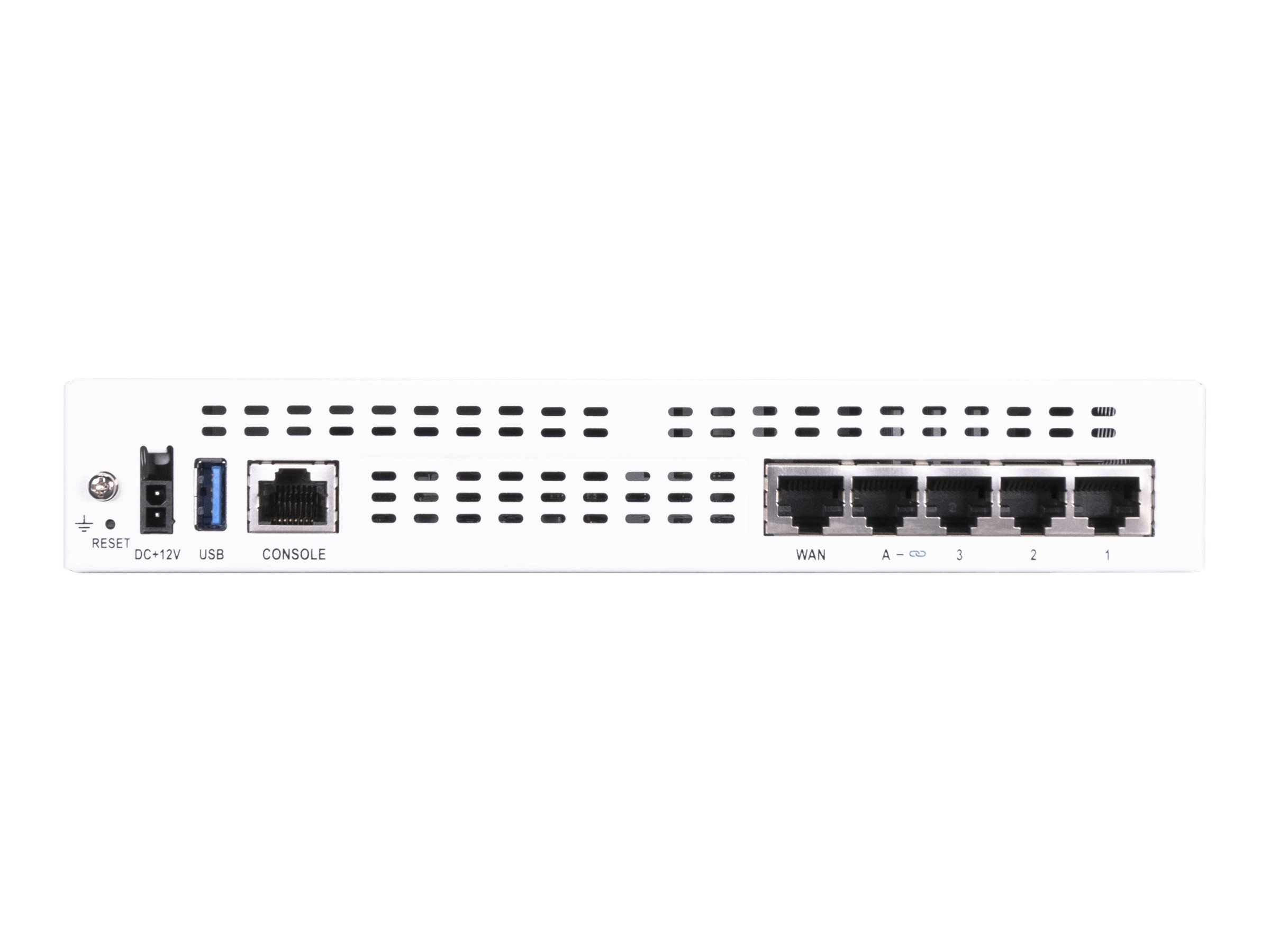

| Interfaces: | 3 x 1000Base-T - RJ-45 ¦ 1 x FortiLink - RJ-45 ¦ 1 x 1000Base-T - RJ-45 (WAN / DMZ) ¦ 1 x console - RJ-45 ¦ 1 x USB 3.0 - Type A |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec |
| OS Provided: | FortiOS |
| Performance: | IPS throughput: 1 Gbps ¦ NGFW throughput: 800 Mbps ¦ Threat protection throughput: 600 Mbps ¦ VPN throughput (512-bit IPSec): 4.4 Gbps ¦ SSL inspection throughput: 310 Mbps ¦ SSL inspection throughput: 320 connections per second ¦ Firewall throughput (151 |
| Power Consumption Operational: | 16.6 Watt |
| Power Device: | External power adapter |
| Processors Installed: | 1 x Fortinet FortiASIC SOC4 |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Width: | 21.6 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Routers International.pdf |
| Safety instructions: | Safety instructions Routers International.pdf |
