Mikrotik CCR1036-12G-4S

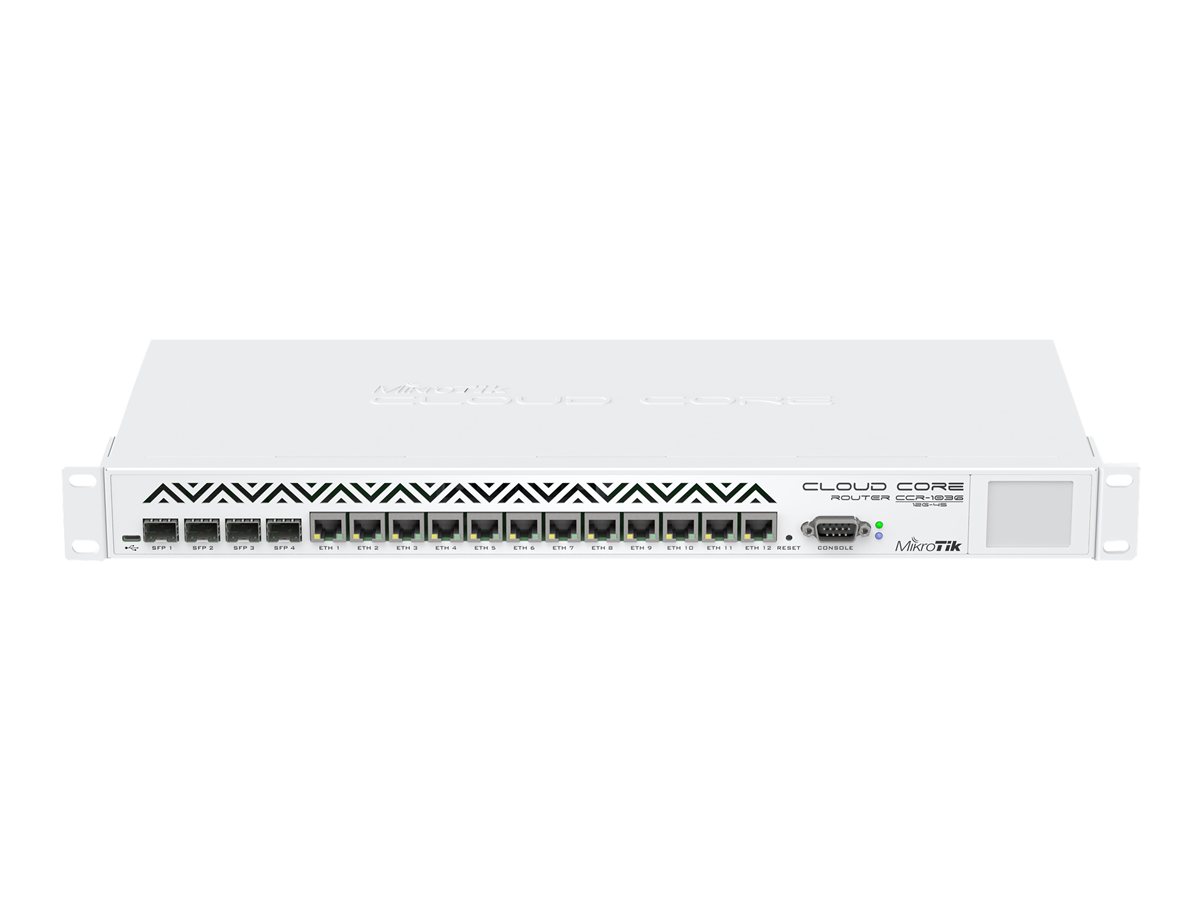

MikroTik Cloud Core Router CCR1036-12G-4S (Rev. 2)
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
MikroTik Cloud Core Router CCR1036-12G-4S (Rev. 2)
| Built-in Devices: | Status LCD, touch screen display |
|---|---|
| Cables Included: | 1 x USB cable |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 14.5 cm |
| Device Type: | Router - 12-port switch (integrated) |
| Enclosure Type: | Rack-mountable - 1U |
| Expansion Slots: | 2 (total) / 0 (free) x SO-DIMM 200-pin |
| Features: | Firewall protection, load balancing, auto-uplink (auto MDI/MDI-X), built-in hot-spot detector, Quality of Service (QoS), MPLS VPN, port configuration |
| Flash Memory: | 1 GB |
| Height: | 5.5 cm |
| Interfaces: | LAN: 12 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 1 x RS-232C - 9 pin D-Sub (DB-9) ¦ 4 x SFP (mini-GBIC) ¦ USB: 1 x |
| Manufacturer: | Mikrotik |
| Max Operating Temperature: | 70 °C |
| OS Provided: | MikroTik RouterOS v6 (64-bit) |
| Performance: | Throughput: up to 16 Gbps ¦ Throughput: 24000000 packets per second |
| Power Consumption Operational: | 60 Watt |
| Power Device: | Internal power supply |
| Processor: | 1 x Tilera Tile-Gx36 1.2 GHz |
| RAM: | 4 GB DDR3 SDRAM - SO-DIMM 200-pin |
| Routing Protocol: | MPLS |
| Version: | original |
| Voltage Required: | AC 120/230 V |
| Width: | 35.5 cm |
| GPSR - economic actor: | MikroTik SIA, Lettland, Aizkraukles iela 23, Riga, 1006, support @ mikrotik.com |
|---|---|
| GPSR - product manufacturer: | MikroTik SIA, Lettland, Aizkraukles iela 23, Riga, 1006, support @ mikrotik.com |
| GPSR - EU responsible person: | MikroTik SIA, Lettland, Aizkraukles iela 23, Riga, 1006, support @ mikrotik.com |
| Warnings: | Warnings Routers International.pdf |
| Safety instructions: | Safety instructions Routers International.pdf |
MikroTik Cloud Core Router CCR1036-12G-4S (Rev. 2)
| Built-in Devices: | Status LCD, touch screen display |
|---|---|
| Cables Included: | 1 x USB cable |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 14.5 cm |
| Device Type: | Router - 12-port switch (integrated) |
| Enclosure Type: | Rack-mountable - 1U |
| Expansion Slots: | 2 (total) / 0 (free) x SO-DIMM 200-pin |
| Features: | Firewall protection, load balancing, auto-uplink (auto MDI/MDI-X), built-in hot-spot detector, Quality of Service (QoS), MPLS VPN, port configuration |
| Flash Memory: | 1 GB |
| Height: | 5.5 cm |
| Interfaces: | LAN: 12 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 1 x RS-232C - 9 pin D-Sub (DB-9) ¦ 4 x SFP (mini-GBIC) ¦ USB: 1 x |
| Manufacturer: | Mikrotik |
| Max Operating Temperature: | 70 °C |
| OS Provided: | MikroTik RouterOS v6 (64-bit) |
| Performance: | Throughput: up to 16 Gbps ¦ Throughput: 24000000 packets per second |
| Power Consumption Operational: | 60 Watt |
| Power Device: | Internal power supply |
| Processor: | 1 x Tilera Tile-Gx36 1.2 GHz |
| RAM: | 4 GB DDR3 SDRAM - SO-DIMM 200-pin |
| Routing Protocol: | MPLS |
| Version: | original |
| Voltage Required: | AC 120/230 V |
| Width: | 35.5 cm |
| GPSR - economic actor: | MikroTik SIA, Lettland, Aizkraukles iela 23, Riga, 1006, support @ mikrotik.com |
|---|---|
| GPSR - product manufacturer: | MikroTik SIA, Lettland, Aizkraukles iela 23, Riga, 1006, support @ mikrotik.com |
| GPSR - EU responsible person: | MikroTik SIA, Lettland, Aizkraukles iela 23, Riga, 1006, support @ mikrotik.com |
