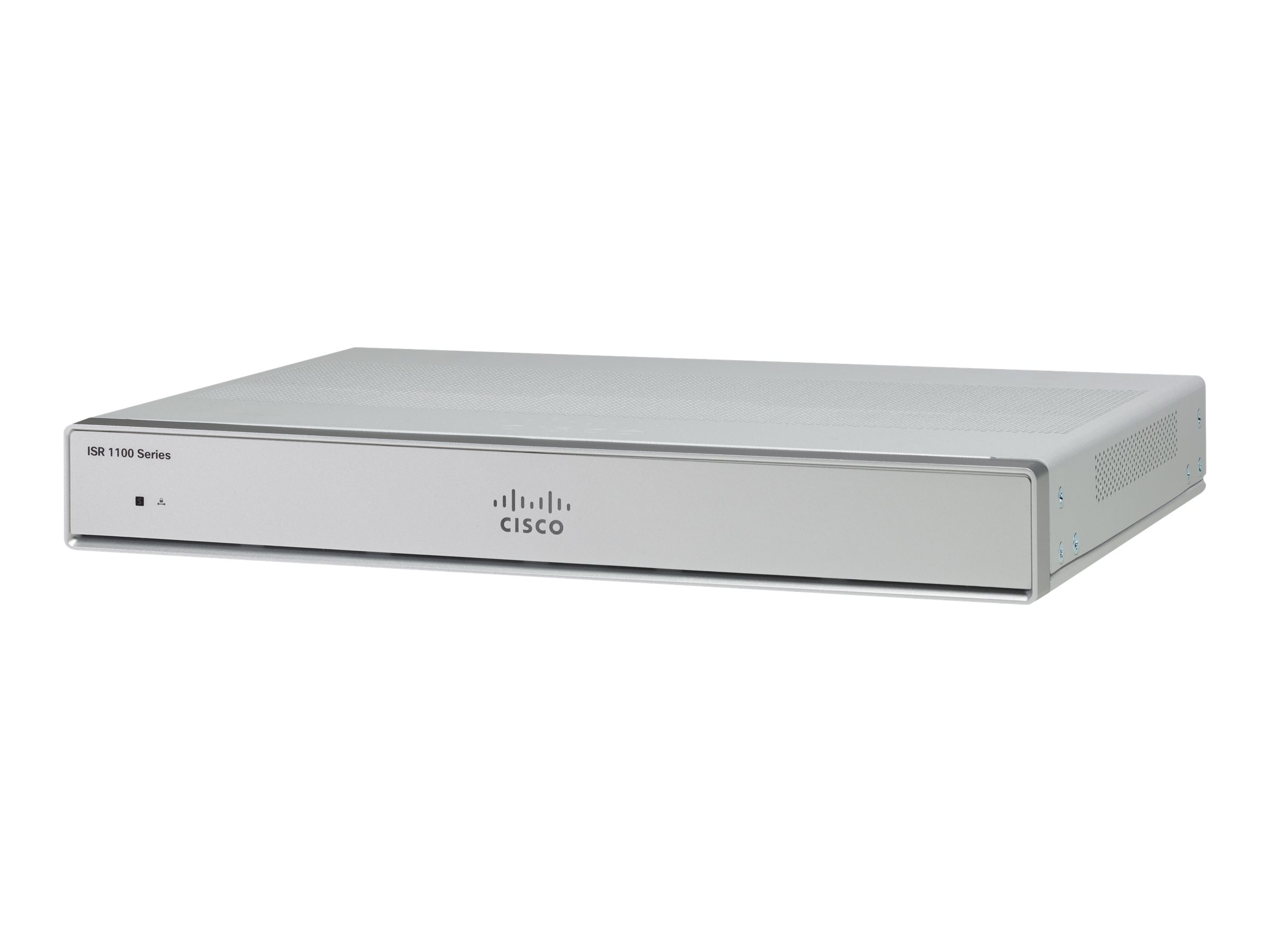

Cisco C1118-8P
ISR 1100 8 Ports Dual GE WAN Ethernet Router G.SHDSL
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
ISR 1100 8 Ports Dual GE WAN Ethernet Router G.SHDSL
| Authentication Method: | RADIUS |
|---|---|
| Compliant Standards: | IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN55022, ICES-003, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, U |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 23 cm |
| Device Type: | Router - 4-port switch (integrated) |
| Digital Signaling Protocol: | SHDSL |
| Enclosure Type: | Desktop |
| Encryption Algorithm: | DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
| Features: | Power over Ethernet (PoE), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), NetFlow, Maximum Ratio Combining (MRC), IPFIX, cycli |
| Flash Memory: | 4 GB |
| Height: | 4.2 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Interfaces: | WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ LAN: 4 x 1000Base-T - RJ-45 ¦ LAN: 2 x 1000Base-T (PoE+) - RJ-45 ¦ LAN: 1 x 1000Base-T (PoE) - RJ-45 ¦ Console: 1 x 9 pin USB Type A |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 65 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Performance: | Encryption throughput: 250 Mbps |
| RAM: | 4 GB |
| Remote Management Protocol: | SNMP, RMON, CLI, TR-069 |
| Routing Protocol: | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Status Indicators: | Status |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 2.59 kg |
| Width: | 32.3 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Routers International.pdf |
| Safety instructions: | Safety instructions Routers International.pdf |
ISR 1100 8 Ports Dual GE WAN Ethernet Router G.SHDSL
| Authentication Method: | RADIUS |
|---|---|
| Compliant Standards: | IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN55022, ICES-003, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, U |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 23 cm |
| Device Type: | Router - 4-port switch (integrated) |
| Digital Signaling Protocol: | SHDSL |
| Enclosure Type: | Desktop |
| Encryption Algorithm: | DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
| Features: | Power over Ethernet (PoE), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), NetFlow, Maximum Ratio Combining (MRC), IPFIX, cycli |
| Flash Memory: | 4 GB |
| Height: | 4.2 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Interfaces: | WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ LAN: 4 x 1000Base-T - RJ-45 ¦ LAN: 2 x 1000Base-T (PoE+) - RJ-45 ¦ LAN: 1 x 1000Base-T (PoE) - RJ-45 ¦ Console: 1 x 9 pin USB Type A |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 65 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Performance: | Encryption throughput: 250 Mbps |
| RAM: | 4 GB |
| Remote Management Protocol: | SNMP, RMON, CLI, TR-069 |
| Routing Protocol: | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Status Indicators: | Status |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 2.59 kg |
| Width: | 32.3 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
