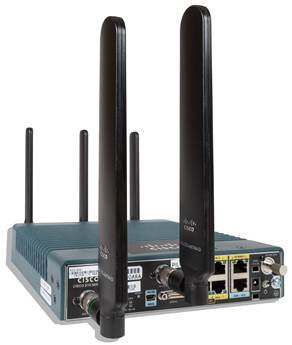

Cisco C819GW-LTE-GA-EK9
C819 M2M LTE for Global bands 1/3/7/8/20 and 802.11n WiFi
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
C819 M2M LTE for Global bands 1/3/7/8/20 and 802.11n WiFi
| Antenna: | External detachable |
|---|---|
| Antenna Qty: | 2 |
| Authentication Method: | RADIUS, TACACS+ |
| Capacity: | VLANs supported: 16 ¦ IPSec tunnels: 20 |
| Compliant Standards: | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet |
| Depth: | 22.9 cm |
| Device Type: | Router - 4-port switch (integrated) |
| Enclosure Type: | Desktop |
| Encryption Algorithm: | DES, Triple DES, SSL, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
| Expansion Slots: | 2 (total) / 2 (free) x SIM |
| Features: | NAT support, auto-uplink (auto MDI/MDI-X), DiffServ support, MAC address filtering, IPv6 support, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Virtual Route Redund |
| Flash Memory: | 1 GB (installed) / 1 GB (max) |
| Height: | 4.2 cm |
| Interfaces: | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX - RJ-45 ¦ Management: 1 x RJ-45 ¦ USB: 1 x mini-USB Type A |
| MTBF: | 263,000 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 50 °C |
| Max Transfer Rate: | 100 Mbps |
| Min Operating Temperature: | -15 °C |
| Mobile Communication Protocol: | GSM, GPRS, UMTS, EDGE, HSPA+, LTE, DC-HSPA+ |
| Network / Transport Protocol: | L2TP, RSVP, FTP, DHCP, DNS, L2TPv3, DDNS, RTP |
| OS Provided: | Cisco IOS Advanced IP services |
| Power Device: | External power adapter |
| RAM: | 1 GB (installed) / 1 GB (max) |
| Remote Management Protocol: | Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI |
| Routing Protocol: | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, policy-based routing (PBR), WCCP, Bidirectional Forwarding Detection (BFD) |
| Status Indicators: | System, active, WLAN, WAN, 3G, 4G, GPS |
| Type: | Wireless cellular modem |
| Version: | original |
| Voltage Required: | AC 120/230 V |
| Weight: | 1 kg |
| Width: | 19.6 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Routers International.pdf |
| Safety instructions: | Safety instructions Routers International.pdf |
C819 M2M LTE for Global bands 1/3/7/8/20 and 802.11n WiFi
| Antenna: | External detachable |
|---|---|
| Antenna Qty: | 2 |
| Authentication Method: | RADIUS, TACACS+ |
| Capacity: | VLANs supported: 16 ¦ IPSec tunnels: 20 |
| Compliant Standards: | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet |
| Depth: | 22.9 cm |
| Device Type: | Router - 4-port switch (integrated) |
| Enclosure Type: | Desktop |
| Encryption Algorithm: | DES, Triple DES, SSL, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
| Expansion Slots: | 2 (total) / 2 (free) x SIM |
| Features: | NAT support, auto-uplink (auto MDI/MDI-X), DiffServ support, MAC address filtering, IPv6 support, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Virtual Route Redund |
| Flash Memory: | 1 GB (installed) / 1 GB (max) |
| Height: | 4.2 cm |
| Interfaces: | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX - RJ-45 ¦ Management: 1 x RJ-45 ¦ USB: 1 x mini-USB Type A |
| MTBF: | 263,000 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 50 °C |
| Max Transfer Rate: | 100 Mbps |
| Min Operating Temperature: | -15 °C |
| Mobile Communication Protocol: | GSM, GPRS, UMTS, EDGE, HSPA+, LTE, DC-HSPA+ |
| Network / Transport Protocol: | L2TP, RSVP, FTP, DHCP, DNS, L2TPv3, DDNS, RTP |
| OS Provided: | Cisco IOS Advanced IP services |
| Power Device: | External power adapter |
| RAM: | 1 GB (installed) / 1 GB (max) |
| Remote Management Protocol: | Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI |
| Routing Protocol: | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, policy-based routing (PBR), WCCP, Bidirectional Forwarding Detection (BFD) |
| Status Indicators: | System, active, WLAN, WAN, 3G, 4G, GPS |
| Type: | Wireless cellular modem |
| Version: | original |
| Voltage Required: | AC 120/230 V |
| Weight: | 1 kg |
| Width: | 19.6 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
