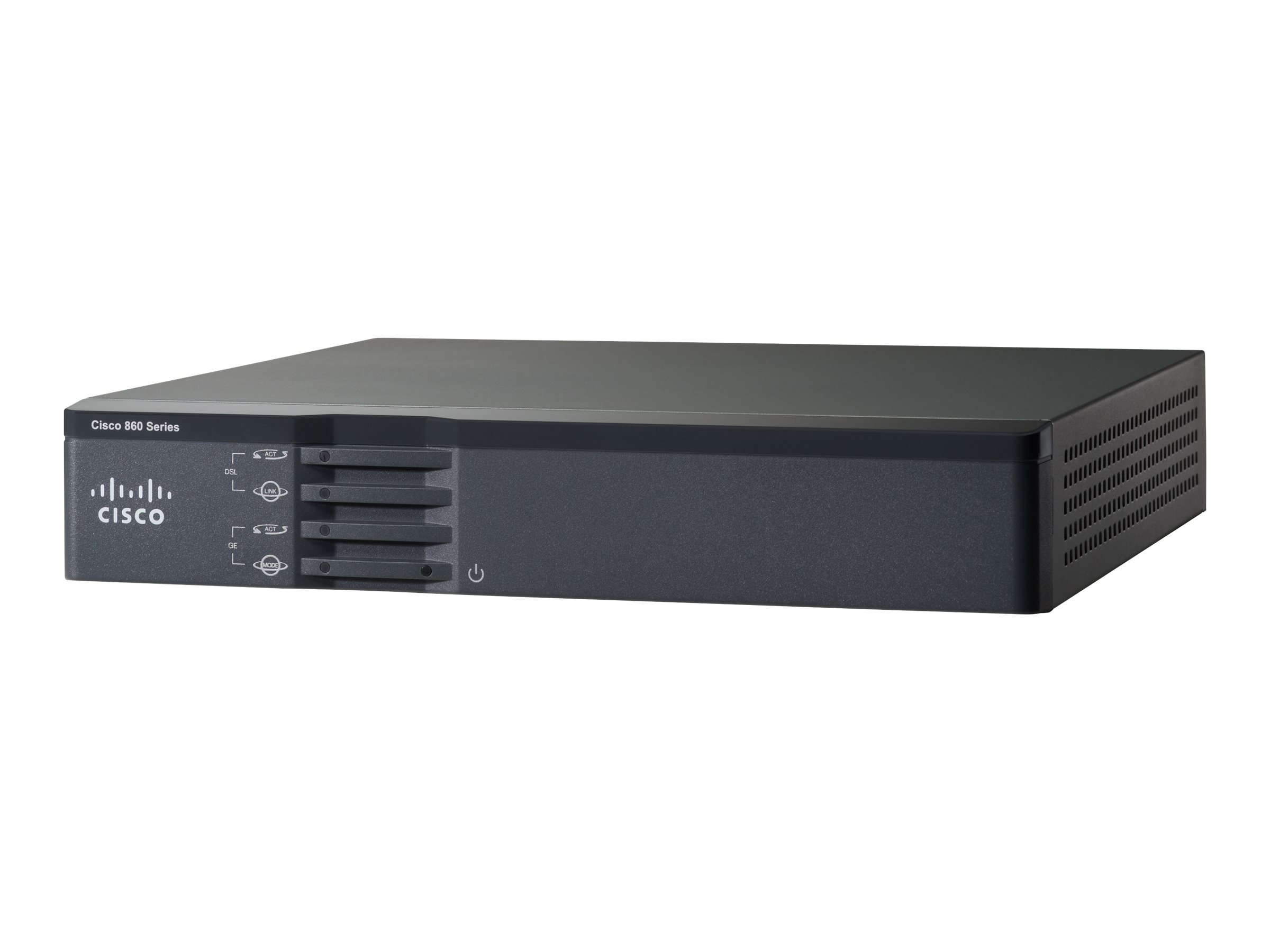

Cisco C867VAE-K9
Cisco 867VAE Secure router with VDSL2/ADSL2+ over POTS
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Cisco 867VAE Secure router with VDSL2/ADSL2+ over POTS
| Capacity: | IPSecVPN tunnels: 10 |
|---|---|
| Compliant Standards: | IEEE 802.1Q, IEEE 802.3ah, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, EN 61000-4-3, EN 61000-4-6, AS/NZS 3548, FCC CFR47 Part 15, VCCI V-3 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 19.8 cm |
| Device Type: | Router - 4-port switch (integrated) |
| Digital Signaling Protocol: | ADSL2+, VDSL2 |
| Enclosure Type: | Desktop, rack-mountable - 1U |
| Features: | Firewall protection, auto-uplink (auto MDI/MDI-X), IPv6 support, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), DHCPserver, DNSproxy, DHCP relay, Web Services Management Agent (WSMA), NetFlow, DHCP cli |
| Flash Memory: | 64 MB |
| Framing Format: | ANSI T1.413 |
| Height: | 3.9 cm |
| Humidity Range Operating: | 10 - 85% (non-condensing) |

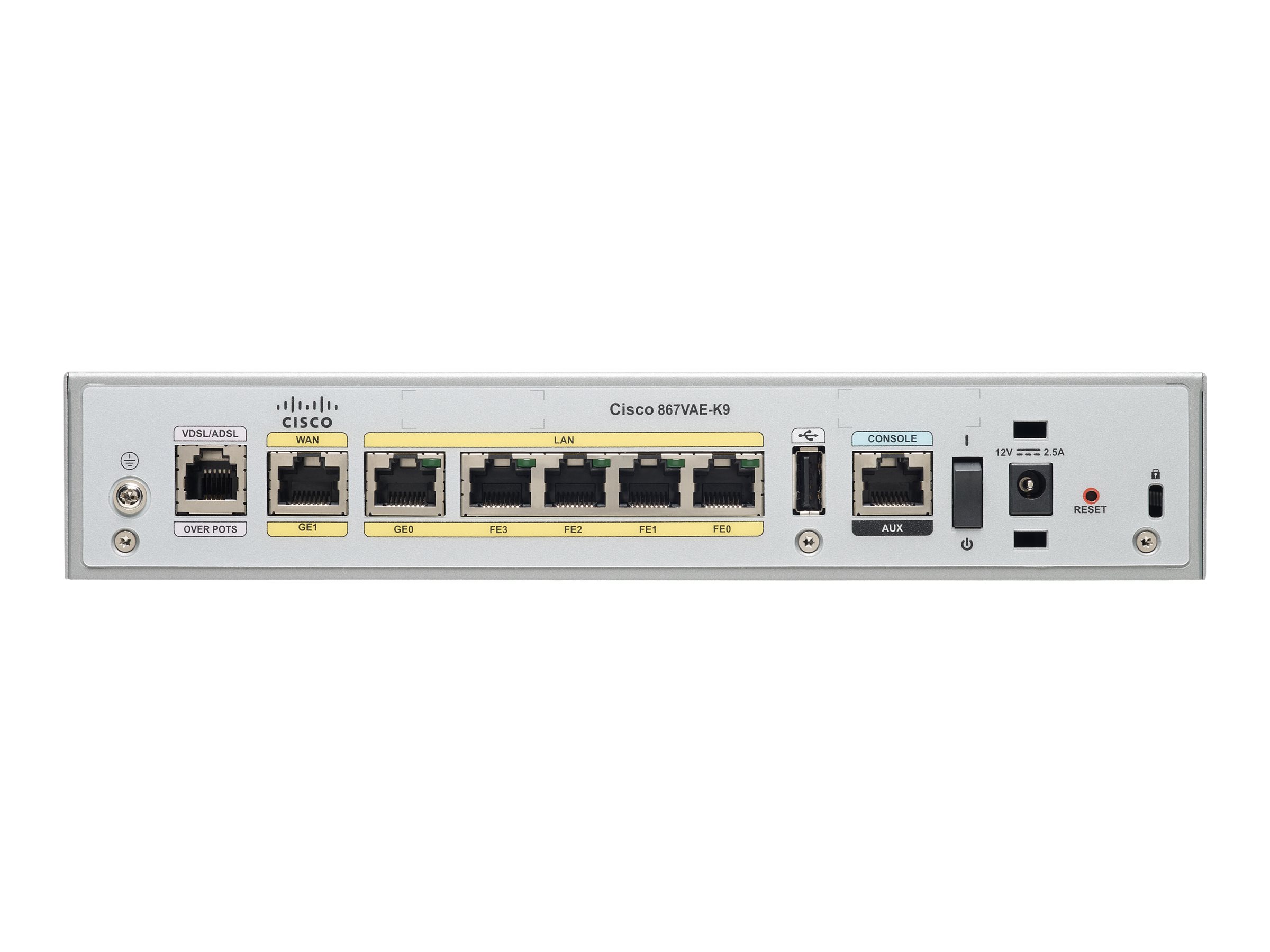

| Interfaces: | LAN: 4 x 10Base-T/100Base-TX - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ WAN: 1 x ADSL2+ ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x VDSL2 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec, PPPoE, PPPoA, DHCP, DNS |
| OS Provided: | Cisco IOS Advanced Security |
| Power Device: | External power adapter - 60 Watt |
| Protocols & Specifications: | ITU G.994.1 (G.hs), ITU G.992.3 Annex A, ITU G.992.3 Annex L, ITU G.992.5 Annex M, ITU G.993.2, ITU G.992.3 Annex M, ITU G.992.5 Annex A, ITU G.992.5 Annex B, ITU G.992.3 Annex B |
| RAM: | 256 MB (installed) / 256 MB (max) |
| Remote Management Protocol: | SNMP 3, HTTP, HTTPS, SSH |
| Routing Protocol: | RIP-1, RIP-2 |
| Type: | DSL modem |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 2.5 kg |
| Width: | 20.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Routers International.pdf |
| Safety instructions: | Safety instructions Routers International.pdf |
Cisco 867VAE Secure router with VDSL2/ADSL2+ over POTS
| Capacity: | IPSecVPN tunnels: 10 |
|---|---|
| Compliant Standards: | IEEE 802.1Q, IEEE 802.3ah, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, EN 61000-4-3, EN 61000-4-6, AS/NZS 3548, FCC CFR47 Part 15, VCCI V-3 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 19.8 cm |
| Device Type: | Router - 4-port switch (integrated) |
| Digital Signaling Protocol: | ADSL2+, VDSL2 |
| Enclosure Type: | Desktop, rack-mountable - 1U |
| Features: | Firewall protection, auto-uplink (auto MDI/MDI-X), IPv6 support, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), DHCPserver, DNSproxy, DHCP relay, Web Services Management Agent (WSMA), NetFlow, DHCP cli |
| Flash Memory: | 64 MB |
| Framing Format: | ANSI T1.413 |
| Height: | 3.9 cm |
| Humidity Range Operating: | 10 - 85% (non-condensing) |
| Interfaces: | LAN: 4 x 10Base-T/100Base-TX - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ WAN: 1 x ADSL2+ ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x VDSL2 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec, PPPoE, PPPoA, DHCP, DNS |
| OS Provided: | Cisco IOS Advanced Security |
| Power Device: | External power adapter - 60 Watt |
| Protocols & Specifications: | ITU G.994.1 (G.hs), ITU G.992.3 Annex A, ITU G.992.3 Annex L, ITU G.992.5 Annex M, ITU G.993.2, ITU G.992.3 Annex M, ITU G.992.5 Annex A, ITU G.992.5 Annex B, ITU G.992.3 Annex B |
| RAM: | 256 MB (installed) / 256 MB (max) |
| Remote Management Protocol: | SNMP 3, HTTP, HTTPS, SSH |
| Routing Protocol: | RIP-1, RIP-2 |
| Type: | DSL modem |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 2.5 kg |
| Width: | 20.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
