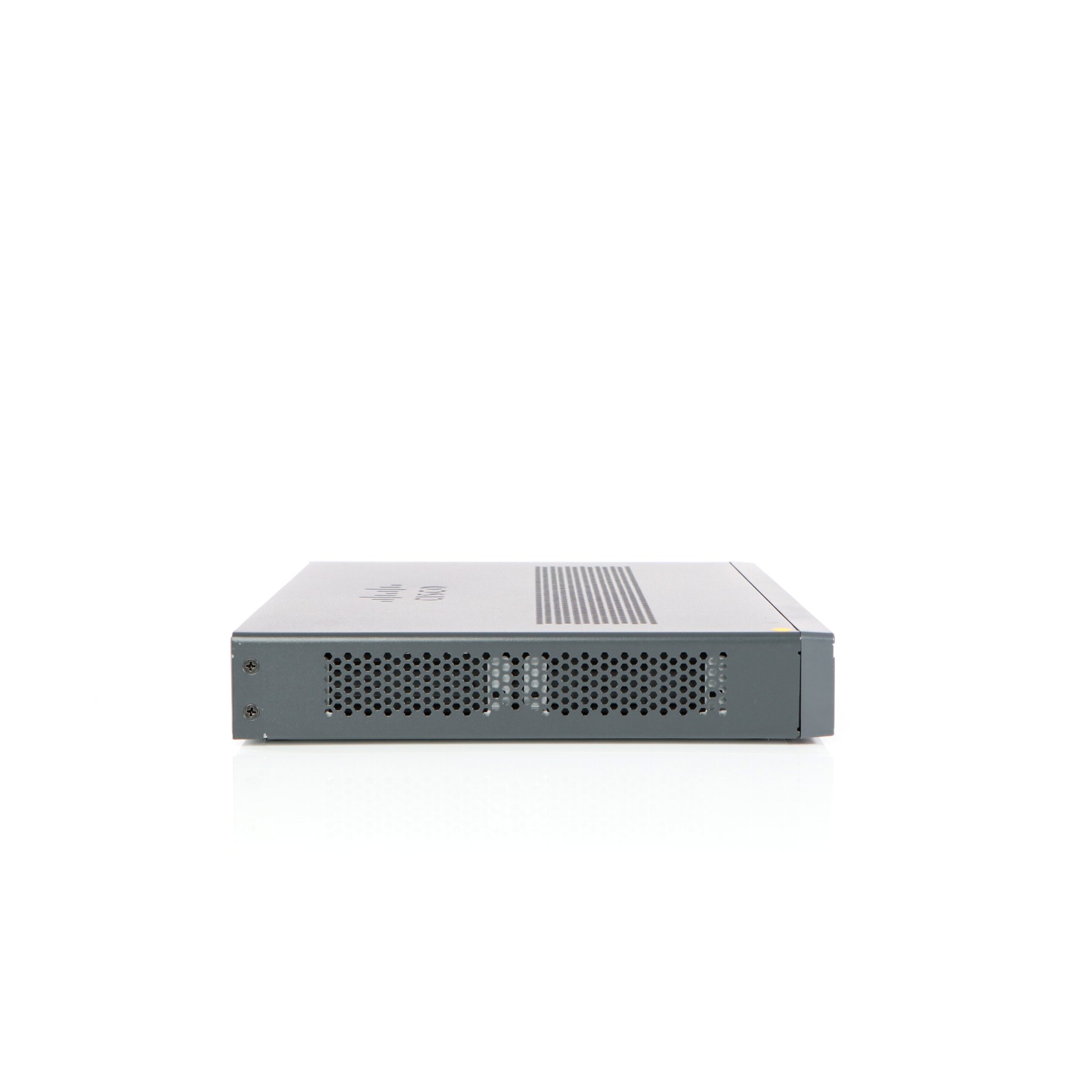

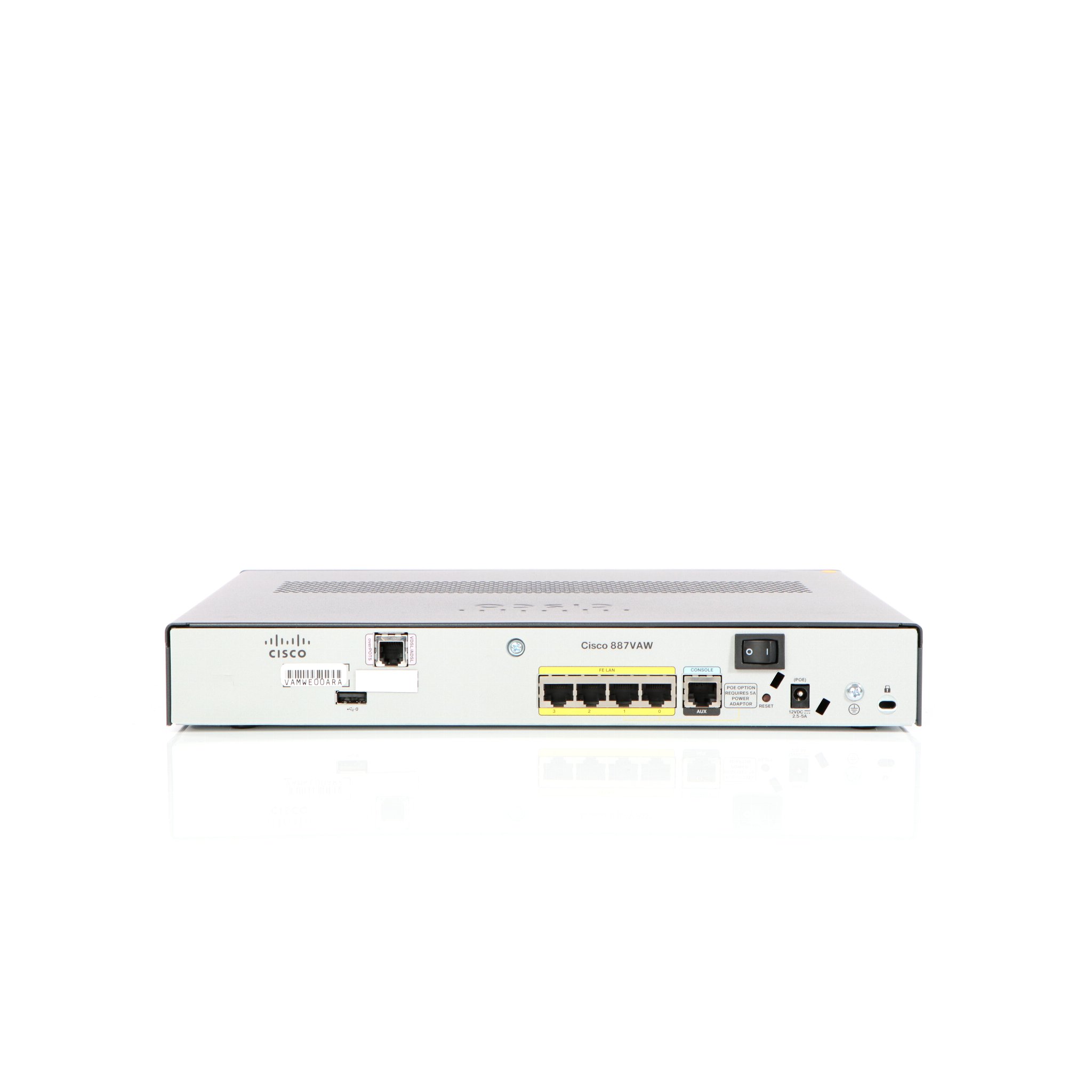

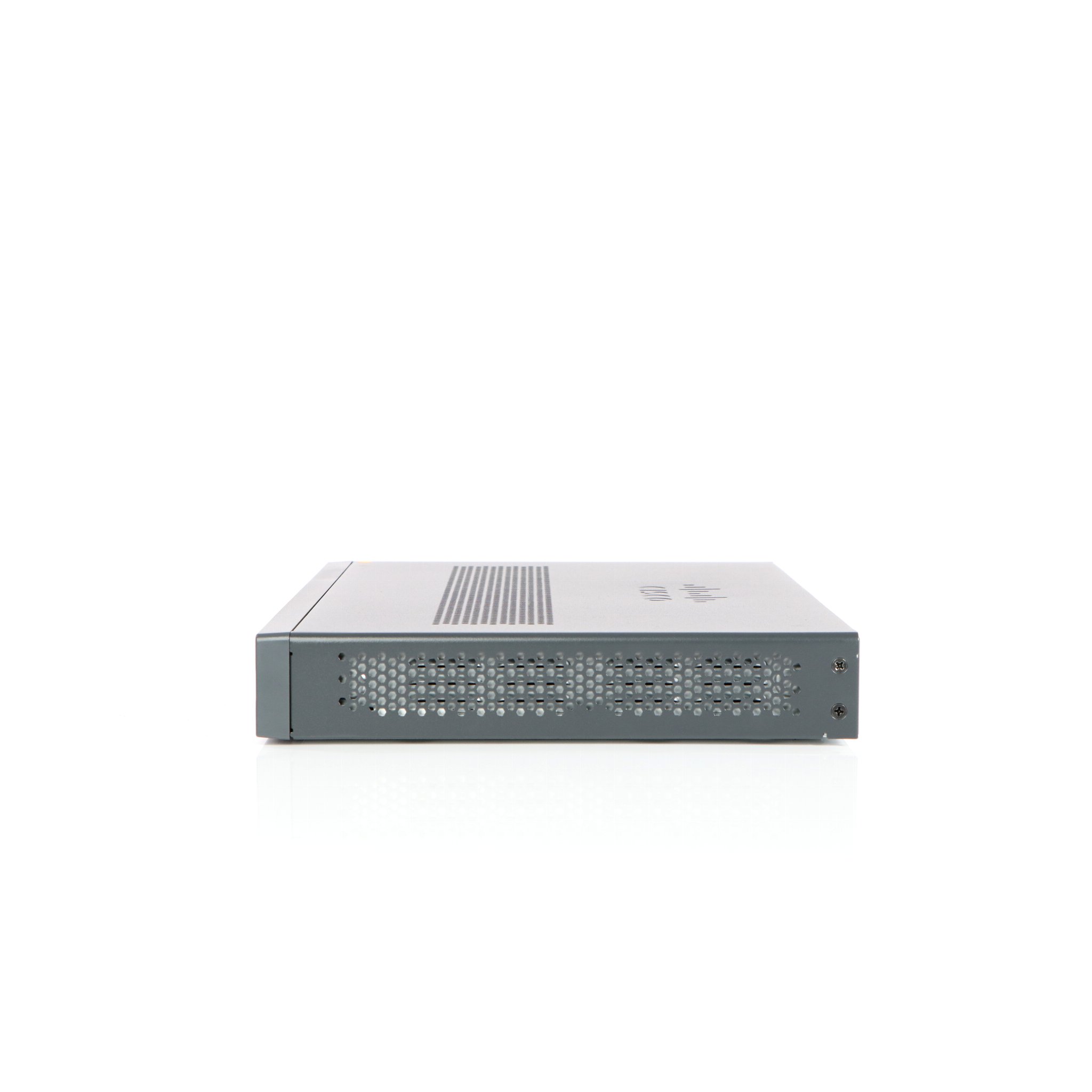

Cisco C887VA-W-E-K9
Cisco 887VA VDSL2/ADSL2 over POTS W/802.11n ETSI Comp
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Cisco 887VA VDSL2/ADSL2 over POTS W/802.11n ETSI Comp
| Authentication Method: | RADIUS, Radio Service Set ID (SSID), TACACS+, Extensible Authentication Protocol (EAP), EAP-FAST |
|---|---|
| Capacity: | IPSec VPN tunnels: 20 |
| Compliant Standards: | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, ETSI, VCCI-II, EN55024, CSA 22.2 No. 60950, EN55022 Class B, AS/NZ 3548 Class B, AS/NZS 60950-1, CS-03, EN 60555-2, UL 60950-1, IEC 60950-1 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet |
| Depth: | 26.4 cm |
| Device Type: | Router - 4-port switch (integrated) |
| Digital Signaling Protocol: | ADSL2, ADSL2+, VDSL2 |
| Enclosure Type: | Desktop |
| Encryption Algorithm: | LEAP, DES, Triple DES, MD5, SSL, TLS, PEAP, TTLS, TKIP, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
| Expansion Slots: | 1 (total) / 1 (free) x SO-DIMM 200-pin |
| Features: | Firewall protection, DHCP support, NAT support, VPN support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Stateful Packet Inspection (SPI), DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, Intrusion Prevention |
| Flash Memory: | 128 MB |
| Framing Format: | ANSI T1.413 |
| Height: | 4.4 cm |
| Humidity Range Operating: | 10 - 85% (non-condensing) |
| Interfaces: | LAN: 4 x 10Base-T/100Base-TX - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ WAN: 1 x ADSL2+ ¦ USB: 1 x 4 pin USB Type A ¦ WAN: 1 x VDSL2 |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | L2TP, IPSec, PPPoE, PPPoA, DHCP, DNS |
| OS Provided: | Cisco IOS Advanced Security |
| Power Device: | External power adapter - 60 Watt |
| Protocols & Specifications: | ITU G.994.1 (G.hs), ITU G.992.3 Annex A, ITU G.993.2, ITU G.992.5 Annex A |
| RAM: | 256 MB (installed) / 768 MB (max) - DDR2 SDRAM - SO-DIMM 200-pin |
| Remote Management Protocol: | Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI |
| Routing Protocol: | RIP-1, RIP-2, HSRP, VRRP, GRE, policy-based routing (PBR) |
| Status Indicators: | Port status, power |
| Type: | DSL modem |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 2.5 kg |
| Width: | 32.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Routers International.pdf |
| Safety instructions: | Safety instructions Routers International.pdf |
