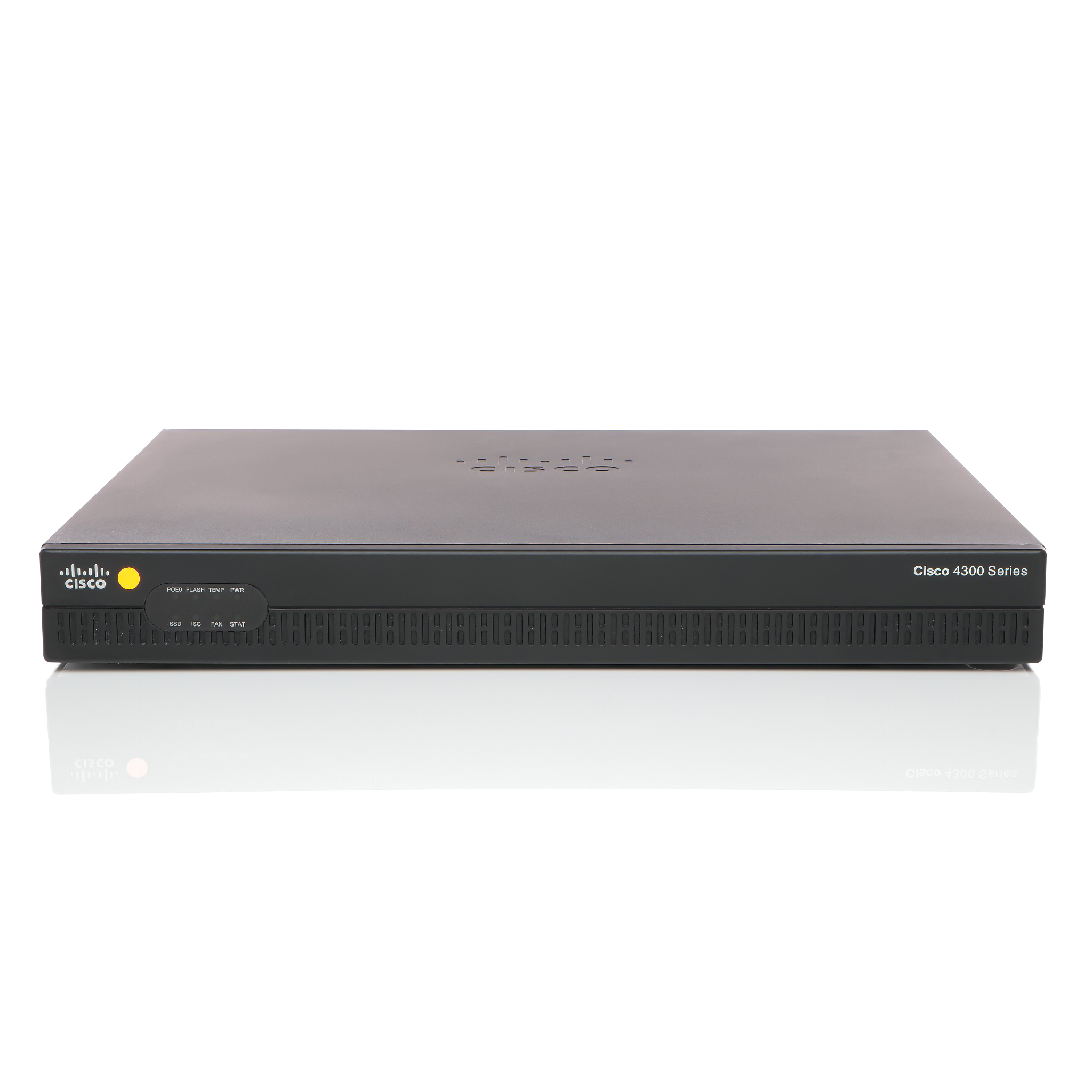

Cisco ISR4321-B/K9
Cisco ISR 4321 (2GE,2NIM,4G FLASH,4G DRAM,IPB)
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Cisco ISR 4321 (2GE,2NIM,4G FLASH,4G DRAM,IPB)
| Compliant Standards: | IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 609 |
|---|---|
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 29.464 cm |
| Device Type: | Router |
| Enclosure Type: | Rack-mountable - modular - 1U |
| Expansion Slots: | 2 (total) / 2 (free) x NIM ¦ 1 (total) / 1 (free) x ISC ¦ 1 (total) / 0 (free) x DIMM 240-pin |
| Features: | VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, NetFlow, IPFIX |
| Flash Memory: | 4 GB (installed) / 8 GB (max) |
| Height: | 4.455 cm |
| Humidity Range Operating: | 5 - 85% |
| Installed Qty: | 1 |
| Interfaces: | WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Serial: 1 x console - RJ-45 ¦ Management: 1 x console - mini-USB Type B ¦ Serial: 1 x auxiliary - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ 1 x SFP (mini-GBIC) ¦ Management: 1 x RJ-45 |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec, PPPoE, DHCP |
| OS Provided: | Cisco IOS IP Base |
| Performance: | Aggregate throughput: 50 Mbps |
| Power Device: | External power adapter |
| RAM: | 4 GB (installed) / 8 GB (max) - DDR3 SDRAM |
| Rack Mounting Kit: | Included |
| Remote Management Protocol: | SNMP, RMON |
| Routing Protocol: | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast |
| Software Included: | Cisco IOS IP Base |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 3.5 kg |
| Width: | 36.957 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Routers International.pdf |
| Safety instructions: | Safety instructions Routers International.pdf |
