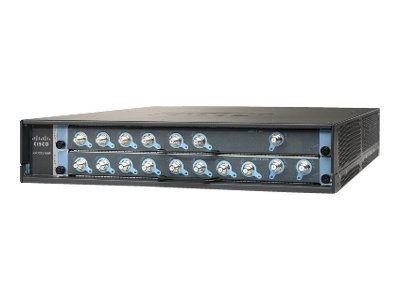

Cisco U7225VXR-M16EUG1
UBR7225VXR With NPE-G1, IOS And 1 UBR-E-16U Card
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
UBR7225VXR With NPE-G1, IOS And 1 UBR-E-16U Card
| Authentication Method: | Secure Shell (SSH) |
|---|---|
| Compliant Standards: | IEEE 802.1Q, CSA, CISPR 22 Class A, VCCI Class A ITE, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IE |
| Connectivity Technology: | Wired |
| Depth: | 55.4 cm |
| Device Type: | Router |
| Enclosure Type: | Desktop - modular - 2U |
| Expansion Slots: | 3 (total) / 1 (free) x expansion slot ¦ 1 (total) / 0 (free) x CompactFlash |
| Features: | DHCP support, VPN support, IPv6 support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS) |
| Flash Memory: | 64 MB (installed) / 256 MB (max) |
| Height: | 8.9 cm |
| Humidity Range Operating: | 10 - 90% |
| Installed Modules Qty (Max): | 1 (installed) / 2 (max) |
| Installed Size: | 2 (max) |
| Interfaces: | 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x input ¦ LAN: 6 x output ¦ Management: 1 x console - RJ-45 ¦ Management: 1 x auxiliary - RJ-45 ¦ 3 x GBIC |
| Line Coding Format: | 32 QAM, 64 QAM, 256 QAM, QPSK, 16 QAM |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Power Device: | Internal power supply (not installed) |
| Power Redundancy: | Yes |
| Processor: | 1 x Broadcom BCM1250 700 MHz |
| Protocols & Specifications: | DOCSIS 1.1, Euro-DOCSIS 1.0, Euro-DOCSIS 1.1, Euro-DOCSIS 2.0 |
| RAM: | 256 MB (installed) / 1 GB (max) - DDR SDRAM |
| Remote Management Protocol: | SNMP, Telnet, HTTP |
| Type: | Cable modem |
| Version: | original |
| Width: | 44.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| Warnings: | Warnings Routers International.pdf |
| Safety instructions: | Safety instructions Routers International.pdf |
