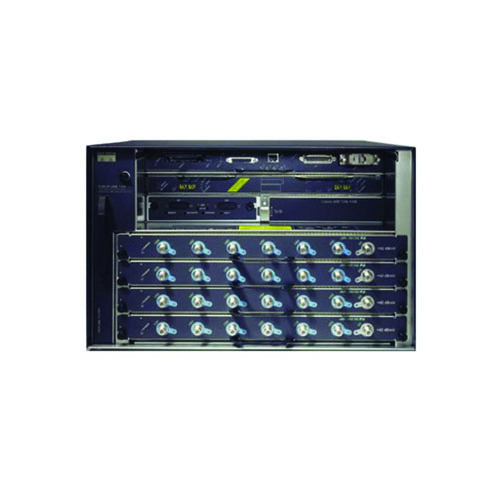

Cisco UBR7246VXR
uBR7246VXR, 4MC 2PA slots, Clock Card slot, Fan Tray
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
uBR7246VXR, 4MC 2PA slots, Clock Card slot, Fan Tray
| Colour: | Black |
|---|---|
| Compliant Standards: | UL |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Depth: | 55.9 cm |
| Device Type: | Router |
| Enclosure Type: | Rack-mountable - rack-mountable - modular |
| Expansion Slots: | 6 (total) / 6 (free) x expansion slot ¦ 2 (total) / 2 (free) x PC Card ¦ 1 (total) / 1 (free) x processor board |
| Features: | Modular design, manageable |
| Height: | 26.7 cm |
| Humidity Range Operating: | 10 - 90% |
| Installed Modules Qty (Max): | 0 (installed) / 7 (max) |
| Installed Qty: | 2 (max) |
| Interfaces: | Management: 1 x auxiliary - 25 pin D-Sub (DB-25) - 1 ¦ Management: 1 x console - 25 pin D-Sub (DB-25) - 1 |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Mounting Kit: | Not available |
| OS Provided: | Cisco IOS |
| Power Device: | Internal power supply (not installed) - hot-plug - 840 Watt |
| Rack Mounting Kit: | Included |
| Version: | original |
| Voltage Required: | AC 110/220 V (50/60 Hz) |
| Weight: | 47.2 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| Warnings: | Warnings Routers International.pdf |
| Safety instructions: | Safety instructions Routers International.pdf |
