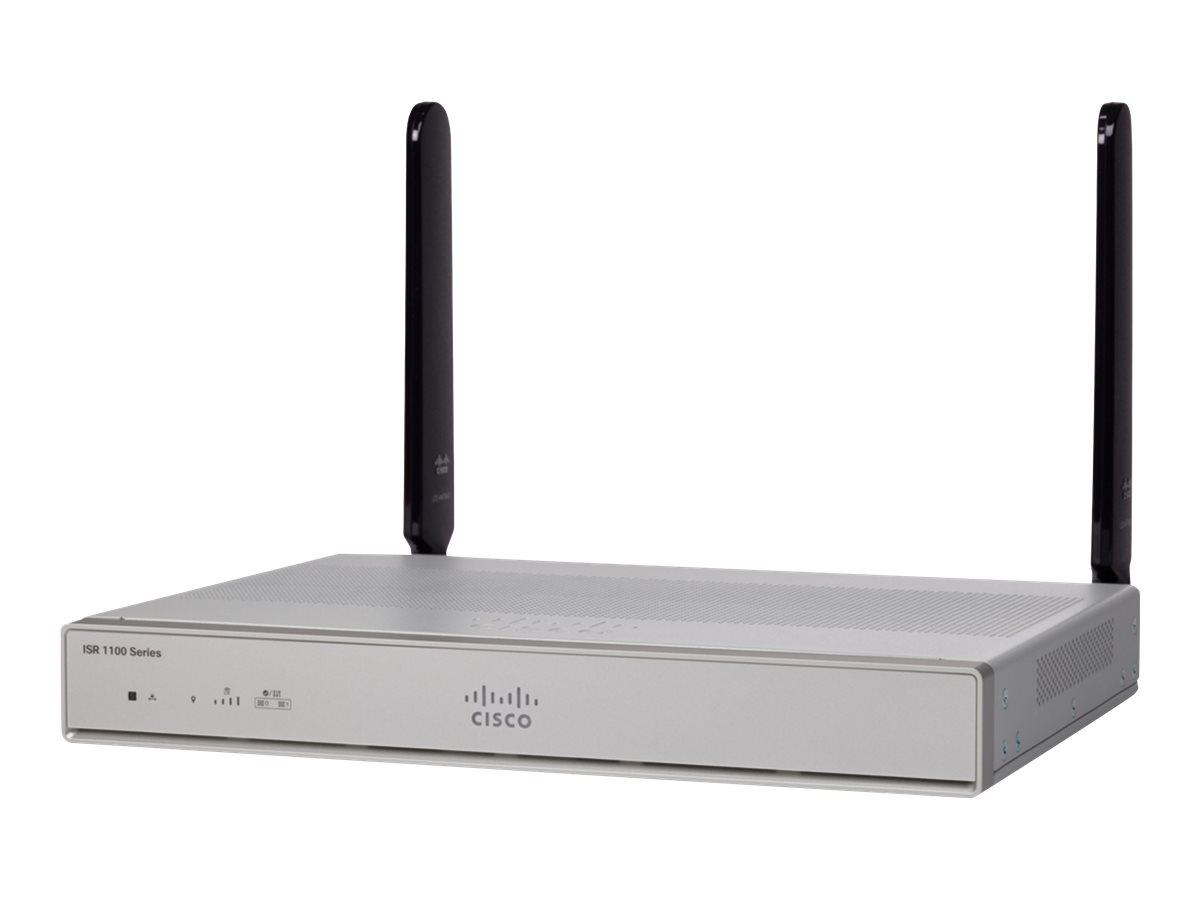

Cisco C1111-8PLTEEA
ISR 1100 8P Dual GE SFP Router w/ LTE Adv SMS/GPS EMEA and NA
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
ISR 1100 8P Dual GE SFP Router w/ LTE Adv SMS/GPS EMEA and NA
| Authentication Method: | RADIUS |
|---|---|
| Communications Technology: | LTE Cat 6 |
| Compliant Standards: | IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, |
| Connectivity Technology: | Wireless, wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ac Wave 2 |
| Depth: | 24.4 cm |
| Device Type: | Router - 8-port switch (integrated) |
| Enclosure Type: | Desktop |
| Encryption Algorithm: | Triple DES, SHA, MD5, AES, WPA2, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 384-bit SHA-2, 256-bit SHA, 512-bit SHA, 748-bit AES, ECDSA 256-bit, ECDSA 384-bit |
| Expansion Slots: | 1 (total) / 1 (free) x SIM |
| Features: | DHCP support, power over Ethernet (PoE), load balancing, MPLS support, VLAN support, Syslog support, IPv6 support, Dying Gasp support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Virtual Route Redundancy Protocol (VR |
| Flash Memory: | 4 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Interfaces: | WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ WAN: 1 x 1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 2 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 ¦ LAN: 2 x 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 ¦ USB 3.0: 1 x cons |
| Localisation: | Canada, Middle East, United States, Europe |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 65 °C |
| Min Operating Temperature: | 0 °C |
| Mobile Communication Protocol: | UMTS, TD-SCDMA, HSPA+, DC-HSPA+, LTE Advanced, FDD LTE, TDD LTE |
| Network / Transport Protocol: | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| OS Provided: | Cisco IOS XE Universal |
| Performance: | Crypto performance: 250 Mbps |
| Power Consumption Operational: | 66 Watt |
| RAM: | 4 GB |
| Remote Management Protocol: | SNMP, RMON, CLI, TR-069 |
| Routing Protocol: | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Status Indicators: | Status |
| Type: | Wireless cellular modem |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 2.59 kg |
| Width: | 32.3 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Routers International.pdf |
| Safety instructions: | Safety instructions Routers International.pdf |
