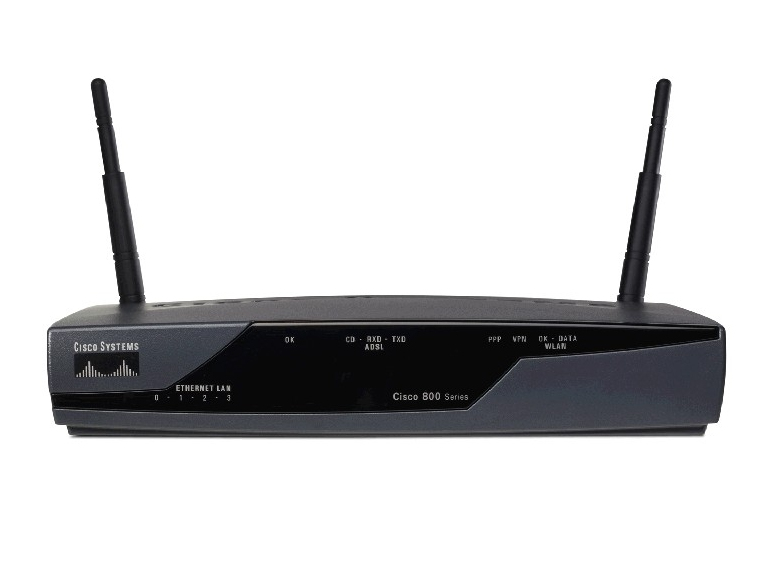

Cisco Cisco877W-G-E-M-K9
ADSL Sec Router with wireless 802.11g and Annex M
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
ADSL Sec Router with wireless 802.11g and Annex M
| Aerial: | External detachable |
|---|---|
| Antenna Qty: | 2 |
| Authentication Method: | RADIUS, TACACS+ |
| Capacity: | VPN tunnels: 10 |
| Compliant Standards: | IEEE 802.1D, IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, Wi-Fi CERTIFIED, FCC Class B certified, ETSI, EN 60950, IEC 61000-3-2, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC950, VCCI-II, EN55022 |
| Connectivity Technology: | Wireless, wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g |
| Data Transfer Rate: | 54 Mbps |
| Depth: | 21.6 cm |
| Device Type: | Wireless router - 4-port switch (integrated) |
| Digital Signaling Protocol: | ADSL, ADSL2, ADSL2+ |
| Directivity: | Omni-directional |
| Enclosure Type: | Desktop |
| Encryption Algorithm: | LEAP, Triple DES, AES, TLS, PEAP, TKIP, WPA2, WPA-PSK |
| Features: | Firewall protection, DMZ port, auto-sensing per device, dynamic IP address assignment, DHCP support, NAT support, hardware encryption, VPN support, PAT support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), Stateful Packet Inspection (SPI) |
| Flash Memory: | 24 MB (installed) / 52 MB (max) |
| Framing Format: | ANSI T1.413 |
| Frequency Band: | 2.4 GHz |
| Gain Level: | 2.2 dBi |
| Height: | 5.1 cm |
| Humidity Range Operating: | 10 - 85% |
| Interfaces: | LAN: 4 x 10Base-T/100Base-TX - RJ-45 ¦ WAN: 1 x ADSL - RJ-11 ¦ Management: 1 x console - RJ-45 |
| Localisation: | Europe |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | PPTP, L2TP, IPSec, PPPoE, PPPoA |
| OS Provided: | Cisco IOS Advanced Security |
| Power Device: | External power adapter - 26 Watt |
| Protocols & Specifications: | ITU G.992.1 (G.DMT), ITU G.992.5 Annex M, ITU G.992.3 Annex M |
| RAM: | 128 MB (installed) / 256 MB (max) |
| Remote Management Protocol: | SNMP, Telnet, HTTP, HTTPS |
| Routing Protocol: | RIP-1, RIP-2, HSRP, VRRP, GRE |
| Status Indicators: | Port status, power |
| Type: | DSL modem |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 0.95 kg |
| Width: | 26 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Routers International.pdf |
| Safety instructions: | Safety instructions Routers International.pdf |
