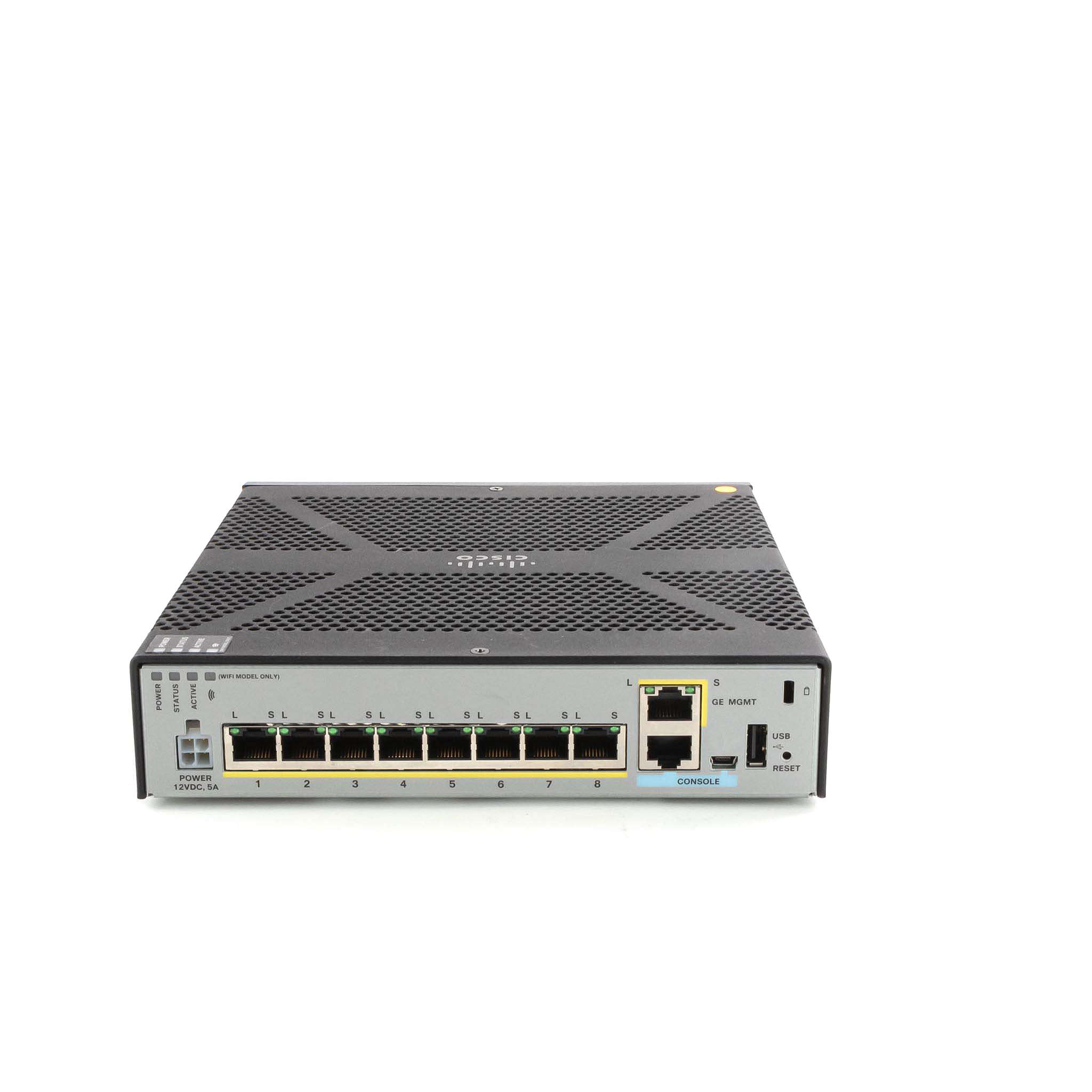

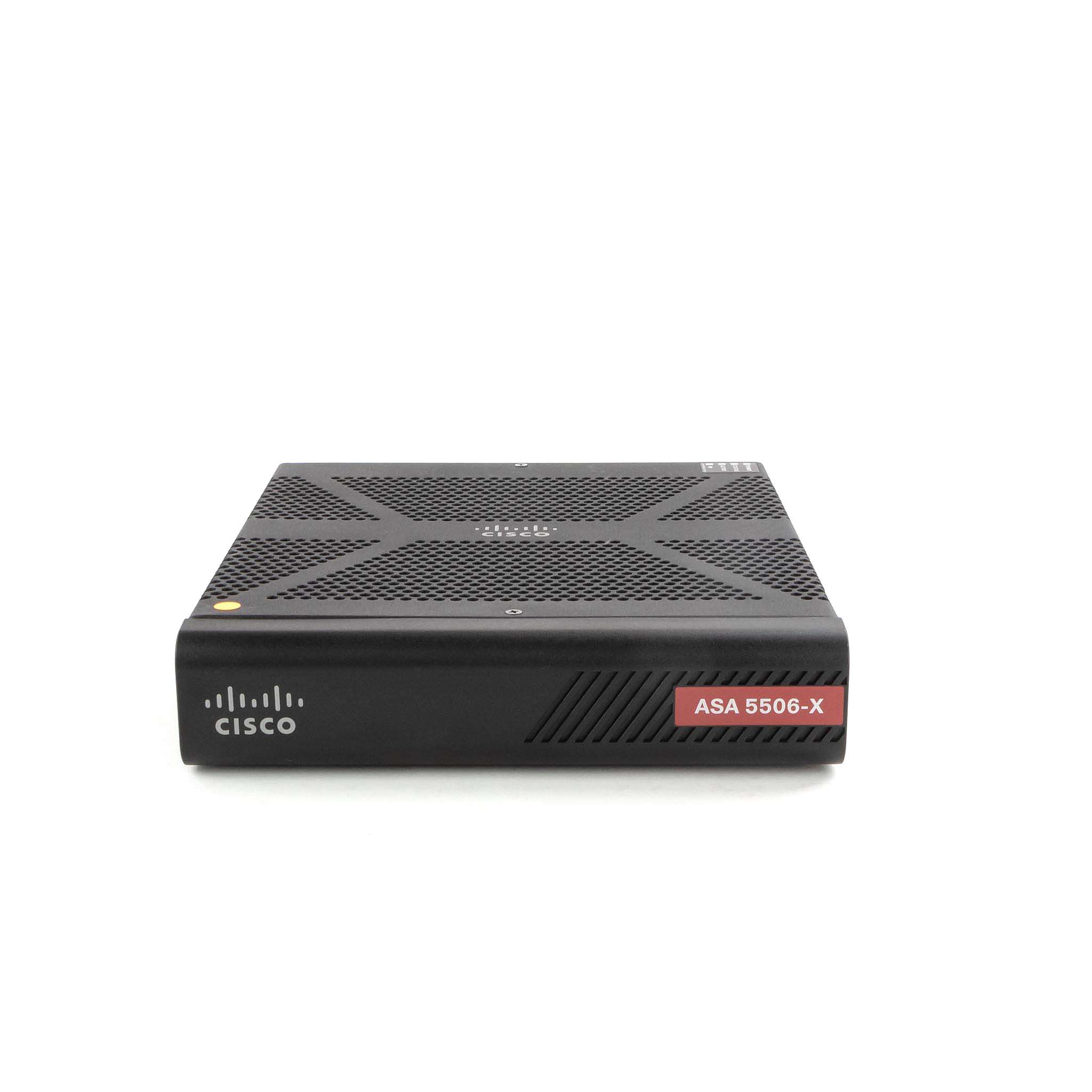

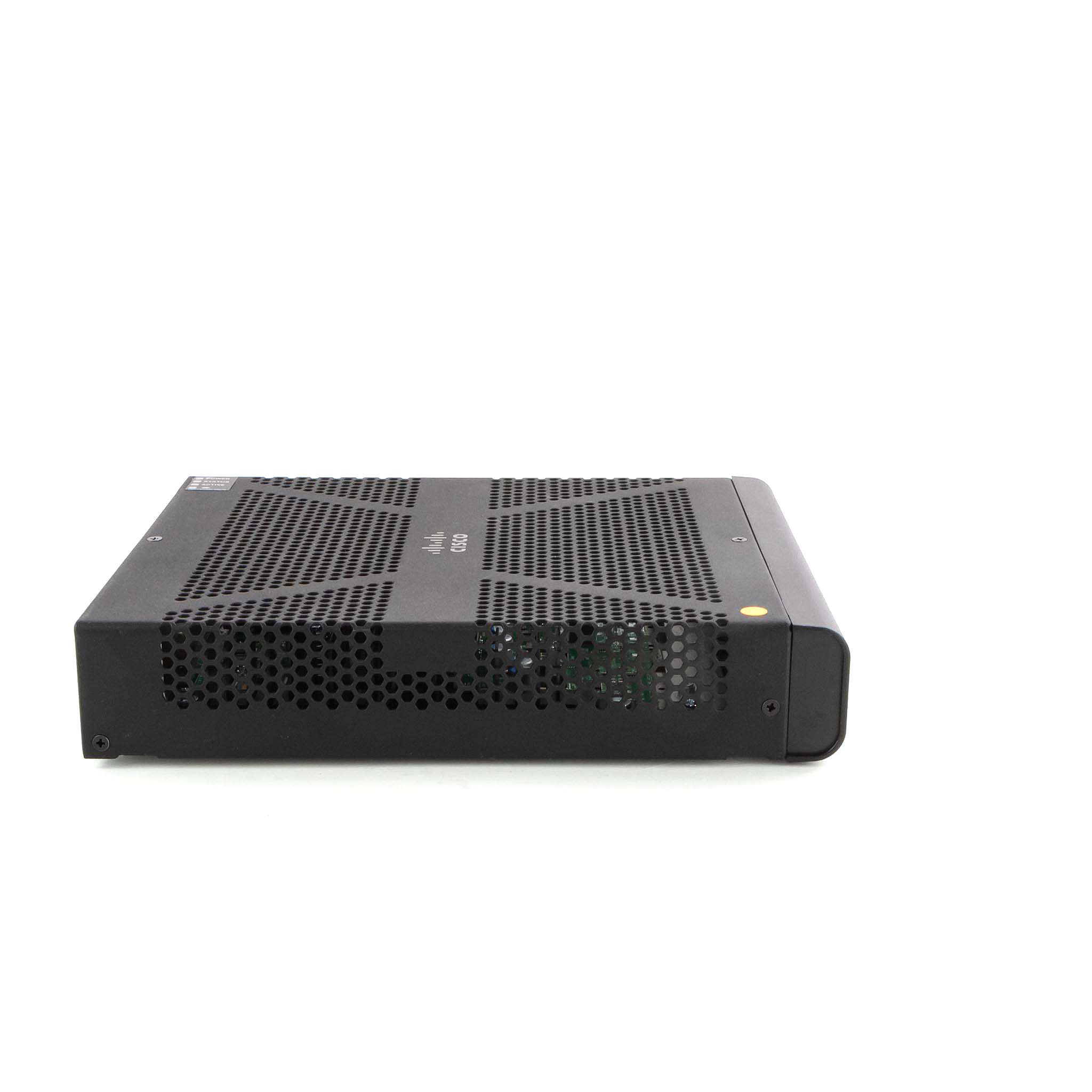

Cisco ASA5506H-SP-BUN-K9
ASA 5506H-X SEC PLUS Bundle
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
ASA 5506H-X SEC PLUS Bundle
| Capacity: | Concurrent sessions: 50000 ¦ Cisco AnyConnect Premium/Apex VPN peers: 2 (maximum 50) ¦ IPSec VPN peers: 50 ¦ Virtual interfaces (VLANs): 30 |
|---|---|
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, EN55022, IEC 60950, EN 61000-3-3, EN55024, UL 60950, VCCI V-3, AS/NZS 60950, CAN/CSA C22.2 No. 60950, CNS 13438, IEC 61850-3, EN 301 489-7, EN 301 489.4, EN 301 489-1, EN 301 489-17, EN 300386, EN 301 48 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet |
| Depth: | 23 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | Triple DES, AES |
| Features: | Firewall protection, VPN support, VLAN support, wall mountable, fanless, rugged, DIN rail mountable, security lock slot (cable lock sold separately) |
| Flash Memory: | 8 GB |
| Form Factor: | Desktop |
| Hard Drive: | SSD 50 GB x 1 - mSATA |
| Height: | 6.9 cm |
| Humidity Range Operating: | 10 - 95% (non-condensing) |
| Interfaces: | 1 x 1000Base-T (management) - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x mini-USB ¦ 1 x console - RJ-45 ¦ 4 x 1000Base-T - RJ-45 |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 60 °C |
| Min Operating Temperature: | -20 °C |
| Performance: | Inspection throughput: 750 Mbps ¦ Multiprotocol firewall throughput: 300 Mbps ¦ Connection rate: 5000 connections per second ¦ Application control (AVC) throughput: 250 Mbps ¦ Application control (AVC) and IPS throughput: 125 Mbps ¦ VPN throughput (3DES/A |
| Ports Qty: | 4 |
| Power Device: | External power adapter |
| RAM: | 4 GB |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 3.18 kg |
| Width: | 23 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
