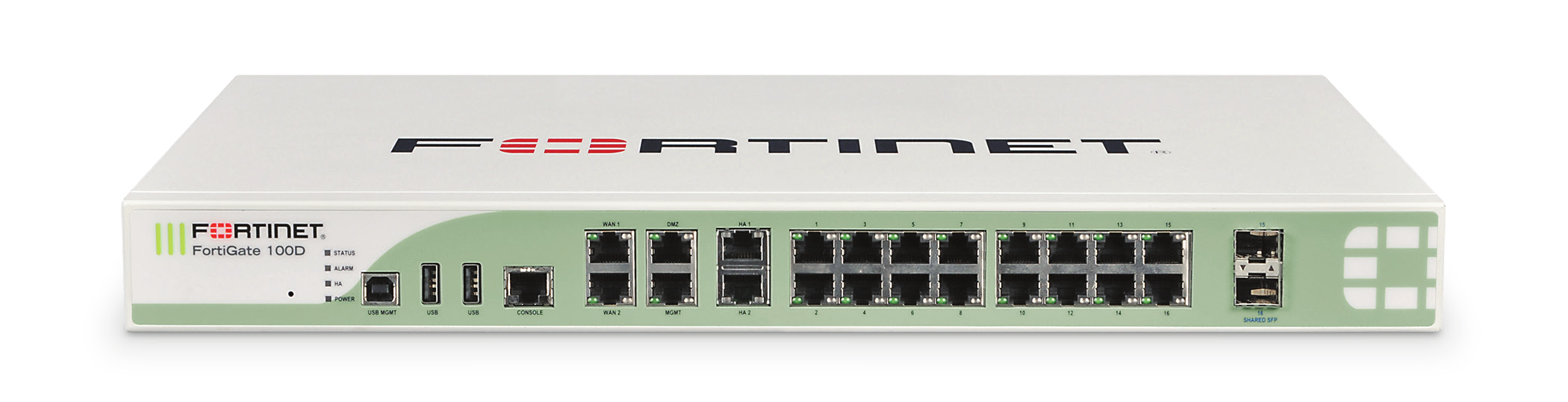

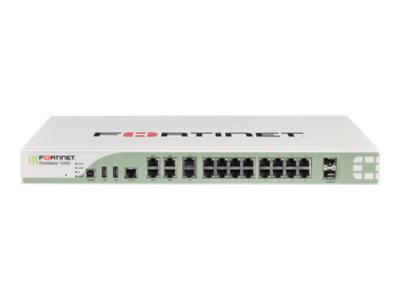

Fortinet FG-100D
20 x GE RJ45 ports (including 1 x DMZ port, 1 x Mgmt port, 2 x HA port, 16 x internal switch ports), 2 x shared media pairs (including 2 x GE RJ45, 2 x GE SFP slots), 32GB onboard storage
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
20 x GE RJ45 ports (including 1 x DMZ port, 1 x Mgmt port, 2 x HA port, 16 x internal switch ports), 2 x shared media pairs (including 2 x GE RJ45, 2 x GE SFP slots), 32GB onboard storage
| Capacity: | Gateway to gateway IPSec VPN Tunnels: 1500 ¦ Client to gateway IPSec VPN tunnels: 5000 ¦ Concurrent sessions: 2500000 ¦ New sessions per second: 22000 ¦ Concurrent SSL VPN users: 200 ¦ Firewall policies: 10000 ¦ Virtual domains: 10 ¦ User licences: unlimi |
|---|---|
| Compliant Standards: | UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A, ICSA Network IPS |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 29.1 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL |
| Features: | Firewall protection, content filtering, antivirus analysis, High Availability, Intrusion Prevention System (IPS), URL filtering, IPSec Virtual Private Network (VPN), anti-spam protection, anti-malware protection, application filtering |
| Form Factor: | External |
| Hard Drive: | SSD 16 GB x 1 |
| Height: | 4.4 cm |
| Humidity Range Operating: | 20 - 90% (non-condensing) |
| Interfaces: | 2 x 1000Base-T - RJ-45 (WAN) ¦ 16 x 1000Base-T - RJ-45 ¦ 1 x management - RJ-45 ¦ 2 x USB - Type A ¦ 1 x 1000Base-T - RJ-45 (DMZ) ¦ 1 x USB - Type B ¦ 2 x 1000Base-T - RJ-45 |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec |
| Performance: | Firewall throughput (1518-byte packet size): 2.5 Gbps ¦ Firewall throughput (512-byte packet size): 1 Gbps ¦ Firewall throughput (64-byte packet size): 200 Mbps ¦ Antivirus throughput (proxy): 300 Mbps ¦ Antivirus throughput: 700 Mbps ¦ IPS throughput: 95 |
| Power Consumption Operational: | 63.1 Watt |
| Power Device: | Internal power supply |
| Switching Protocol: | Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 4.3 kg |
| Width: | 43.1 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
20 x GE RJ45 ports (including 1 x DMZ port, 1 x Mgmt port, 2 x HA port, 16 x internal switch ports), 2 x shared media pairs (including 2 x GE RJ45, 2 x GE SFP slots), 32GB onboard storage
| Capacity: | Gateway to gateway IPSec VPN Tunnels: 1500 ¦ Client to gateway IPSec VPN tunnels: 5000 ¦ Concurrent sessions: 2500000 ¦ New sessions per second: 22000 ¦ Concurrent SSL VPN users: 200 ¦ Firewall policies: 10000 ¦ Virtual domains: 10 ¦ User licences: unlimi |
|---|---|
| Compliant Standards: | UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A, ICSA Network IPS |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth: | 29.1 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL |
| Features: | Firewall protection, content filtering, antivirus analysis, High Availability, Intrusion Prevention System (IPS), URL filtering, IPSec Virtual Private Network (VPN), anti-spam protection, anti-malware protection, application filtering |
| Form Factor: | External |
| Hard Drive: | SSD 16 GB x 1 |
| Height: | 4.4 cm |
| Humidity Range Operating: | 20 - 90% (non-condensing) |
| Interfaces: | 2 x 1000Base-T - RJ-45 (WAN) ¦ 16 x 1000Base-T - RJ-45 ¦ 1 x management - RJ-45 ¦ 2 x USB - Type A ¦ 1 x 1000Base-T - RJ-45 (DMZ) ¦ 1 x USB - Type B ¦ 2 x 1000Base-T - RJ-45 |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec |
| Performance: | Firewall throughput (1518-byte packet size): 2.5 Gbps ¦ Firewall throughput (512-byte packet size): 1 Gbps ¦ Firewall throughput (64-byte packet size): 200 Mbps ¦ Antivirus throughput (proxy): 300 Mbps ¦ Antivirus throughput: 700 Mbps ¦ IPS throughput: 95 |
| Power Consumption Operational: | 63.1 Watt |
| Power Device: | Internal power supply |
| Switching Protocol: | Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 4.3 kg |
| Width: | 43.1 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
