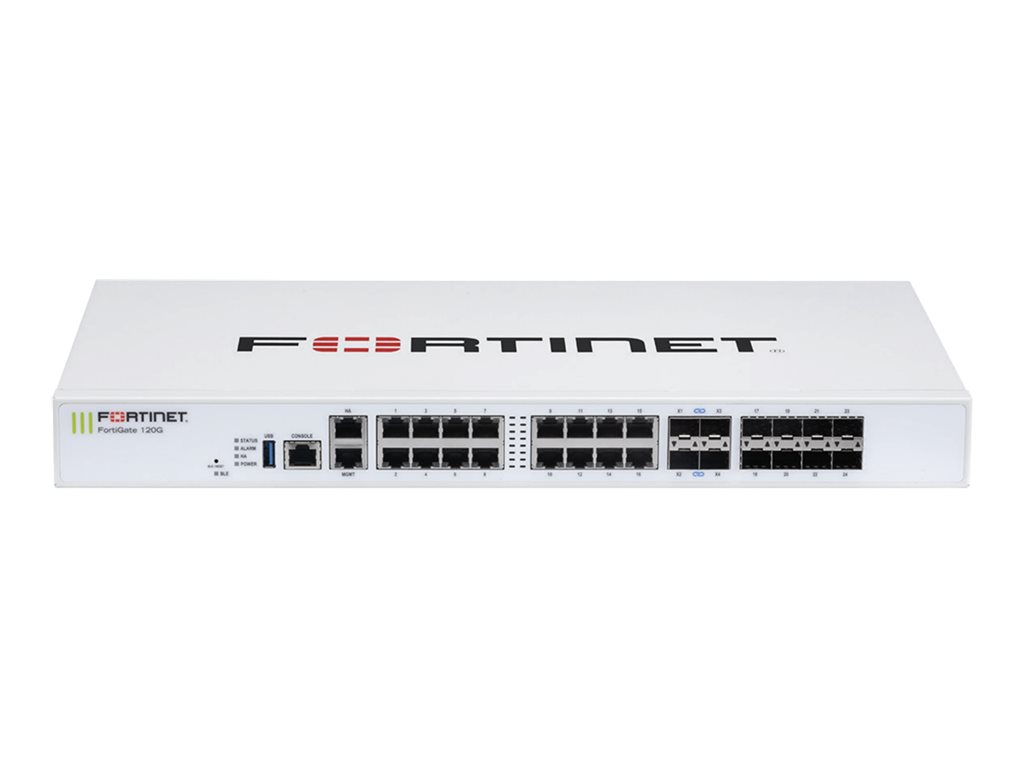

Fortinet FG-120G
18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 4 x 10GE SFP+ slots, SP5 hardware accelerated, dual AC power supplies
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 4 x 10GE SFP+ slots, SP5 hardware accelerated, dual AC power supplies
| Airflow Direction: | Side to back airflow |
|---|---|
| Cables Included: | 2 x power cable ¦ 1 x network cable |
| Capacity: | Concurrent sessions: 3000000 ¦ New sessions per second: 140000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 16000 ¦ Concurrent SSL VPN users: 500 ¦ SSL inspection CPS: 2100 ¦ SSL inspection |
| Compliant Standards: | UL, VCCI, BSMI, cUL, CB, FCC Part 15 B Class A, RCM, USGv6 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, Bluetooth LE |
| Depth: | 25.4 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL, 256-bit AES, 256-bit SHA, TLS 1.3 |
| Features: | VPN support, High Availability, Trusted Platform Module (TPM), reset button, CAPWAP support, SSL inspection |
| Form Factor: | Rack-mountable |
| Height: | 4.4 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 20 - 90% (non-condensing) |
| Included Accessories: | 4 rubber feet, 2 mounting brackets, 8 screws |
| Installed Qty: | 2 |
| Interfaces: | 16 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x 1000Base-T (HA) - RJ-45 ¦ 8 x 1000Base-X - SFP ¦ 4 x 10GBase-X (FortiLink) - SFP+ ¦ 1 x USB 3.0 - Type A ¦ 1 x console - RJ-45 |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | TCP/IP, UDP/IP, IPSec, HTTP, HTTPs, IPv6 |
| OS Provided: | FortiOS |
| Performance: | IPS throughput (enterprise traffic mix): 5.3 Gbps ¦ NGFW throughput: 3.1 Gbps ¦ Threat protection throughput: 2.8 Gbps ¦ Firewall throughput (1518-byte UDP): 39 Gbps ¦ Firewall throughput (512-byte UDP): 39 Gbps ¦ Firewall throughput (64-byte UDP): 28 Gbp |
| Power Consumption Operational: | 38 Watt |
| Power Device: | Internal power supply |
| Power Redundancy: | Yes |
| Processors Installed: | Fortinet FortiASIC SP5 |
| Remote Management Protocol: | HTTP, HTTPS |
| Status Indicators: | Power, status, alarm, HA |
| Version: | original |
| Voltage Required: | AC 100-120 V (50/60 Hz) |
| Weight: | 5.52 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 4 x 10GE SFP+ slots, SP5 hardware accelerated, dual AC power supplies
| Airflow Direction: | Side to back airflow |
|---|---|
| Cables Included: | 2 x power cable ¦ 1 x network cable |
| Capacity: | Concurrent sessions: 3000000 ¦ New sessions per second: 140000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 16000 ¦ Concurrent SSL VPN users: 500 ¦ SSL inspection CPS: 2100 ¦ SSL inspection |
| Compliant Standards: | UL, VCCI, BSMI, cUL, CB, FCC Part 15 B Class A, RCM, USGv6 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, Bluetooth LE |
| Depth: | 25.4 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL, 256-bit AES, 256-bit SHA, TLS 1.3 |
| Features: | VPN support, High Availability, Trusted Platform Module (TPM), reset button, CAPWAP support, SSL inspection |
| Form Factor: | Rack-mountable |
| Height: | 4.4 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 20 - 90% (non-condensing) |
| Included Accessories: | 4 rubber feet, 2 mounting brackets, 8 screws |
| Installed Qty: | 2 |
| Interfaces: | 16 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x 1000Base-T (HA) - RJ-45 ¦ 8 x 1000Base-X - SFP ¦ 4 x 10GBase-X (FortiLink) - SFP+ ¦ 1 x USB 3.0 - Type A ¦ 1 x console - RJ-45 |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | TCP/IP, UDP/IP, IPSec, HTTP, HTTPs, IPv6 |
| OS Provided: | FortiOS |
| Performance: | IPS throughput (enterprise traffic mix): 5.3 Gbps ¦ NGFW throughput: 3.1 Gbps ¦ Threat protection throughput: 2.8 Gbps ¦ Firewall throughput (1518-byte UDP): 39 Gbps ¦ Firewall throughput (512-byte UDP): 39 Gbps ¦ Firewall throughput (64-byte UDP): 28 Gbp |
| Power Consumption Operational: | 38 Watt |
| Power Device: | Internal power supply |
| Power Redundancy: | Yes |
| Processors Installed: | Fortinet FortiASIC SP5 |
| Remote Management Protocol: | HTTP, HTTPS |
| Status Indicators: | Power, status, alarm, HA |
| Version: | original |
| Voltage Required: | AC 100-120 V (50/60 Hz) |
| Weight: | 5.52 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
