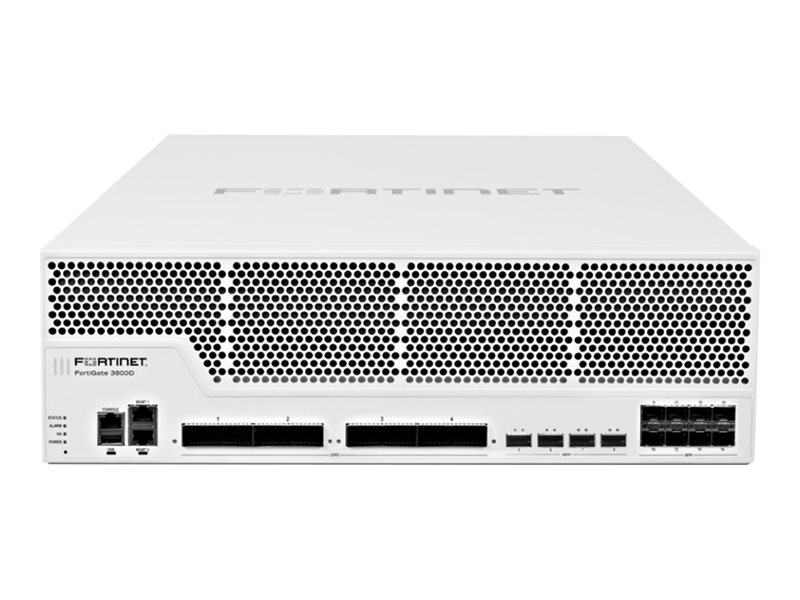

Fortinet FortiGate 3800D-DC - UTM Bundle - security appliance - with 5 years FortiCare 24X7 Comprehensive Support + 5 years FortiGuard - 40 Gigabit LAN, 100 Gigabit Ethernet - DC power - 3U - rack-mountable
| Bundled Services: | 5 years FortiCare 24X7 Comprehensive Support + 5 years FortiGuard |
|---|---|
| Capacity: | New sessions per second: 480000 ¦ Concurrent sessions: 95000000 ¦ Firewall policies: 200000 ¦ Gateway to gateway IPSecVPN Tunnels: 400000 ¦ Client to gateway IPSec VPN tunnels: 200000 ¦ Concurrent SSL VPN users: 30000 ¦ Virtual domains: 500 ¦ Number of F |
| Compliant Standards: | UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A, IPv6 Ready, USGv6, ICSA SSL-VPN, ICSA IPS |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Depth: | 67.3 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL |
| Features: | Firewall protection, VPN support, traffic shaping, manageable, IPv6 support, antivirus analysis, High Availability, Intrusion Prevention System (IPS), IPv4 support, checksum offload support |
| Form Factor: | Rack-mountable |
| Hard Drive: | 960 GB |
| Height: | 13.3 cm |
| Height (Rack Units): | 3U |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | 2 SR SFP+ transceivers |
| Installed Qty: | 2 |
| Interfaces: | 1 x USB ¦ 2 x 1000Base-T (management) - RJ-45 ¦ 1 x console ¦ 4 x 100Gb Ethernet - CFP2 ¦ 4 x 40Gb Ethernet - QSFP+ ¦ 8 x 10Gb Ethernet - SFP+ |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | TCP/IP, UDP/IP, IPSec |
| Performance: | Firewall throughput (1518-byteUDP): 320 Gbps ¦ Firewall throughput (512-byte UDP): 300 Gbps ¦ Firewall throughput (64-byte UDP): 150 Gbps ¦ IPS throughput: 30 Gbps ¦ Firewall latency (64-byte UDP): 5 µs ¦ Firewall throughput: 262.5 Mpps ¦ VPN throughput |
| Power Consumption Operational: | 537.6 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Yes |
| Processors Installed: | Fortinet FortiASIC CP8/NP6 |
| Version: | original |
| Voltage Required: | DC 40 - 72 V |
| Weight: | 23 kg |
| Width: | 44.2 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs@fortinet.com |
| EU Data-Act-Url: | https://www.fortinet.com/de/corporate/about-us/gdpr |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
