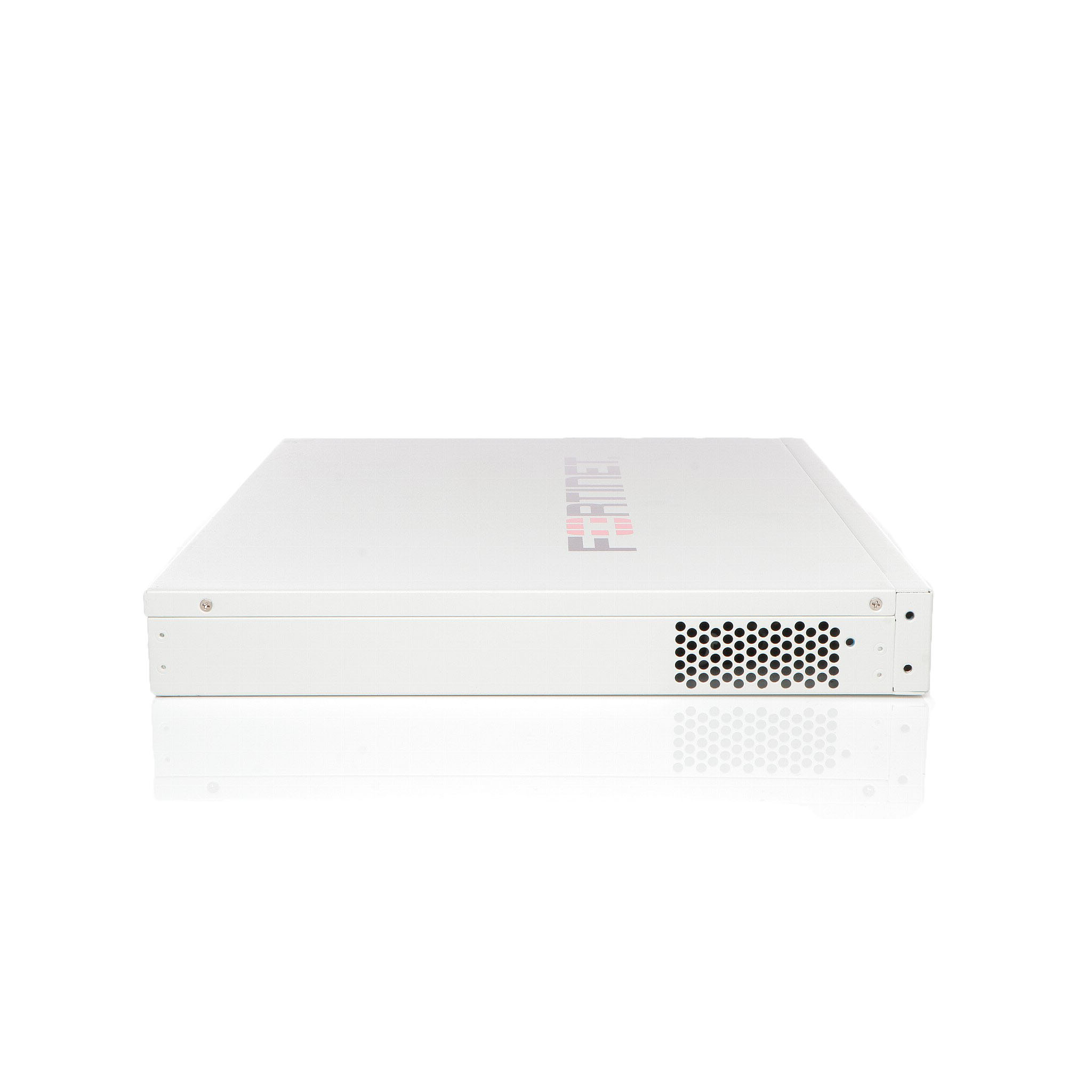

Fortinet FG-400D
10 x GE RJ45 ports, 8 x GE SFP slots, SPU NP6 and CP8 hardware accelerated.
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
10 x GE RJ45 ports, 8 x GE SFP slots, SPU NP6 and CP8 hardware accelerated.
| Capacity: | Client to gateway IPSec VPN tunnels: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Concurrent TCP sessions: 200000 ¦ New TCP sessions per second: 200000 ¦ Firewall policies: 10000 ¦ Concurrent SSL VPN users: 500 ¦ Virtual domains: 10 ¦ Number of Fo |
|---|---|
| Compliant Standards: | UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Intrusion Detection, ICSA Antivirus, CB, FCC Part 15 A |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet |
| Depth: | 32.2 cm |
| Device Type: | Security appliance |
| Features: | Firewall protection, VPN support, content filtering, antivirus analysis, Intrusion Prevention System (IPS), URL filtering |
| Form Factor: | Rack-mountable |
| Height: | 4.4 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 20 - 90% (non-condensing) |
| Included Accessories: | 2 SFP transceivers |
| Installed Qty: | 1 |
| Interfaces: | 8 x 1000Base-T - RJ-45 ¦ 8 x 1000Base-X - SFP (mini-GBIC) ¦ 2 x USB - Type A ¦ 1 x USB - Type B ¦ 1 x console - RJ-45 ¦ 2 x 1000Base-T (management) - RJ-45 |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Performance: | Firewall throughput (1518-byte packet size): 16 Gbps ¦ Firewall throughput (512-byte packet size): 16 Gbps ¦ Firewall throughput (64-byte packet size): 16 Gbps ¦ IPS throughput: 2.8 Gbps ¦ VPN throughput (512-bit IPSec): 14 Gbps ¦ Antivirus throughput: 1. |
| Power Consumption Operational: | 113 Watt |
| Power Device: | Internal power supply |
| Processors Installed: | Fortinet FortiASIC CP8/NP6 |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 4.8 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
10 x GE RJ45 ports, 8 x GE SFP slots, SPU NP6 and CP8 hardware accelerated.
| Capacity: | Client to gateway IPSec VPN tunnels: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Concurrent TCP sessions: 200000 ¦ New TCP sessions per second: 200000 ¦ Firewall policies: 10000 ¦ Concurrent SSL VPN users: 500 ¦ Virtual domains: 10 ¦ Number of Fo |
|---|---|
| Compliant Standards: | UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Intrusion Detection, ICSA Antivirus, CB, FCC Part 15 A |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet |
| Depth: | 32.2 cm |
| Device Type: | Security appliance |
| Features: | Firewall protection, VPN support, content filtering, antivirus analysis, Intrusion Prevention System (IPS), URL filtering |
| Form Factor: | Rack-mountable |
| Height: | 4.4 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 20 - 90% (non-condensing) |
| Included Accessories: | 2 SFP transceivers |
| Installed Qty: | 1 |
| Interfaces: | 8 x 1000Base-T - RJ-45 ¦ 8 x 1000Base-X - SFP (mini-GBIC) ¦ 2 x USB - Type A ¦ 1 x USB - Type B ¦ 1 x console - RJ-45 ¦ 2 x 1000Base-T (management) - RJ-45 |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Performance: | Firewall throughput (1518-byte packet size): 16 Gbps ¦ Firewall throughput (512-byte packet size): 16 Gbps ¦ Firewall throughput (64-byte packet size): 16 Gbps ¦ IPS throughput: 2.8 Gbps ¦ VPN throughput (512-bit IPSec): 14 Gbps ¦ Antivirus throughput: 1. |
| Power Consumption Operational: | 113 Watt |
| Power Device: | Internal power supply |
| Processors Installed: | Fortinet FortiASIC CP8/NP6 |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 4.8 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
