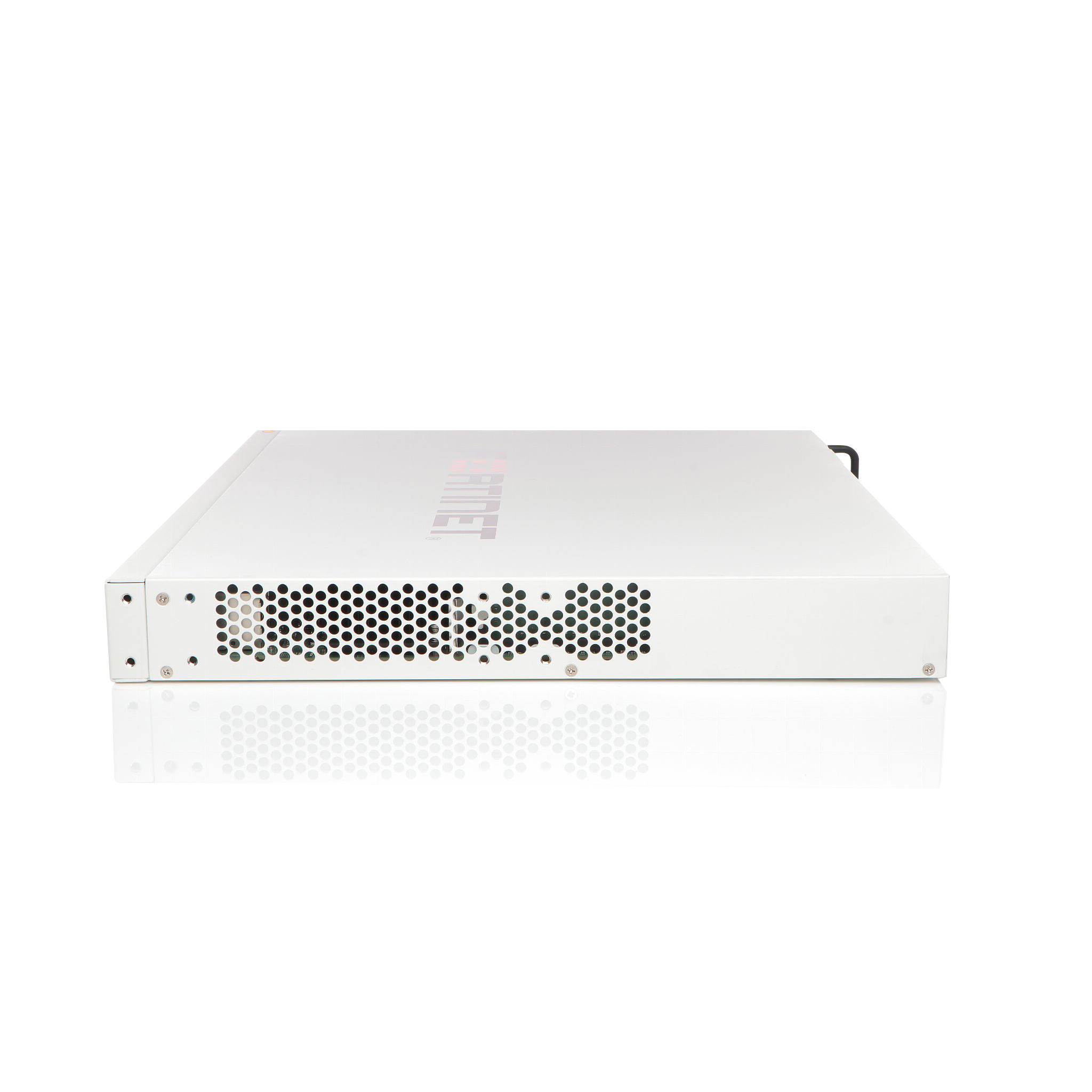

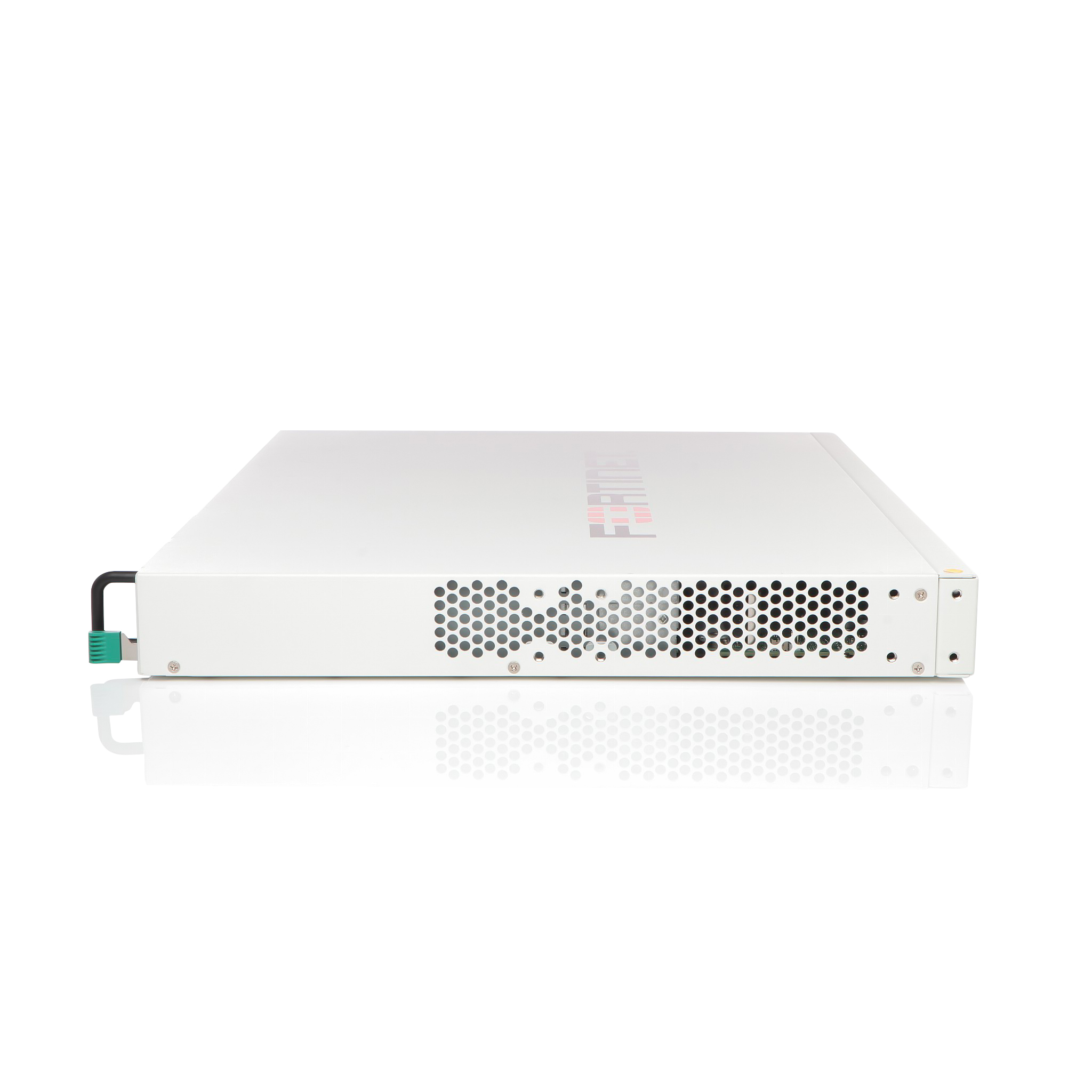

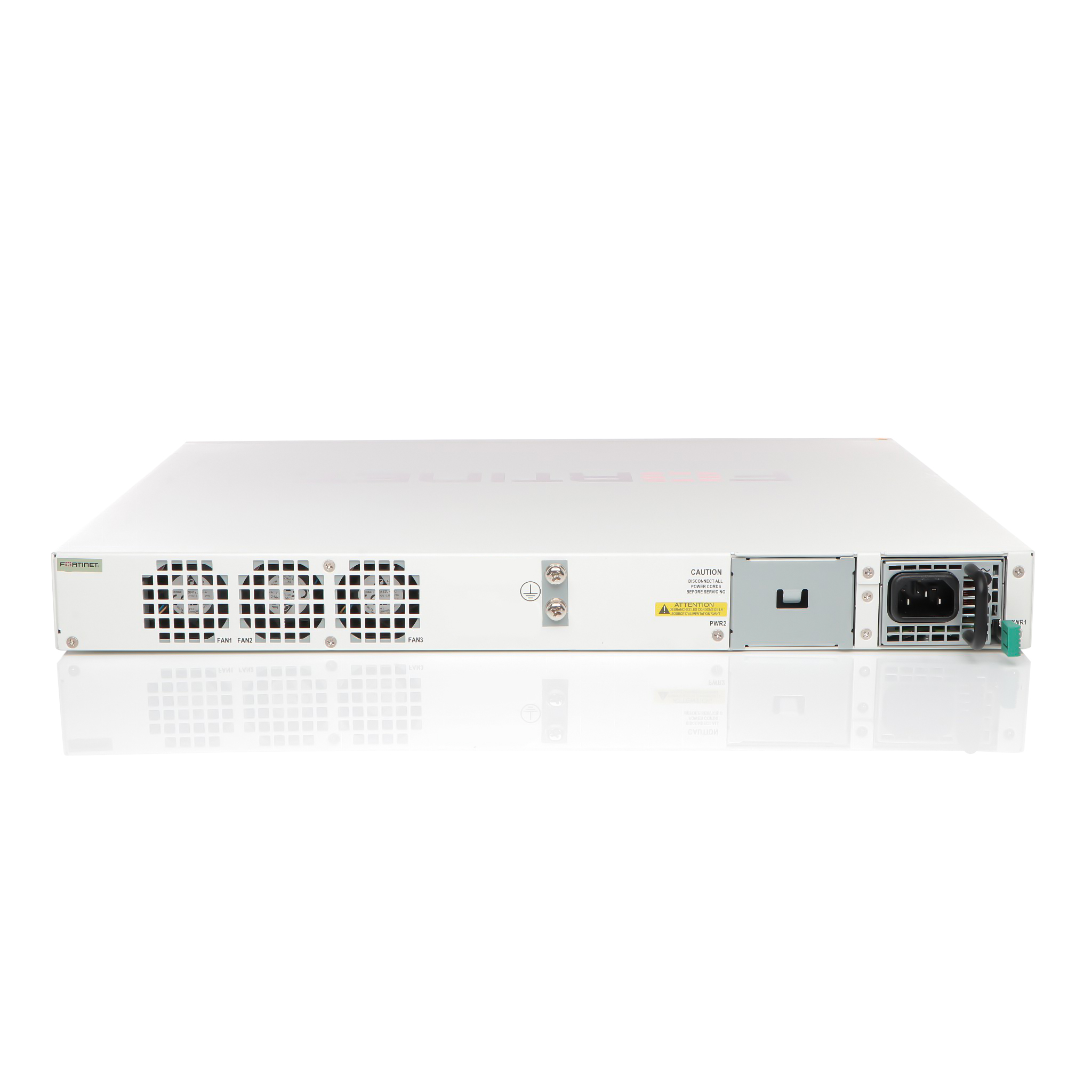

Fortinet FG-500E-BDL-974-60
Fortinet FortiGate 500E - Enterprise Bundle - security appliance - with 5 years FortiCare 24X7 Service + 5 years FortiGuard - 10 GigE - 1U - rack-mountable
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Fortinet FortiGate 500E - Enterprise Bundle - security appliance - with 5 years FortiCare 24X7 Service + 5 years FortiGuard - 10 GigE - 1U - rack-mountable
| Built-in Devices: | Led panel |
|---|---|
| Bundled Services: | 5 years FortiCare 24X7 Service + 5 years FortiGuard |
| Capacity: | Concurrent TCP sessions: 8000000 ¦ New TCP sessions per second: 300000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 50000 ¦ Concurrent SSL VPN users: 500 ¦ Virtual domains: 10 ¦ Number of F |
| Compliant Standards: | UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, USGv6, ICSA SSL-VPN, ICSA IPS |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet |
| Depth: | 38 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL, 256-bit AES, 256-bit SHA, TLS 1.2 |
| Features: | Firewall protection, switching, routing, VPN support, traffic shaping, content filtering, manageable, IPv6 support, High Availability, Intrusion Prevention System (IPS), IPv4 support, CAPWAP support, checksum offload support, anti-virus protection |
| Form Factor: | Rack-mountable |
| Height: | 4.5 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Included Accessories: | 2 SX SFP transceivers |
| Interfaces: | 8 x 1000Base-T - RJ-45 ¦ 8 x 1000Base-T - SFP (mini-GBIC) ¦ 2 x 1000Base-T (management) - RJ-45 ¦ 2 x 10Gb Ethernet - SFP+ ¦ 2 x USB - Type A ¦ 1 x console - RJ-45 |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | TCP/IP, UDP/IP, IPSec, SCTP |
| OS Provided: | FortiOS |
| Performance: | Firewall throughput (1518-byte UDP): 36 Gbps ¦ Firewall throughput (512-byte UDP): 36 Gbps ¦ Firewall throughput (64-byte UDP): 32 Gbps ¦ Firewall latency (64-byte UDP): 2 µs ¦ Firewall throughput: 33 Mpps ¦ VPN throughput (512-bit IPSec): 20 Gbps ¦ VPN t |
| Power Consumption Operational: | 100 Watt |
| Power Device: | Internal power supply |
| Processors Installed: | Fortinet FortiASIC CP9/NP6 |
| Remote Management Protocol: | HTTP, CLI |
| Status Indicators: | Power, status, alarm, HA |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 7.3 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
