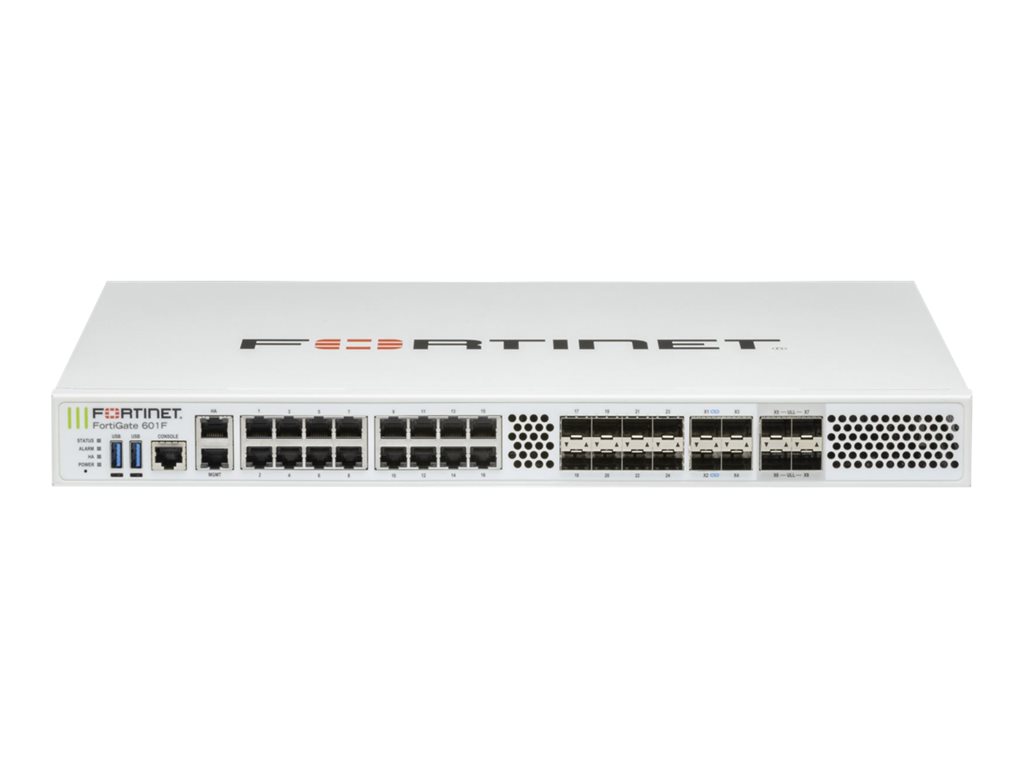

Fortinet FG-600F-BDL-950-36
FortiGate-600F Hardware plus 3 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP).
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
FortiGate-600F Hardware plus 3 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP).
| Airflow Direction: | Front and side to back |
|---|---|
| Bundled Services: | 3 years 24x7 FortiCare Support + 3 years FortiGuard Unified Threat Protection (UTP) |
| Capacity: | Concurrent TCP sessions: 8000000 ¦ New TCP sessions per second: 550000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 50000 ¦ Concurrent SSL VPN users: 10000 ¦ SSL inspection CPS: 7500 ¦ SSL |
| Compliant Standards: | UL, VCCI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A, RCM, ICSA SSL-VPN, ICSA IPS, ICSA IPv6, ICSA USGv6 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Depth: | 38 cm |
| Designed For: | P/N: FN-TRAN-GC, FN-TRAN-LX, FN-TRAN-SFP+ER, FN-TRAN-SFP28-LR, FN-TRAN-SFP28-SR, FN-TRAN-SX |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL, 256-bit AES, 256-bit SHA, TLS 1.3 |
| Features: | Firewall protection, VPN support, traffic shaping, manageable, High Availability, Intrusion Prevention System (IPS), URL filtering, anti-malware protection, Trusted Platform Module (TPM), clustering technology, CAPWAP support, checksum offload support, an |
| Form Factor: | Rack-mountable |
| Height: | 4.445 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Included Accessories: | 2 SX SFP transceivers |
| Interfaces: | 16 x 1000Base-T - RJ-45 ¦ 8 x 1000Base-X - SFP (mini-GBIC) ¦ 4 x 10Gb Ethernet - SFP+ ¦ 4 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x 1000Base-T (HA) - RJ-45 ¦ 2 x USB - Type A ¦ 1 x consol |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | TCP/IP, UDP/IP, IPSec, SCTP, HTTP, HTTPs, IPv4, IPv6 |
| OS Provided: | FortiOS |
| Performance: | IPS throughput (enterprise traffic mix): 14 Gbps ¦ NGFW throughput: 11.5 Gbps ¦ Threat protection throughput: 10.5 Gbps ¦ Firewall throughput (1518-byte UDP): 139Gbps ¦ Firewall throughput (512-byte UDP): 137.5Gbps ¦ Firewall throughput (64-byte UDP): 70 |
| Power Consumption Operational: | 169 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Yes |
| Processors Installed: | Fortinet FortiASIC CP9/NP7 |
| Remote Management Protocol: | HTTP, HTTPS |
| Status Indicators: | Power, status, alarm, HA |
| Version: | original |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Weight: | 7.1 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
FortiGate-600F Hardware plus 3 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP).
| Airflow Direction: | Front and side to back |
|---|---|
| Bundled Services: | 3 years 24x7 FortiCare Support + 3 years FortiGuard Unified Threat Protection (UTP) |
| Capacity: | Concurrent TCP sessions: 8000000 ¦ New TCP sessions per second: 550000 ¦ Firewall policies: 10000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Client to gateway IPSec VPN tunnels: 50000 ¦ Concurrent SSL VPN users: 10000 ¦ SSL inspection CPS: 7500 ¦ SSL |
| Compliant Standards: | UL, VCCI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A, RCM, ICSA SSL-VPN, ICSA IPS, ICSA IPv6, ICSA USGv6 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Depth: | 38 cm |
| Designed For: | P/N: FN-TRAN-GC, FN-TRAN-LX, FN-TRAN-SFP+ER, FN-TRAN-SFP28-LR, FN-TRAN-SFP28-SR, FN-TRAN-SX |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL, 256-bit AES, 256-bit SHA, TLS 1.3 |
| Features: | Firewall protection, VPN support, traffic shaping, manageable, High Availability, Intrusion Prevention System (IPS), URL filtering, anti-malware protection, Trusted Platform Module (TPM), clustering technology, CAPWAP support, checksum offload support, an |
| Form Factor: | Rack-mountable |
| Height: | 4.445 cm |
| Height (Rack Units): | 1U |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Included Accessories: | 2 SX SFP transceivers |
| Interfaces: | 16 x 1000Base-T - RJ-45 ¦ 8 x 1000Base-X - SFP (mini-GBIC) ¦ 4 x 10Gb Ethernet - SFP+ ¦ 4 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x 1000Base-T (HA) - RJ-45 ¦ 2 x USB - Type A ¦ 1 x consol |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | TCP/IP, UDP/IP, IPSec, SCTP, HTTP, HTTPs, IPv4, IPv6 |
| OS Provided: | FortiOS |
| Performance: | IPS throughput (enterprise traffic mix): 14 Gbps ¦ NGFW throughput: 11.5 Gbps ¦ Threat protection throughput: 10.5 Gbps ¦ Firewall throughput (1518-byte UDP): 139Gbps ¦ Firewall throughput (512-byte UDP): 137.5Gbps ¦ Firewall throughput (64-byte UDP): 70 |
| Power Consumption Operational: | 169 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Yes |
| Processors Installed: | Fortinet FortiASIC CP9/NP7 |
| Remote Management Protocol: | HTTP, HTTPS |
| Status Indicators: | Power, status, alarm, HA |
| Version: | original |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Weight: | 7.1 kg |
| Width: | 43.2 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
