Fortinet FG-60F

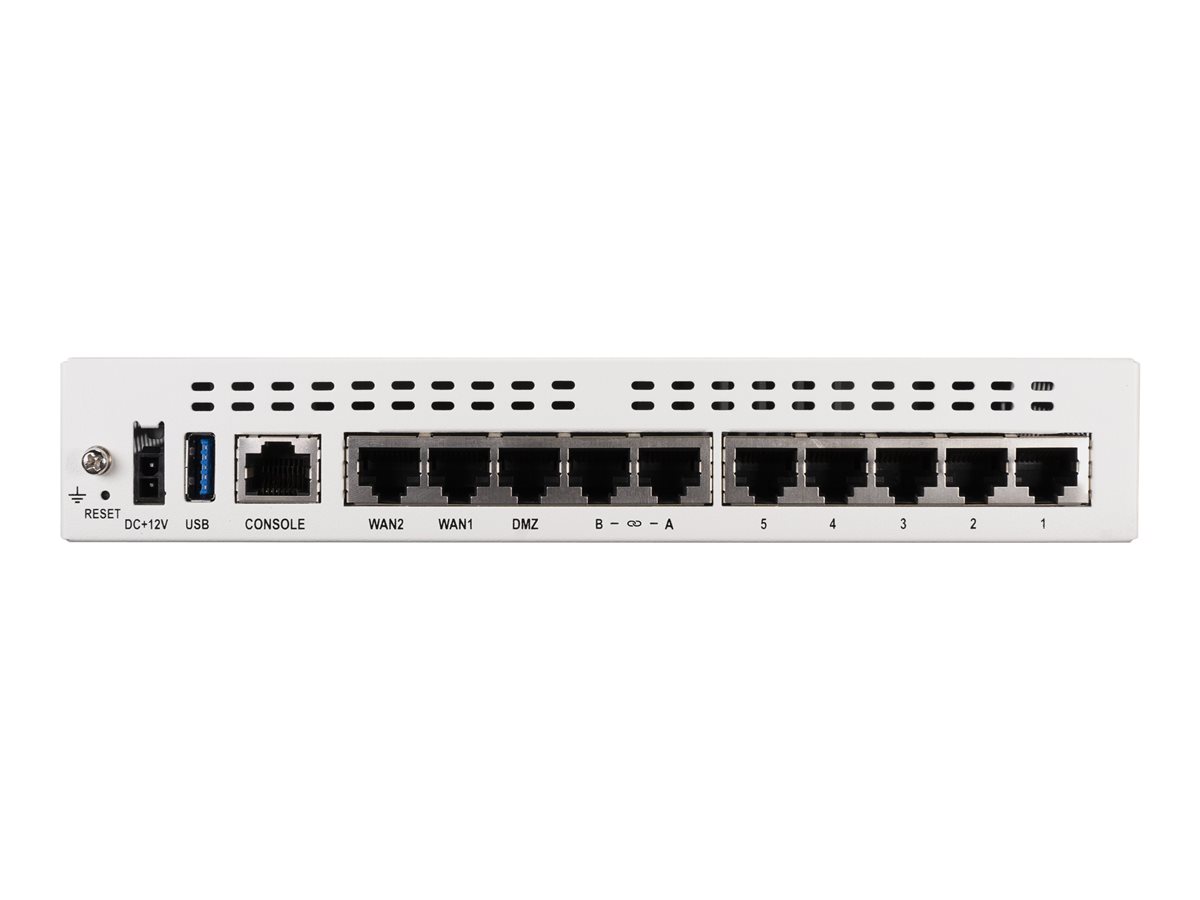

10 x GE RJ45 ports (including 7 x Internal Ports, 2 x WAN Ports, 1 x DMZ Port).
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
10 x GE RJ45 ports (including 7 x Internal Ports, 2 x WAN Ports, 1 x DMZ Port).
| Capacity: | Latency: 4 µs ¦ Concurrent sessions: 700000 ¦ New sessions: 35000 ¦ Firewall policies: 5000 ¦ IPSec VPN tunnels: 200 ¦ Virtual domains: 10 ¦ Number of FortiSwitches: 16 ¦ Number of FortiToken devices: 500 |
|---|---|
| Compliant Standards: | UL, VCCI, C-Tick, cUL, CB, FCC Part 15 Class B |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Depth: | 16 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL, TLS 1.3 |
| Features: | Firewall protection, antivirus analysis, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), fanless, web threat protection |
| Form Factor: | Desktop |
| Height: | 3.8 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Installed Qty: | 1 |
| Interfaces: | 5 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 (WAN / DMZ) ¦ 1 x console - RJ-45 ¦ 1 x USB 3.0 - Type A |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec |
| OS Provided: | FortiOS |
| Performance: | VPN throughput (512-bit IPSec): 6.5 Gbps ¦ NGFW throughput: 1 Gbps ¦ SSL inspection throughput: 900 Mbps ¦ IPS throughput: 1.4 Gbps ¦ Firewall throughput: 10 Gbps ¦ Threat protection throughput: 700 Mbps ¦ Firewall throughput (1518-byte UDP): 10 Gbps ¦ Fi |
| Power Consumption Operational: | 18.5 Watt |
| Power Device: | External power adapter |
| Processors Installed: | 1 x Fortinet FortiASIC SOC4 |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Weight: | 900 g |
| Width: | 21.6 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| Warnings: | Warnings Firewalls International.pdf |
| Safety instructions: | Safety instructions Firewalls International.pdf |
10 x GE RJ45 ports (including 7 x Internal Ports, 2 x WAN Ports, 1 x DMZ Port).
| Capacity: | Latency: 4 µs ¦ Concurrent sessions: 700000 ¦ New sessions: 35000 ¦ Firewall policies: 5000 ¦ IPSec VPN tunnels: 200 ¦ Virtual domains: 10 ¦ Number of FortiSwitches: 16 ¦ Number of FortiToken devices: 500 |
|---|---|
| Compliant Standards: | UL, VCCI, C-Tick, cUL, CB, FCC Part 15 Class B |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Depth: | 16 cm |
| Device Type: | Security appliance |
| Encryption Algorithm: | SSL, TLS 1.3 |
| Features: | Firewall protection, antivirus analysis, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), fanless, web threat protection |
| Form Factor: | Desktop |
| Height: | 3.8 cm |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Installed Qty: | 1 |
| Interfaces: | 5 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 (WAN / DMZ) ¦ 1 x console - RJ-45 ¦ 1 x USB 3.0 - Type A |
| Manufacturer: | Fortinet |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPSec |
| OS Provided: | FortiOS |
| Performance: | VPN throughput (512-bit IPSec): 6.5 Gbps ¦ NGFW throughput: 1 Gbps ¦ SSL inspection throughput: 900 Mbps ¦ IPS throughput: 1.4 Gbps ¦ Firewall throughput: 10 Gbps ¦ Threat protection throughput: 700 Mbps ¦ Firewall throughput (1518-byte UDP): 10 Gbps ¦ Fi |
| Power Consumption Operational: | 18.5 Watt |
| Power Device: | External power adapter |
| Processors Installed: | 1 x Fortinet FortiASIC SOC4 |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Weight: | 900 g |
| Width: | 21.6 cm |
| GPSR - economic actor: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
|---|---|
| GPSR - product manufacturer: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
| GPSR - EU responsible person: | Fortinet, Deutschland, Weihenstephaner Str. 12, München, 81673, cs @ fortinet.com |
